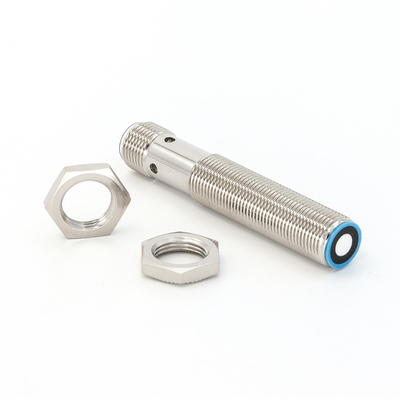

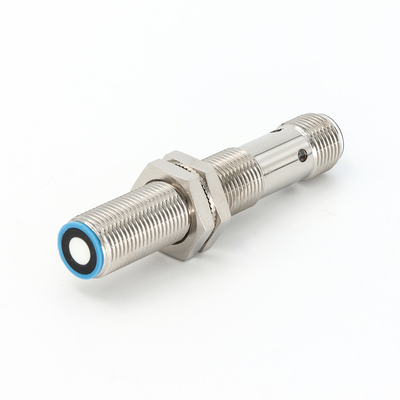

U12 Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC Detect 20-120mm

5 pieces
MOQ
Negotiable
Price
U12 Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC Detect 20-120mm
Features Gallery Product Description Chat Now
Features
Specifications
Features: Easy To Instal
Series: U12 Serial
Type: Ultrasonic Sensor
Detection Range: 20-120mm
Blind Zone: 0-20mm
Resolution: 0.1mm
Repeatability: ±0.15% F.S.
Response Time: 18ms
Highlight:

U12 Industrial Ultrasonic Sensors NPN

,

U12 Industrial Ultrasonic Sensors PNP

,

Detect 120mm Industrial Ultrasonic Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U12-D120N(P)1T-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
U12 Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC Detect 20-120mm
Product Specifications
Attribute Value
Series U12 Serial
Features Easy to install
Type Ultrasonic Sensor
Detection Range 20-120mm
Blind zone 0-20mm
Resolution 0.1mm
Repeatability ±0.15% F.S.
Response time 18ms
Product Description
U12 Ultrasonic Sensor NPN PNP Switching Output NO/NC Detect 20-120mm
Main Features
  • M12 installation threaded sleeve, the shortest full length is only 57mm
  • Small blind zone, small sound cone, suitable for close-range fine detection
Basic Features
  • 1 pc NPN or PNP switching output
  • Support digital RS485, Modbus-RTU standard protocol communication
  • Analog voltage output 0-10V or analog current output 4-20 mA
  • Realize detection distance learning function through white lines
  • Temperature compensation
  • Standard operating voltage DC 10-30V
Model U12-D120N(P)1T-R00A
Detection range 20-120mm
Blind zone 0-20mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 18ms
Switching hysteresis 1mm
Switching frequency 55Hz
Initialization time < 500ms
Supply voltage 10-30V DC, reverse-polarity protection
Red LED no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection 200mA, Red LED and Green LED flashing at the same time
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 4pin, M12 connector
Ambient temperature -25℃ ~ +70℃(248~343K)
Storage temperature -40℃ ~ +85℃(233~358K)
Weight 16g
Output type N1: 1 NPN switching output NO/NC
P1: 1 PNP switching output NO/NC
Dimensional Drawing
U12 Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC Detect 20-120mm 0
