Red LED Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC IP67
  • Name
  • Name

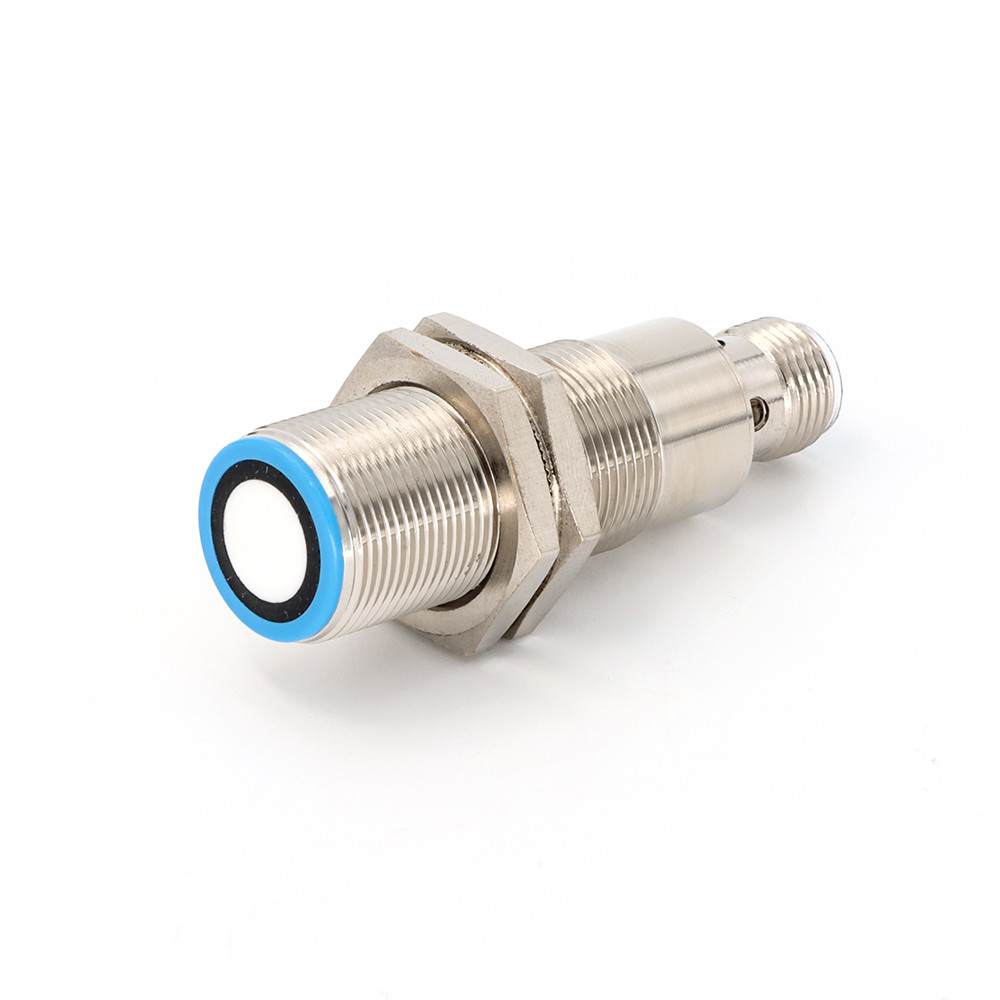

Red LED Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC IP67

Brand Name: KRONZ
Model Number: U18-D300N(P)2T-R00A
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Detection Range:
30-300mm
Blind Zone:
0-30mm
Repeatability:
±0.15% F.S.
Response Time:
22ms
Switching Hysteresis:
2mm
Switching Frequency:
45Hz
Supply Ability:
100000 pieces per month
Highlight:

Red LED Industrial Ultrasonic Sensors NPN

,

Industrial Ultrasonic Sensors IP67

,

Industrial Ultrasonic Sensors PNP

Product Description
Red LED Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC IP67
Key Specifications
Attribute Value
Detection range 30-300mm
Blind zone 0-30mm
Repeatability ±0.15% F.S.
Response time 22ms
Switching hysteresis 2mm
Switching frequency 45Hz
Product Features

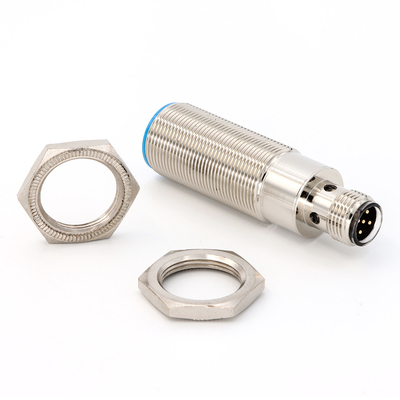

  • M18 installation threaded sleeve for easy installation
  • 1 NPN or PNP switching output
  • Supports digital RS485, Modbus-RTU standard protocol communication
  • Analog voltage output 0-10V or analog current output 4-20 mA
  • Implements detection distance learning function through gray lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model: U18-D300N(P)2T-R00A
Detection range: 30-300mm
Blind zone: 0-30mm
Resolution: 0.1mm
Repeatability: ±0.15%F.S.
Accuracy: ±1% (built-in temperature drift compensation)
Response time: 22ms
Switching hysteresis: 2mm
Switching frequency: 45Hz
Initialization time: < 500ms
Supply voltage: 10-30V DC, reverse-polarity protection
Red LED indicator: No object detected: Lights up, Teaching-in when no object detected: Flashes
Green LED indicator: Object detected: Lights up, Teaching-in when object detected: Flashes
Overcurrent protection: 200mA, Red LED and Green LED flashing simultaneously
Load impedance: I/ < 300 Ohm, U/ > 1k Ohm
No-load current: ≤30mA
Input type: Teach-in and synchronization
Material: Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating: IP67
Connection type: 5pin, M12 connector
Ambient temperature: -25℃ ~ +70℃ (248~343K)
Storage temperature: -40℃ ~ +85℃ (233~358K)
Weight: 35g
Output type: N2: 1 NPN switching output NO/NC
P2: 1 PNP switching output NO/NC
Dimensional Drawing
Red LED Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC IP67 0
