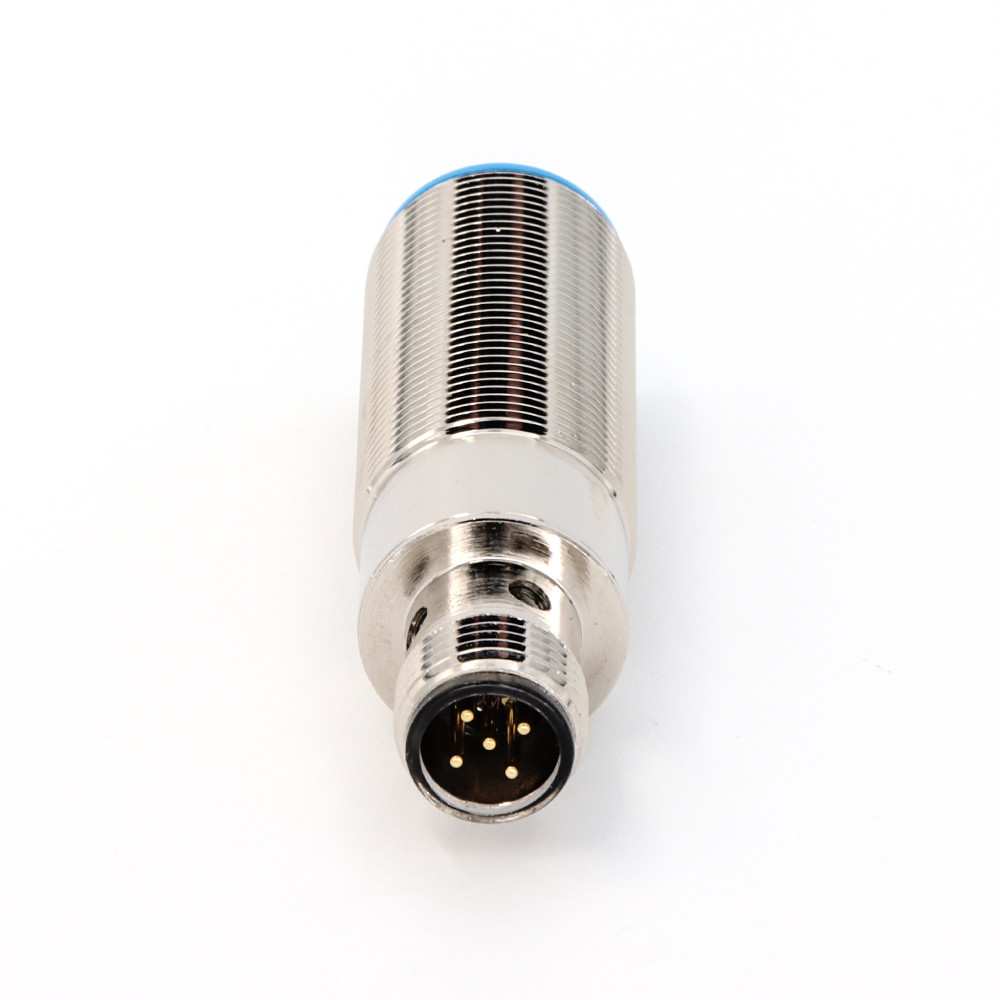

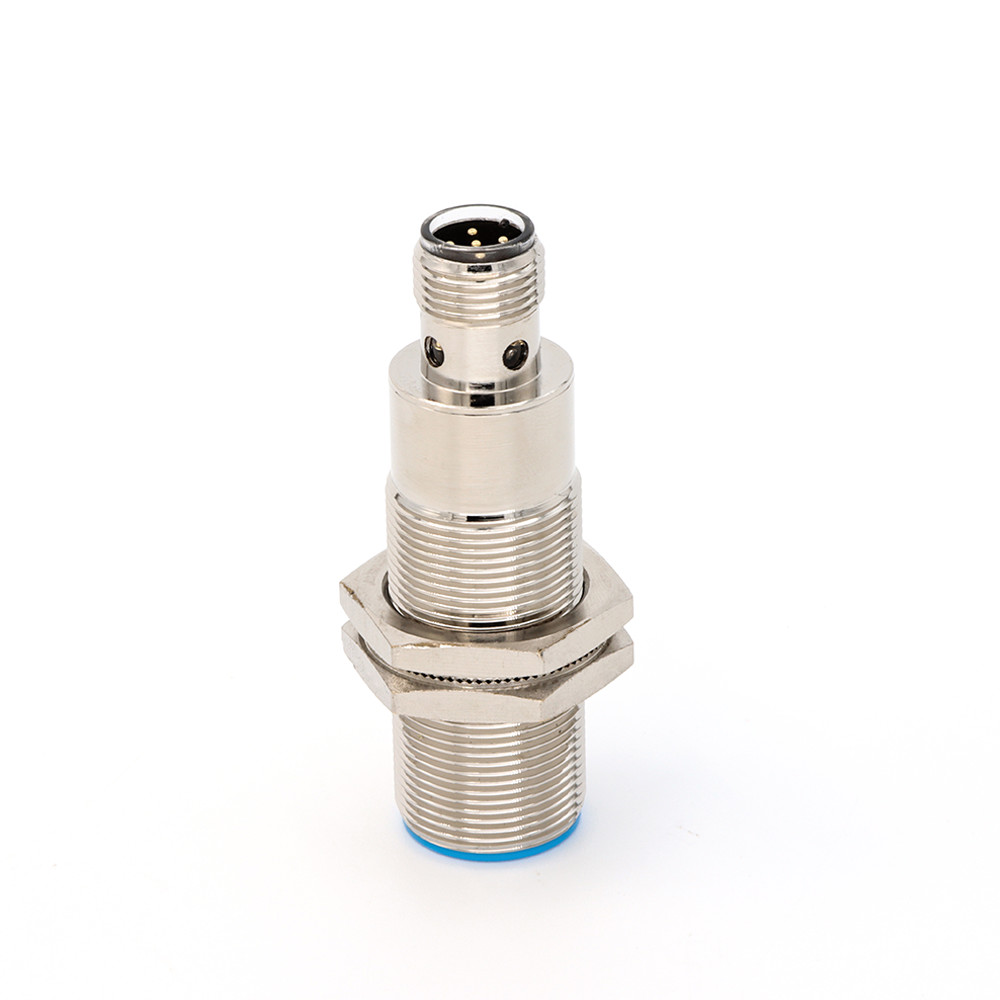

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors

Brand Name: KRONZ
Model Number: U18-D300N(P)32T-R00A
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Detection Range:
30-300mm
Resolution:
0.1mm
Switching Hysteresis:
2mm
Switching Frequency:
45Hz
Supply Voltage:
10-30VDC
Load Impedance:
I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
Supply Ability:
100000 pieces per month
Highlight:

Ultrasonic Sensor NPN 45Hz

,

U18 Ultrasonic Sensor PNP

,

U18 Ultrasonic Sensor PNP 200mA

Product Description
U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors
Key Specifications
Attribute Value
Detection range 30-300mm
Resolution 0.1mm
Switching hysteresis 2mm
Switching frequency 45Hz
Supply voltage 10-30VDC
Load impedance I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
Product Features
  • M18 installation threaded sleeve for easy mounting
  • Available with NPN or PNP switching output
  • Supports digital RS485, Modbus-RTU standard protocol communication
  • Analog voltage output (0-10V) or current output (4-20mA)
  • Distance learning function via gray lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model: U18-D300N(P)32T-R00A
Detection range: 30-300mm
Blind zone: 0-30mm
Resolution: 0.1mm
Repeatability: ±0.15%F.S.
Accuracy: ±1% (with temperature compensation)
Response time: 22ms
Switching hysteresis: 2mm
Switching frequency: 45Hz
Initialization time: ＜ 500ms
Supply voltage: 10-30V DC with reverse-polarity protection
LED indicators: Red (no object detected), Green (object detected)
Overcurrent protection: 200mA
No-load current: ≤30mA
Input type: Teach-in and synchronization
Material: Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating: IP67
Connection type: 5pin, M12 connector
Ambient temperature: -25℃ ~ +70℃
Storage temperature: -40℃ ~ +85℃
Weight: 35g
Output type: N32: 2 NPN switching output NO/NC, P32: 2 PNP switching output NO/NC
Dimensional Drawing
U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors 0
