Name: U18 Ultrasonic Sensor NPN PNP Switching Output 50-500mm Detection Range
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: U18-D500N(P)2T-R00A
Availability: InStock

U18 Ultrasonic Sensor NPN PNP Switching Output 50-500mm Detection Range

10 pieces

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Easy To Instal

Product Name: U18 Ultrasonic Sensors

Enclosure Rating: IP67

Input Type: Teach-in And Synchronization

Response Time: 32ms

Supply Voltage: 10-30V DC

Repeatablility: ±0.15% F.S.

Accuracy: ±1%(built-in Temperature Drift Compensation)

Highlight:

500mm Detection Ultrasonic Sensor NPN

50mm Detection Ultrasonic Sensor NPN

Ultrasonic Sensor PNP Switching Output

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: U18-D500N(P)2T-R00A

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

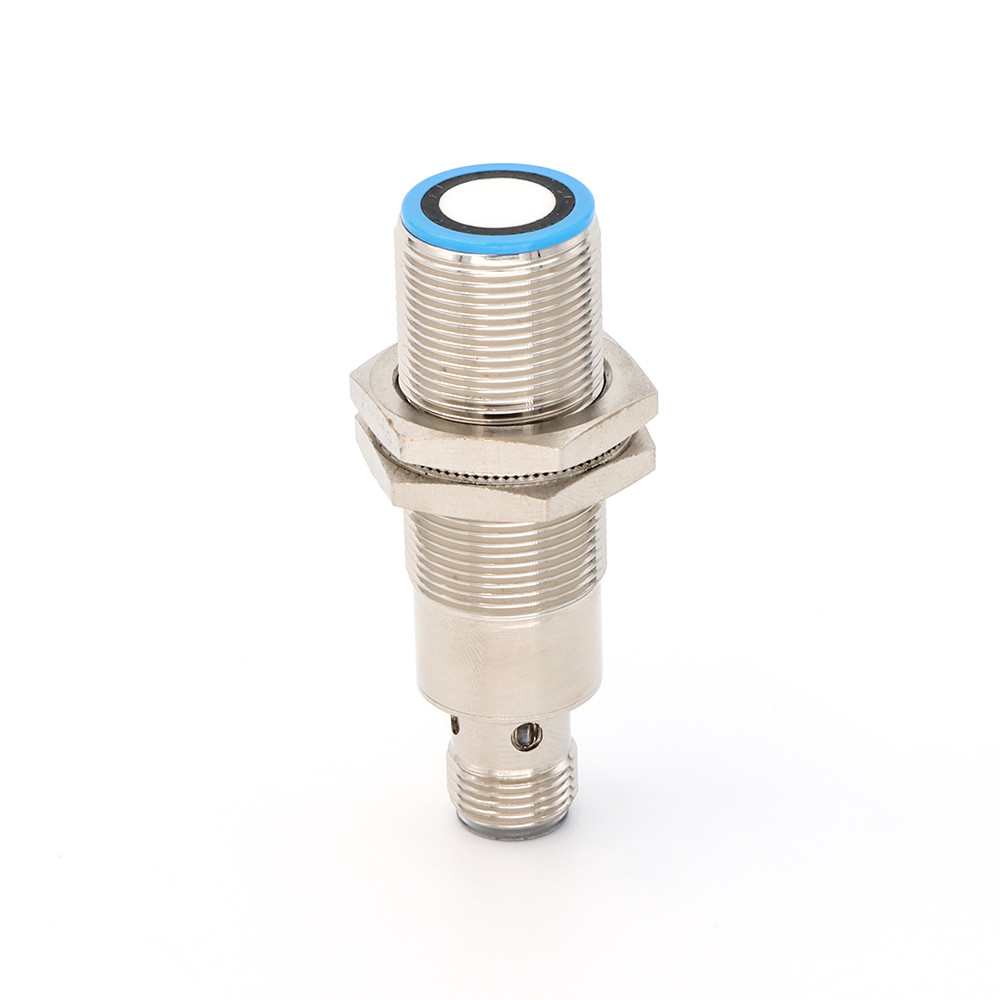

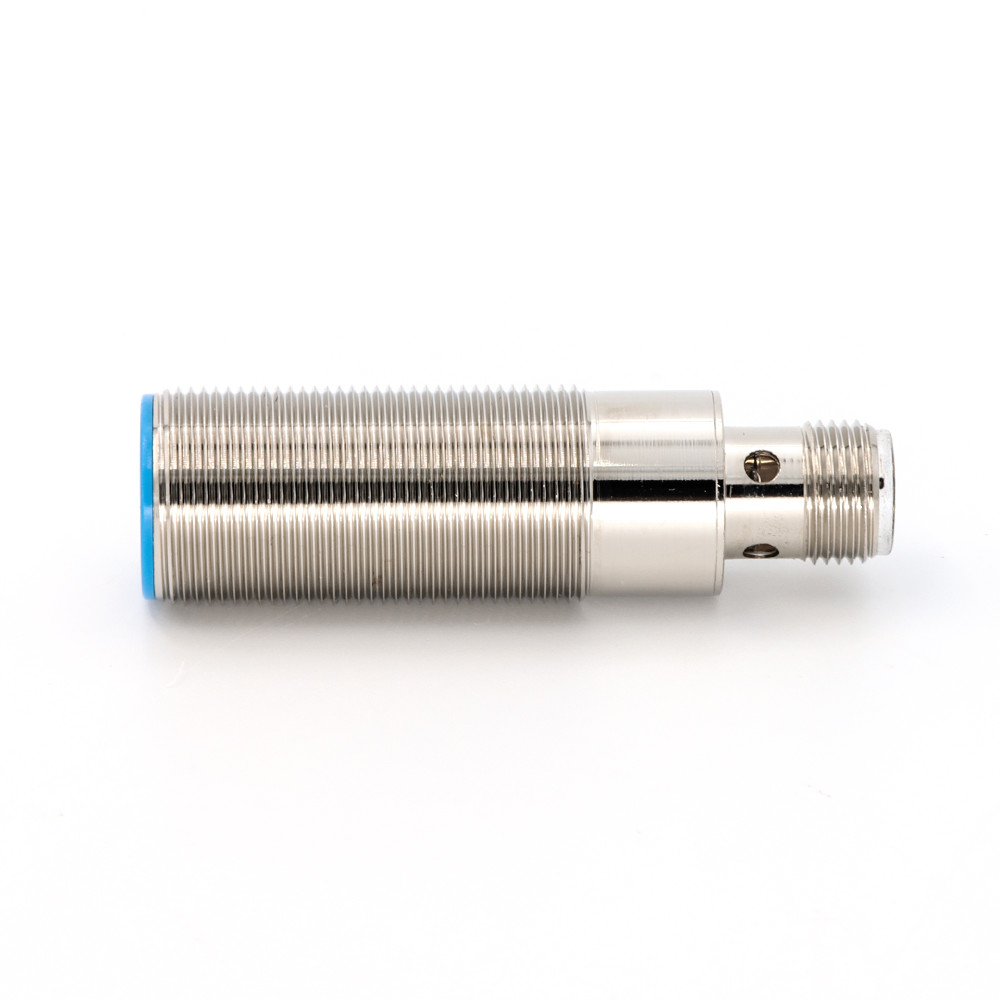

U18 Ultrasonic Sensor NPN PNP Switching Output 50-500mm Detection Range

Product Description

Ultrasonic Sensor U18 NPN PNP Switching Output 50-500mm Detection range

Product Description

Main Feature:
▶ M18 installation threaded sleeve
▶ Easy to instal

Basic Feature:
▶ 1 pc npn or pnp switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Analog voltage output 0-10V or analog current output 4-20 mA
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V

Model	U18-D500N(P)2T-R00A
Dection range	50-500mm
Blind zone	0-50mm
Resolution	0.15mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	32ms
Switching hysteresis	2mm
Switching frequency	31Hz
Initialization time	＜ 500ms
Supply voltage	10-30V DC,reverse-polarity protection
Red LED	no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED	object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection	200mA,Red LED and Green LED flashing at the same time
Load impedance	I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	teach-in and synchronization
Material	Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	35g
Output type	N2: 2 npn switching output NO/NC
Output type	P2: 2 pnp switching output NO/NC
Dimensional drawing
