Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Detection Range:

50-500mm

Resolution:

0.15mm

Repeatability:

±0.15% F.S.

Supply Voltage:

10-30V DC,reverse-polarity Protection

Switching Frequency:

31Hz

Red LED:

No Object Detected:Lights Up, Teaching-in When No Object Detected:Flashes

Load Impedance:

I/ ＜ 300 Ohm,U/ ＞ 1k Ohm

No-load Current:

≤30mA

Supply Ability:

100000 pieces per month

Highlight:

32ms Industrial Ultrasonic Sensors

5pin M12 Connector Industrial Ultrasonic Sensors

Product Description

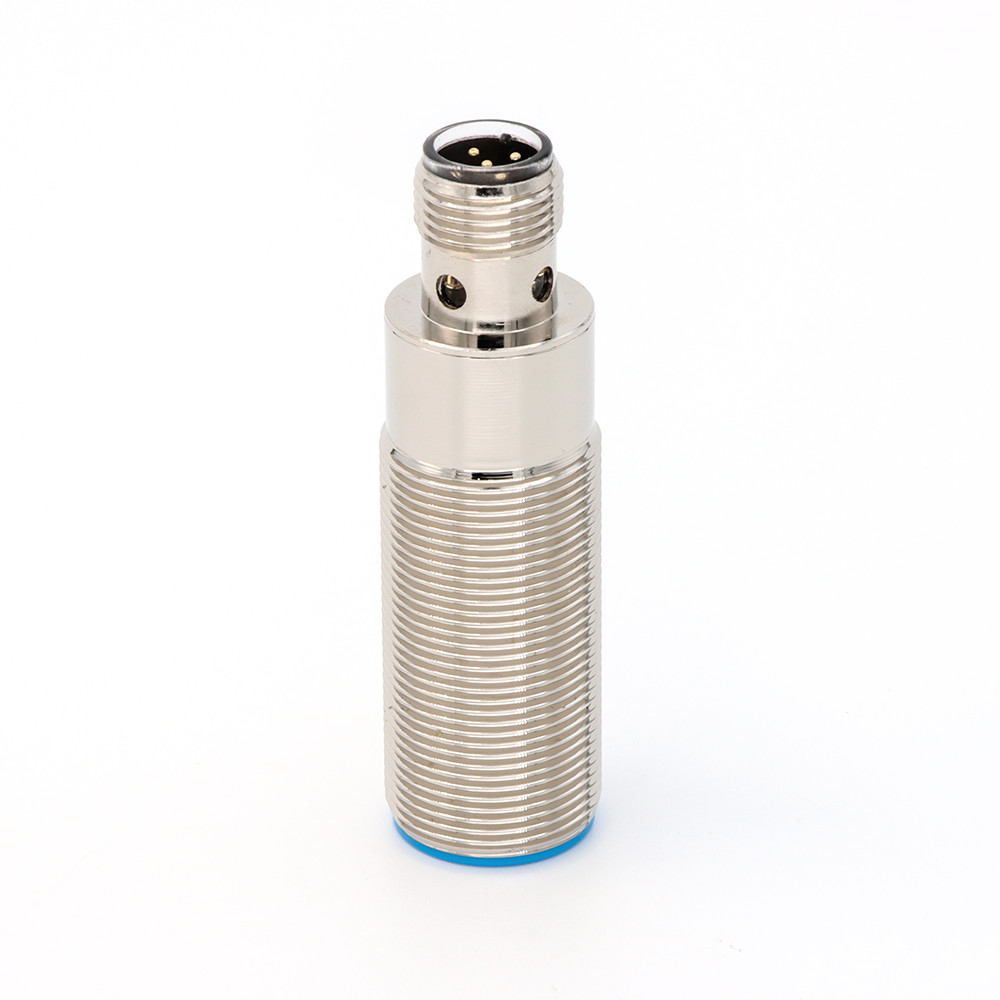

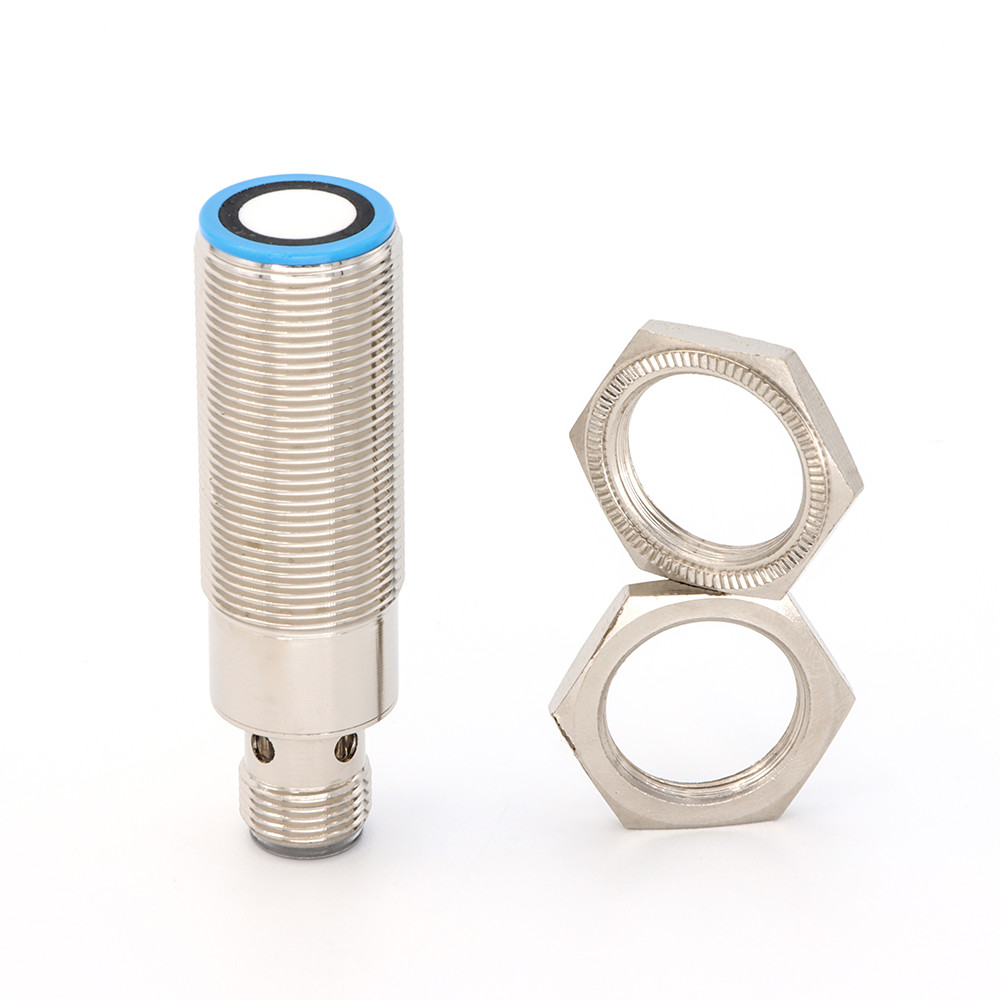

32ms Industrial Ultrasonic Sensors Switching Output 50-500mm 5pin M12 Connector

Key Specifications

Attribute	Value
Detection range	50-500mm
Resolution	0.15mm
Repeatability	±0.15% F.S.
Supply voltage	10-30V DC, reverse-polarity protection
Switching frequency	31Hz
Red LED	no object detected: Lights up, teaching-in when no object detected: Flashes
Load impedance	I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current	≤30mA

Product Features

Technical Specifications

Model	U18-D500N(P)32T-R00A
Blind zone	0-50mm
Accuracy	±1% (built-in temperature drift compensation)
Response time	32ms
Switching hysteresis	2mm
Initialization time	＜ 500ms
Green LED	object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection	200mA, Red LED and Green LED flashing simultaneously
Input type	Teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~ +70℃ (248~343K)
Storage temperature	-40℃ ~ +85℃ (233~358K)
Weight	35g
Output type	N32: 2 NPN switching output NO/NC P32: 2 PNP switching output NO/NC
