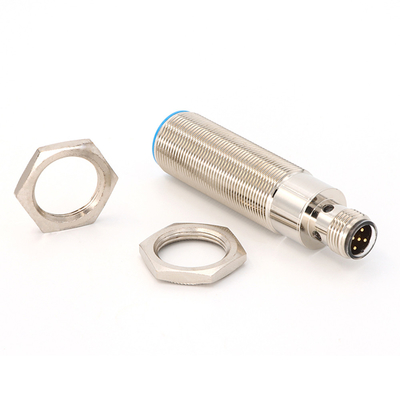

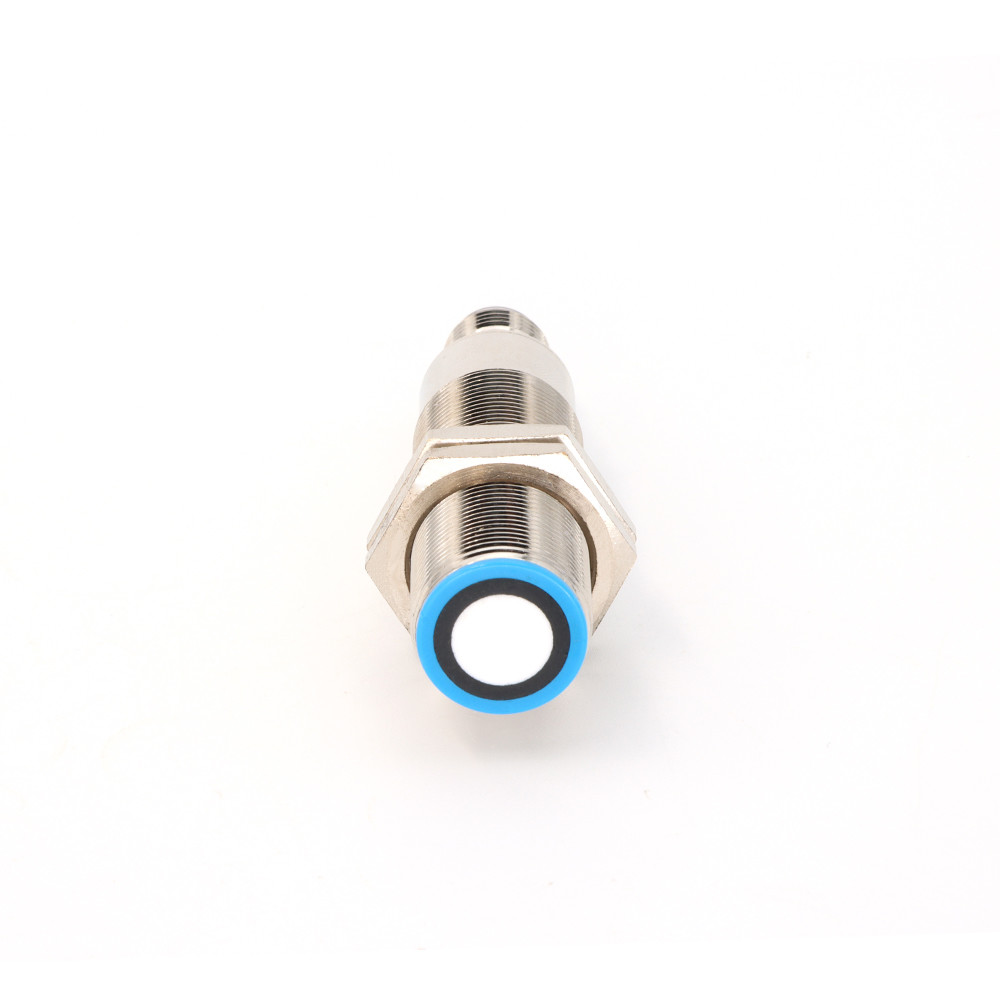

M12 Connector Industrial Ultrasonic Sensors NPN PNP 60-1000mm Detection Range
  • Name
  • Name

M12 Connector Industrial Ultrasonic Sensors NPN PNP 60-1000mm Detection Range

Brand Name: KRONZ
Model Number: U18-D1000N(P)2T-R00A
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
Ultrasonic Distance Sensors
Connection Type:
5pin, M12 Connector
Material:
Copper Nikel-plated,plastic Fittings,glass Epoxy Resin.
Supply Voltage:
10-30V DC
Input Type:
Teach-in And Synchronization
Blind Zone:
0-60mm
Ambient Temperature:
-25℃ ~+70℃（248~343K）
Storage Temperature:
-40℃ ~+85℃（233~358K）
Supply Ability:
100000 pieces per month
Highlight:

M12 Industrial Ultrasonic Sensors NPN

,

60mm Detection Industrial Ultrasonic Sensors

,

M12 Connector Ultrasonic Sensors PNP

Product Description
M12 Connector Industrial Ultrasonic Sensors NPN PNP 60-1000mm Detection Range
Product Attributes
Attribute Value
Product Name Ultrasonic Distance Sensors
Connection type 5pin, M12 connector
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Supply Voltage 10-30V DC
Input type Teach-in and synchronization
Blind zone 0-60mm
Ambient temperature -25℃ ~ +70℃ (248~343K)
Storage temperature -40℃ ~ +85℃ (233~358K)
Ultrasonic Sensor NPN PNP Switch Output 60-1000mm Detection Range M12 Connector
Main Features
  • M18 installation threaded sleeve for easy installation
  • 1 NPN or PNP switching output
  • Supports digital RS485, Modbus-RTU standard protocol communication
  • Analog voltage output 0-10V or analog current output 4-20 mA
  • Detection distance learning function through gray lines
  • Temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model: U18-D1000N(P)2T-R00A
Detection range: 60-1000mm
Blind zone: 0-60mm
Resolution: 0.17mm
Repeatability: ±0.15%F.S.
Accuracy: ±1% (built-in temperature drift compensation)
Response time: 52ms
Switching hysteresis: 2mm
Switching frequency: 19Hz
Initialization time: < 500ms
Supply voltage: 10-30V DC, reverse-polarity protection
LED indicators:
  • Red LED: lights up when no object detected, flashes during teaching-in
  • Green LED: lights up when object detected, flashes during teaching-in
Overcurrent protection: 200mA (Red and Green LEDs flash simultaneously)
Load impedance: I/ < 300 Ohm, U/ > 1k Ohm
No-load current: ≤30mA
Input type: Teach-in and synchronization
Material: Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating: IP67
Connection type: 5pin, M12 connector
Ambient temperature: -25℃ ~ +70℃ (248~343K)
Storage temperature: -40℃ ~ +85℃ (233~358K)
Weight: 38g
Output type:
  • N2: 1 NPN switching output NO/NC
  • P2: 1 PNP switching output NO/NC
Dimensional Drawing
M12 Connector Industrial Ultrasonic Sensors NPN PNP 60-1000mm Detection Range 0
N42, P42 series coming soon.
