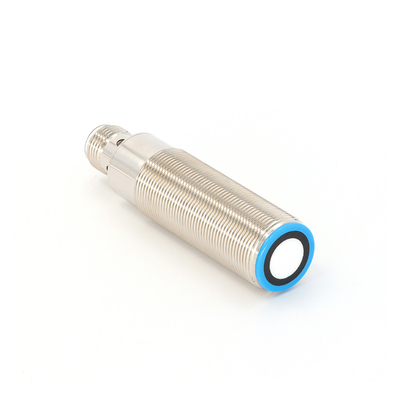

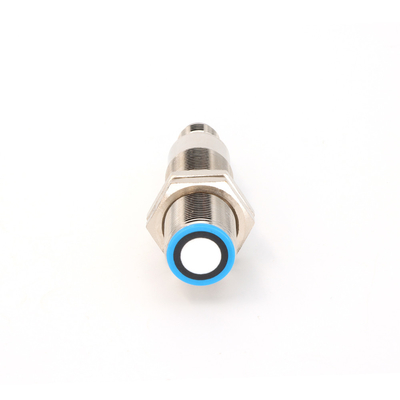

5Pin M12 Connector Ultrasonic Sensor NPN Or PNP Detection Range 60-1000mm
  • Name
  • Name

5Pin M12 Connector Ultrasonic Sensor NPN Or PNP Detection Range 60-1000mm

Brand Name: KRONZ
Model Number: U18-D1000N(P)32T-R00A
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Detection Range:
60-1000mm
Blind Zone:
0-60mm
Enclosure Rating:
IP67
Response Time:
52ms
Switching Hysteresis:
2mm
Switching Frequency:
19Hz
Initialization Time:
< 500ms
Repeatability:
±0.15% F.S.
Supply Ability:
100000 pieces per month
Highlight:

5Pin Ultrasonic Sensor NPN

,

M12 Connector Ultrasonic Sensor PNP

,

1000mm Detection Ultrasonic Sensor NPN

Product Description
5Pin M12 Connector Ultrasonic Sensor NPN Or PNP Detection Range 60-1000mm
Key Specifications
Attribute Value
Detection range 60-1000mm
Blind zone 0-60mm
Enclosure rating IP67
Response time 52ms
Switching hysteresis 2mm
Switching frequency 19Hz
Initialization time < 500ms
Repeatability ±0.15% F.S.
Ultrasonic Sensor Switching Output Detection Range 60-1000mm 5Pin M12 Connector
Main Features
  • M18 installation threaded sleeve for easy installation
  • 1 NPN or PNP switching output
  • Supports digital RS485, Modbus-RTU standard protocol communication
  • Analog voltage output 0-10V or analog current output 4-20 mA
  • Detection distance learning function through gray lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model U18-D1000N(P)32T-R00A
Detection range 60-1000mm
Blind zone 0-60mm
Resolution 0.17mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with built-in temperature drift compensation)
Response time 52ms
Switching hysteresis 2mm
Switching frequency 19Hz
Initialization time < 500ms
Supply voltage 10-30V DC with reverse-polarity protection
LED indicators Red: no object detected (lights up), Green: object detected (lights up)
Overcurrent protection 200mA (LEDs flash simultaneously when triggered)
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~ +70℃ (248~343K)
Storage temperature -40℃ ~ +85℃ (233~358K)
Weight 38g
Output type N32: 1 NPN switching output NO/NC
P32: 1 PNP switching output NO/NC
Dimensional Drawing
5Pin M12 Connector Ultrasonic Sensor NPN Or PNP Detection Range 60-1000mm 0
