Home /Products/Industrial Ultrasonic Sensors/M12 Connector Industrial Ultrasonic Sensors 5 Pin IP67 Support Digital RS485

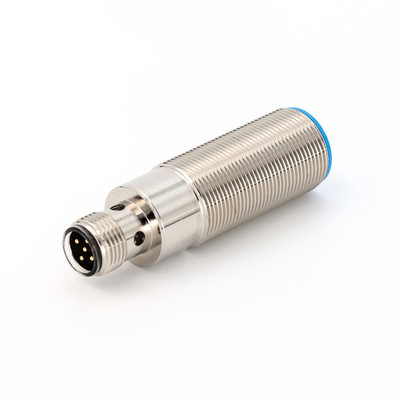

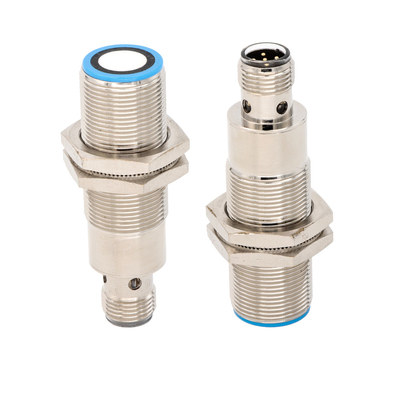

M12 Connector Industrial Ultrasonic Sensors 5 Pin IP67 Support Digital RS485

10 pieces
MOQ
Negotiable
Price
M12 Connector Industrial Ultrasonic Sensors 5 Pin IP67 Support Digital RS485
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: U18 Ultrasonic Sensors
Detection Range: 30-300mm
Resolution: 0.1mm
Supply Voltage: 10-30V DC,reverse-polarity Protection
No-load Current: ≤30mA
Input Type: Teach-in And Synchronization
Enclosure Rating: IP67
Ambient Temperature: -25℃ ~+70℃（248~343K）
Highlight:

Digital RS485 Industrial Ultrasonic Sensors

,

M12 Connector 5 Pin Ultrasonic Sensors

,

IP67 M12 Industrial Ultrasonic Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U18-D300UT-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

Ultrasonic Sensors Analog Voltage Output 0-10V Up/down 5 Pin M12 Connector​



Product Description

Main Feature:
▶ M18 installation threaded sleeve
▶ Easy to instal



Basic Feature:
▶ 1 pc npn or pnp switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Analog voltage output 0-10V
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V





Model U18-D300UT-R00A
Dection range 30-300mm
Blind zone 0-30mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 22ms
Initialization time < 500ms
Supply voltage 10-30V DC,reverse-polarity protection
Red LED no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection 200mA,Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current ≤30mA
Input type

Teach-in and synchronization
Material Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~+70℃(248~343K)
Storage temperature -40℃ ~+85℃(233~358K)
Weight 35g
Output type U: 1 analog voltage output 0-10V, Up/down
Dimensional drawing M12 Connector Industrial Ultrasonic Sensors 5 Pin IP67 Support Digital RS485 0
