M12 Connector Ultrasonic Sensors NPN IP67 Detection Range 100-2000mm
  • Name
  • Name

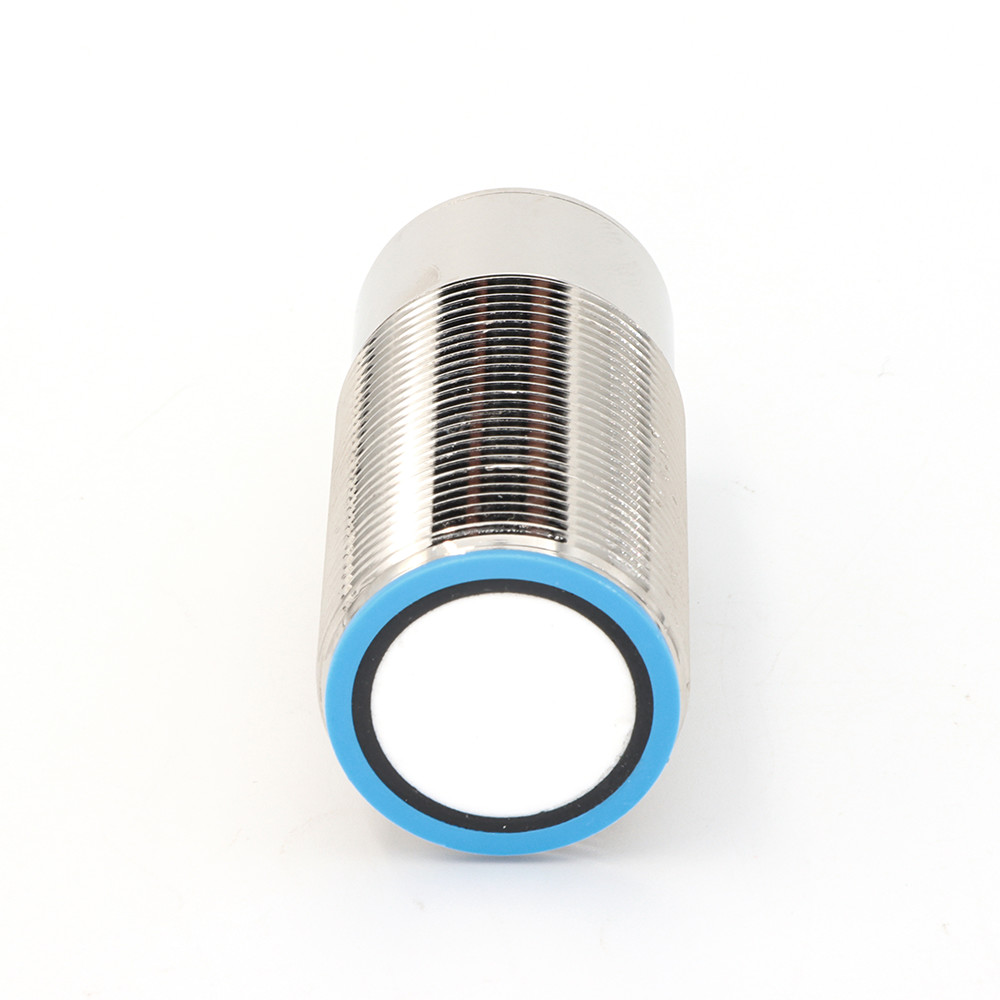

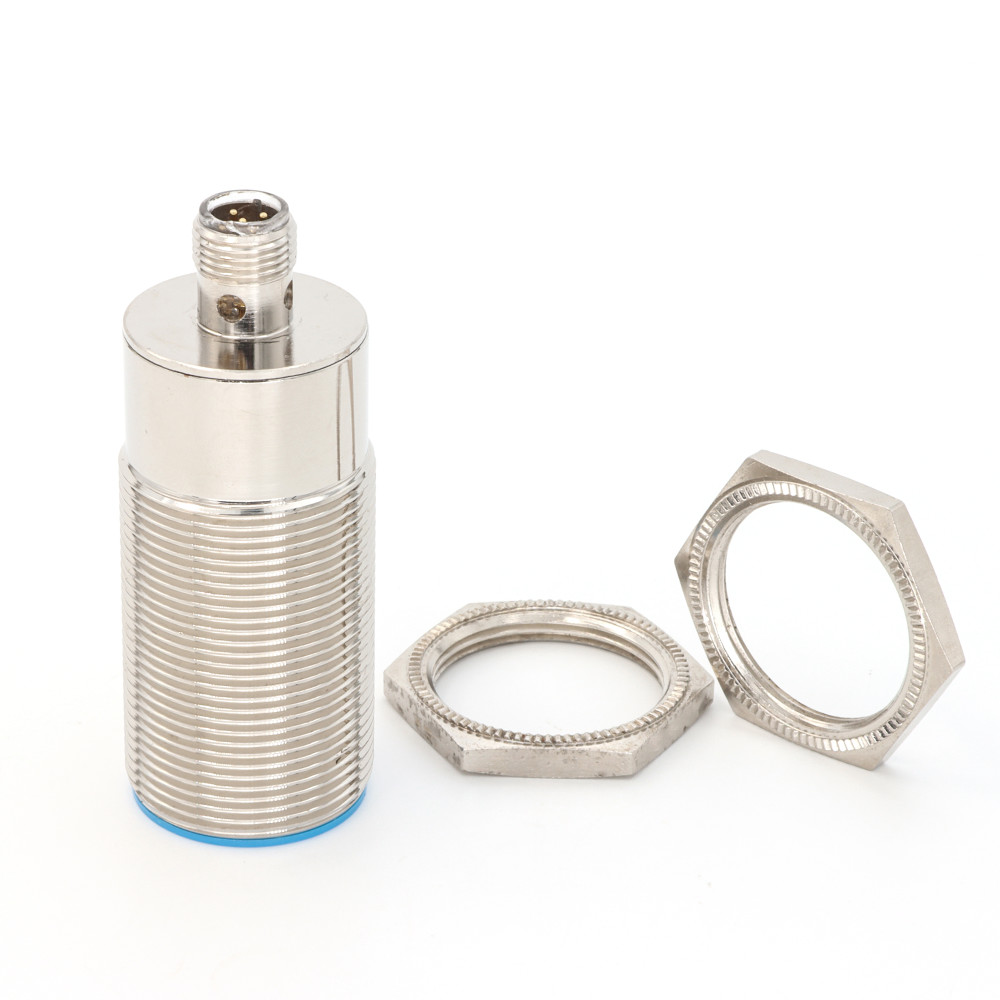

M12 Connector Ultrasonic Sensors NPN IP67 Detection Range 100-2000mm

Brand Name: KRONZ
Model Number: U30-D2000N(P)1T-R00A
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Detection Range:
100-2000mm
Blind Zone:
0-100mm
Repeatability:
±0.15%F.S.
Response Time:
82ms
Initialization Time:
＜ 500ms
Supply Voltage:
10-30V DC,reverse-polarity Protection
Load Impedance:
I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load Current:
≤30mA
Supply Ability:
100000 pieces per month
Highlight:

M12 Connector Ultrasonic Sensors NPN

,

IP67 Ultrasonic Sensors NPN

,

2000mm Detection Ultrasonic Sensors NPN

Product Description
M12 Connector Ultrasonic Sensors NPN IP67 Detection Range 100-2000mm
Key Features
  • Full Metal M30 installation threaded sleeve for durability
  • Designed for harsh industrial environments
  • 1 NPN switching output with digital RS485 support
  • Modbus-RTU standard protocol communication
  • Detection distance learning function via gray lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V

Technical Specifications
Attribute Value
Detection range 100-2000mm
Blind zone 0-100mm
Repeatability ±0.15%F.S.
Response time 82ms
Initialization time < 500ms
Supply voltage 10-30V DC, reverse-polarity protection
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Detailed Specifications
Model U30-D2000N(P)1T-R00A
Resolution 0.17mm
Accuracy ±1% (with built-in temperature drift compensation)
Switching hysteresis ±2mm
Switching frequency 10Hz
LED Indicators Red: No object detected (Lights up), Green: Object detected (Lights up)
Overcurrent protection 200mA (LEDs flash simultaneously)
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ to +70℃ (248~343K)
Storage temperature -40℃ to +85℃ (233~358K)
Weight 105g
Output type N1: 1 NPN switching output, NO/NC
Dimensional Drawing
M12 Connector Ultrasonic Sensors NPN IP67 Detection Range 100-2000mm 0
