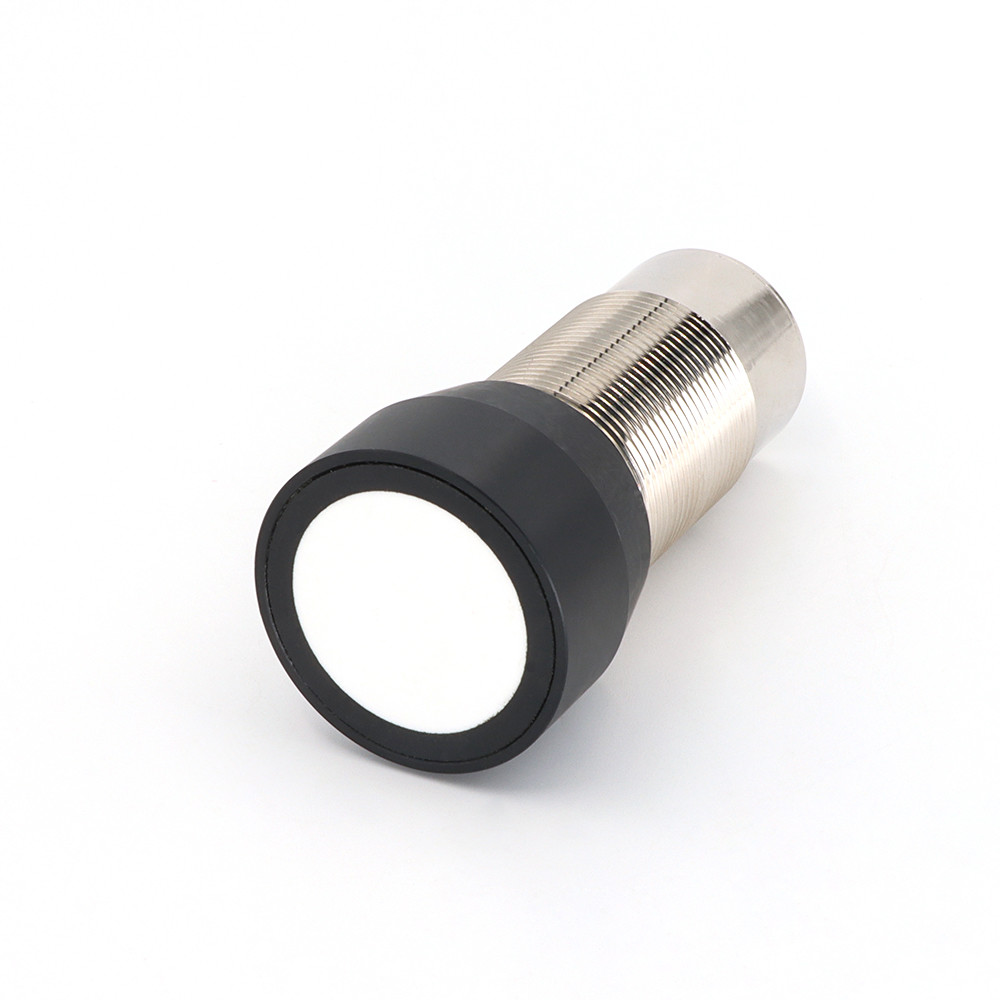

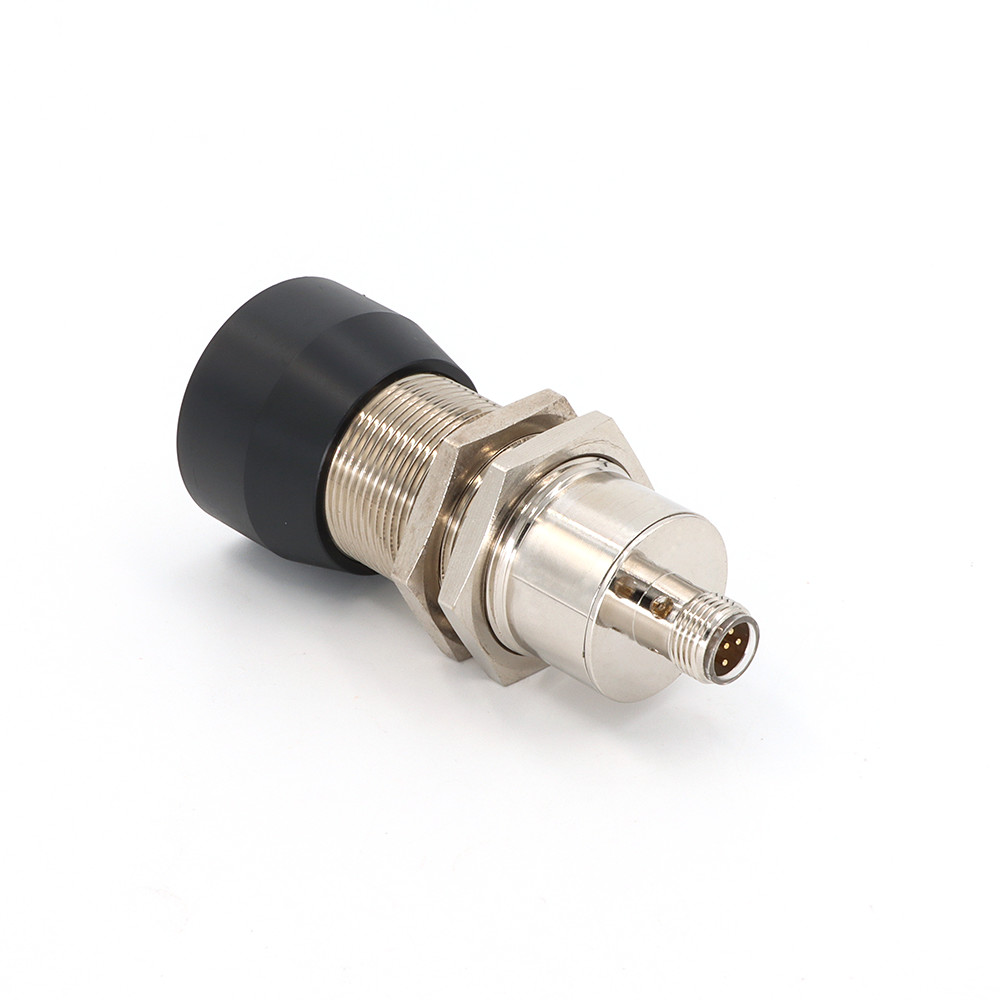

M12 Industrial Ultrasonic Sensors NPN 5 Pin Detection Range 200-4000mm

10 pieces
MOQ
Negotiable
Price
M12 Industrial Ultrasonic Sensors NPN 5 Pin Detection Range 200-4000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Detection Range: 200-4000mm
Blind Zone: 0-200mm
Resolution: 0.17-1.5mm
Repeatability: ±0.15%F.S.
Response Time: 162ms
Initialization Time: ＜ 500ms
Supply Voltage: 10-30V DC,reverse-polarity Protection
Load Impedance: I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load Current: ≤30mA
Highlight:

Industrial Ultrasonic Sensors NPN

,

Industrial Ultrasonic Sensors 5 Pin

,

M12 Industrial Ultrasonic Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U30-D4000N(P)1T-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

Ultrasonic Sensors NPN 5 Pin M12 Connector Detection Range 200-4000mm 5Hz



Product Description

Main Feature:
▶ Full Metal M30 installation threaded sleeve
▶ Used in harsh environments



Basic Feature:
▶ 1 pc npn switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V



Technical Data

Model U30-D4000N(P)1T-R00A
Dection range 200-4000mm
Blind zone 0-200mm
Resolution 0.17-1.5mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 162ms
Switching hysteresis  ±4mm
Switching frequency 5Hz
Initialization time < 500ms
Supply voltage 10-30V DC,reverse-polarity protection
Red LED no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection 200mA,Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current ≤30mA
Input type

Teach-in and synchronization
Material Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~+70℃(248~343K)
Storage temperature -40℃ ~+85℃(233~358K)
Weight 145g
Output type N1: 1 npn switching output, NO/NC
Dimensional drawing M12 Industrial Ultrasonic Sensors NPN 5 Pin Detection Range 200-4000mm 0
