Detection Range:

20-60mm

Blind Zone:

7mm In Front

Permissble Angle Deviation:

±45° To The Vertical Plane

Green LED:

1 Material Layer Detected

Yellow LED:

No Object Detected

Red LED:

2 Material Layer Detected

Supply Voltage:

10-30V DC,reverse-polarity Protection

Respense Delay:

10ms

Supply Ability:

100000 pieces per month

Highlight:

Ultrasonic NPN Sensors

3 Way Switching Ultrasonic NPN Sensors

Product Description

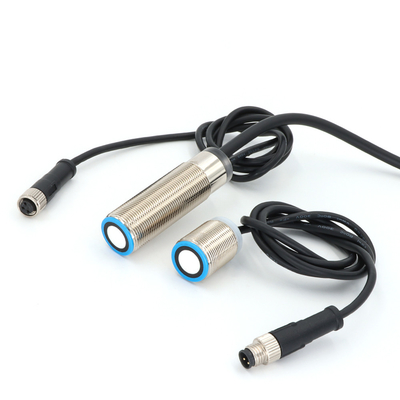

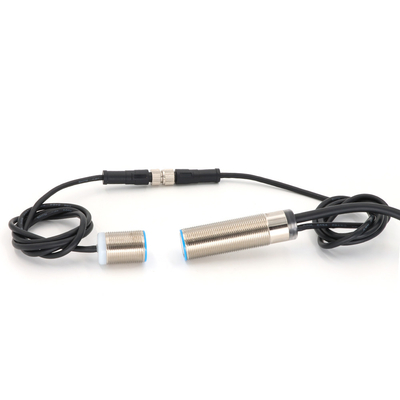

Ultrasonic NPN Sensors 3 Way Switching Output 10-30VDC With 2m PVP Cable

Key Features

Technical Specifications

Attribute	Value
Model	U18D-D60NO3T-R00C
Detection range	20-60mm
Blind zone	7mm in front
Permissible angle deviation	±45° to the vertical plane
Working range	< 1mm thick metal composite plate and thin film, self-adhesive film, on backing material label, > 0.01mm paper, PCB board, silicon wafer
Supply voltage	10-30V DC, reverse-polarity protected
LED indicators	Green: 1 material layer detected Yellow: no object detected Red: 2 material layers detected
Response delay	10ms
Output type	NPN: 3-way switching output NO/NC
Connection	2m PVP cable 0.14mm²
Enclosure rating	IP67
Ambient temperature	-25℃ to +70℃
Weight	220g

Additional Technical Data

No-load current: ≤30mA with short circuit/overload protection
Operational current: 3x200mA
Overcurrent protection: 200mA (indicated by Red and Green LEDs flashing simultaneously)
Voltage drop: ≤2V
Pulse width: ≥100ms
Impedance: ≥4kΩ
Material: Copper nickel-plated with plastic fittings and glass epoxy resin
