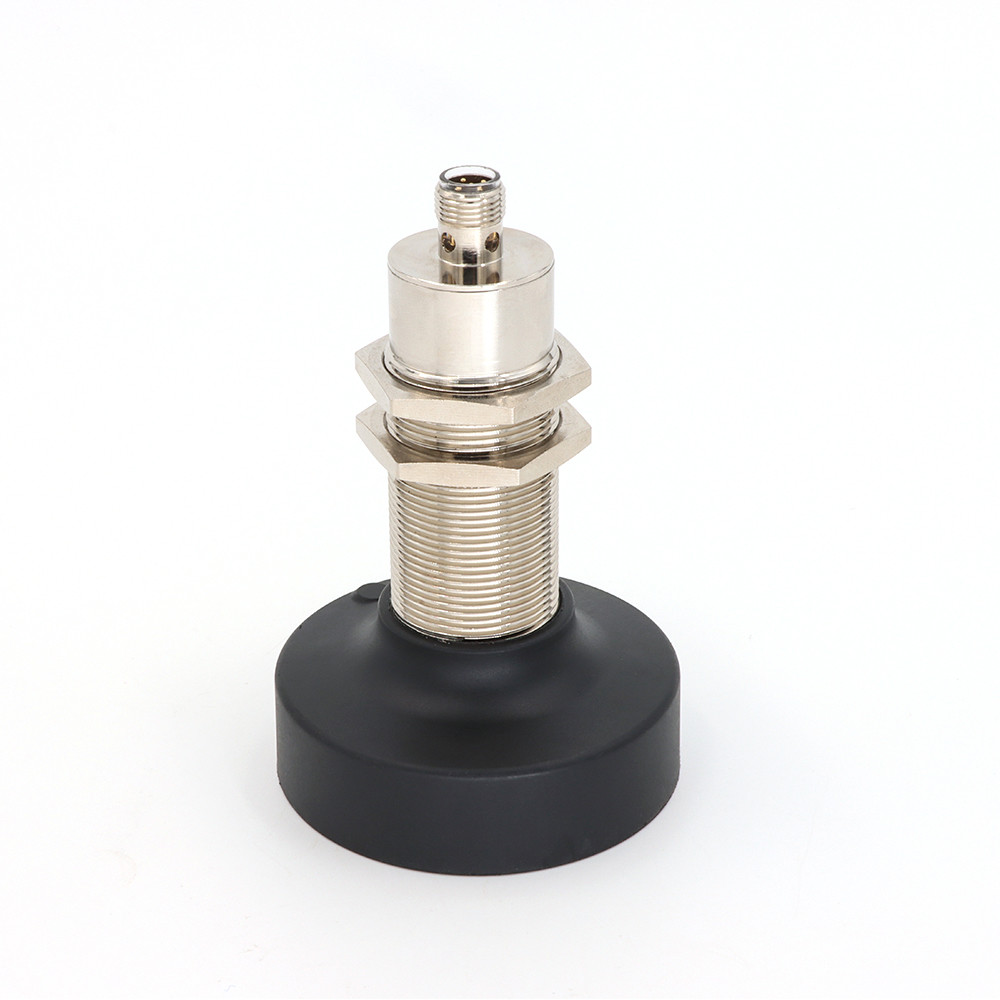

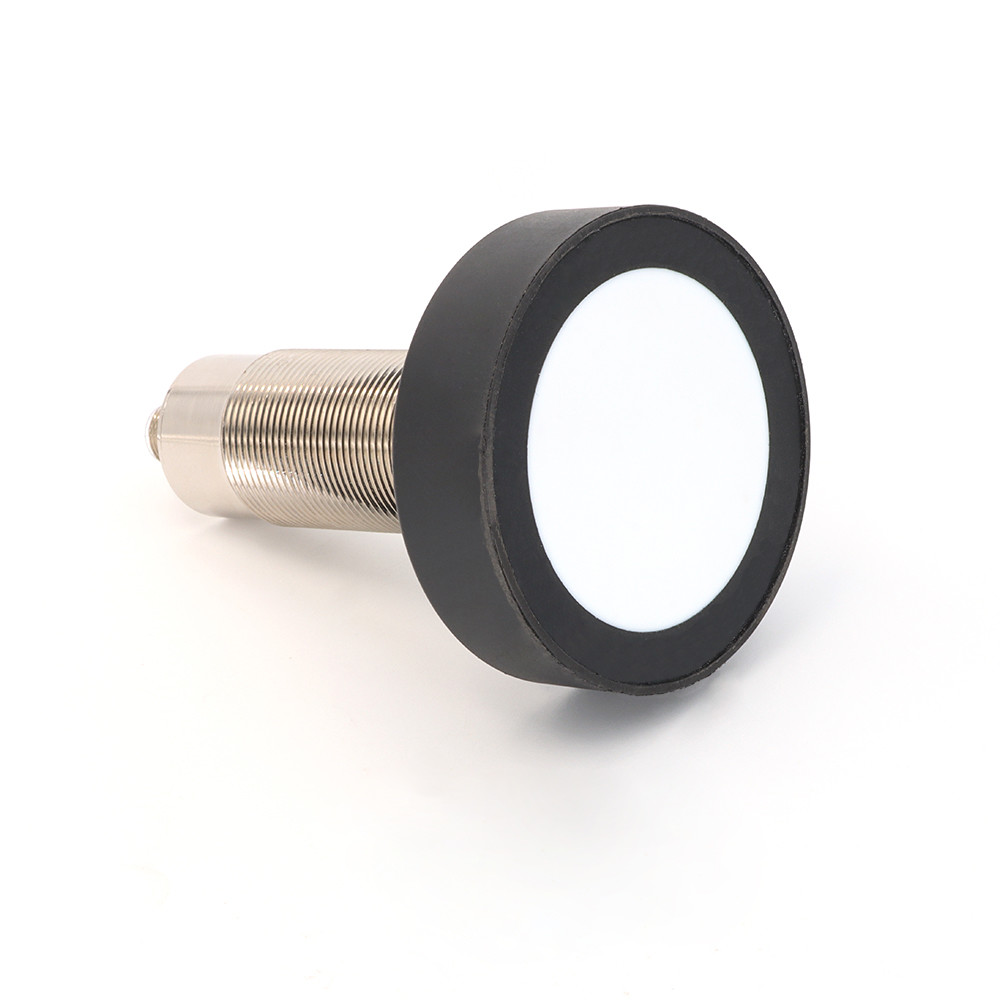

U30 Industrial Ultrasonic Sensors NPN 350-6000mm 5 Pin M12 Connector

10 pieces
MOQ
Negotiable
Price
U30 Industrial Ultrasonic Sensors NPN 350-6000mm 5 Pin M12 Connector
Features Gallery Product Description Chat Now
Features
Specifications
Detection Range: 350-6000mm
Blind Zone: 0-350mm
Repeatability: ±0.15%F.S.
Response Time: 232ms
Initialization Time: ＜ 500ms
Supply Voltage: 10-30V DC,reverse-polarity Protection
Load Impedance: I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
Weight: 185g
Highlight:

U30 Industrial Ultrasonic Sensors

,

6000mm Industrial Ultrasonic Sensors

,

5 Pin Ultrasonic Sensors NPN
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U30-D6000N(P)1T-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
U30 Industrial Ultrasonic Sensors NPN 350-6000mm 5 Pin M12 Connector
Key Specifications
Attribute Value
Detection range 350-6000mm
Blind zone 0-350mm
Repeatability ±0.15%F.S.
Response time 232ms
Initialization time < 500ms
Supply voltage 10-30V DC, reverse-polarity protection
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
Weight 185g
Product Description
Ultrasonic Sensors 350-6000mm 5 Pin M12 Connector U30 NPN Switching Output
Main Features
  • Full Metal M30 installation threaded sleeve
  • Designed for harsh industrial environments
  • 1 NPN switching output
  • Supports digital RS485, Modbus-RTU standard protocol communication
  • Detection distance learning function through gray lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model: U30-D6000N(P)1T-R00A
Detection range: 350-6000mm
Blind zone: 0-350mm
Resolution: 0.17-2.5mm
Repeatability: ±0.15%F.S.
Accuracy: ±1% (built-in temperature drift compensation)
Response time: 232ms
Switching hysteresis: ±5mm
Switching frequency: 4Hz
Initialization time: < 500ms
Supply voltage: 10-30V DC, reverse-polarity protection
LED Indicators:
  • Red LED: Lights up when no object detected, flashes during teaching-in
  • Green LED: Lights up when object detected, flashes during teaching-in
Overcurrent protection: 200mA (both LEDs flash simultaneously)
No-load current: ≤30mA
Input type: Teach-in and synchronization
Material: Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating: IP67
Connection type: 5pin, M12 connector
Ambient temperature: -25℃ ~ +70℃ (248~343K)
Storage temperature: -40℃ ~ +85℃ (233~358K)
Output type: N1: 1 NPN switching output, NO/NC
Dimensional Drawing
U30 Industrial Ultrasonic Sensors NPN 350-6000mm 5 Pin M12 Connector 0
