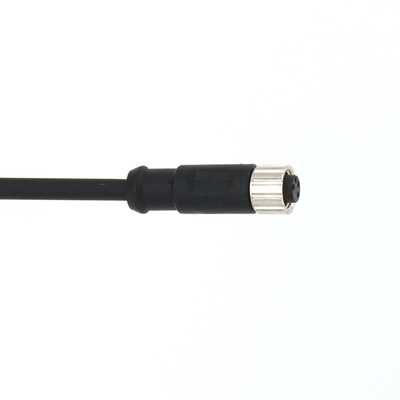

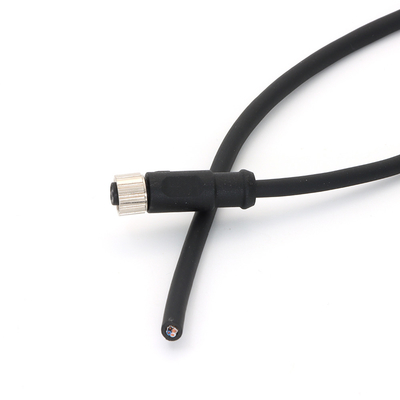

8Pin M8 Connectors Pre Assembled Cable With Straight Female 30V A Code PVC Black

50 pieces
MOQ
Negotiable
Price
8Pin M8 Connectors Pre Assembled Cable With Straight Female 30V A Code PVC Black
Features Gallery Product Description Request A Quote
Features
Specifications
Insulation Resistance: ≥100MΩ
Name: Pre-assembled Cable Connector
Standard: IEC 61076-2-104
Contact Nut Material: Brass, Nickle-plated
Contact Carrier Material: PA, Black
Wire Gauge: 8×0.14 (8×26AWG) PVC, Black
Voltage: 30V
Rated Current: 1.5A
Highlight:

8Pin M8 Connectors

,

30V M8 Connectors

,

PVC Cable M8 Female Connectors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M0808F-2/P00R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
8Pin M8 Connectors Pre Assembled Cable With Straight Female 30V A Code PVC Black
Product Specifications
Attribute Value
Insulation resistance ≥100MΩ
Name Pre-assembled Cable Connector
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact carrier material PA, black
Wire Gauge 8×0.14 (8×26AWG) PVC, black
Voltage 30V
Rated Current 1.5A
Product Description
M8 Connectors Pre-assembled Cable with 8Pin Straight Female 30V A Code PVC Black

M8 connectors are typically constructed from high-strength materials such as nickel-plated brass, stainless steel, or durable plastics like polyamide for the housing. Contacts are usually made from gold-plated brass or bronze for excellent electrical conductivity and corrosion resistance. Rubber or silicone gaskets and O-rings are used for sealing to achieve high ingress protection ratings.

8Pin M8 Connectors Pre Assembled Cable With Straight Female 30V A Code PVC Black 0
Technical Data
Specification Value
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Configuration
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
8Pin M8 Connectors Pre Assembled Cable With Straight Female 30V A Code PVC Black 1 1=WH
2=BN
3=GN
4=YE
5=GY
6=PK
7=BU
8=RD		 A 1.5A 30V 8×0.14
(8×26AWG)
PVC, black		 Straight 2M
5M
10M		 M0808F-2/P00R
M0808F-5/P00R
M0808F-10/P00R
