U18 Industrial Ultrasonic Sensors 50-500mm Detection Range 0-50mm Blind Zone

10 pieces
MOQ
Negotiable
Price
U18 Industrial Ultrasonic Sensors 50-500mm Detection Range 0-50mm Blind Zone
Features Gallery Product Description Request A Quote
Features
Specifications
Series: U18 Serial
Detection Range: 50-500mm
Blind Zone: 0-50mm
Resolution: 0.15mm
Response Time: 32ms
Initialization Time: <500ms
Supply Voltage: 10-30V DC,reverse-polarity Protection
Load Impedance: I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
Highlight:

Industrial Ultrasonic Sensors U18

,

500mm Detection Industrial Ultrasonic Sensors

,

50mm Blind Zone Industrial Ultrasonic Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Kronz
Certification: CE
Model Number: U18-D500IT-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
U18 Industrial Ultrasonic Sensors 50-500mm Detection Range 0-50mm Blind Zone
Product Attributes
Attribute Value
Series U18 Serial
Detection Range 50-500mm
Blind Zone 0-50mm
Resolution 0.15mm
Response Time 32ms
Initialization Time <500ms
Supply Voltage 10-30V DC, reverse-polarity protection
Load Impedance I/ < 300 Ohm, U/ > 1k Ohm
Ultrasonic Sensor U18 Analog Current Output 4-20mA Up/down 50-500mm Detection Range

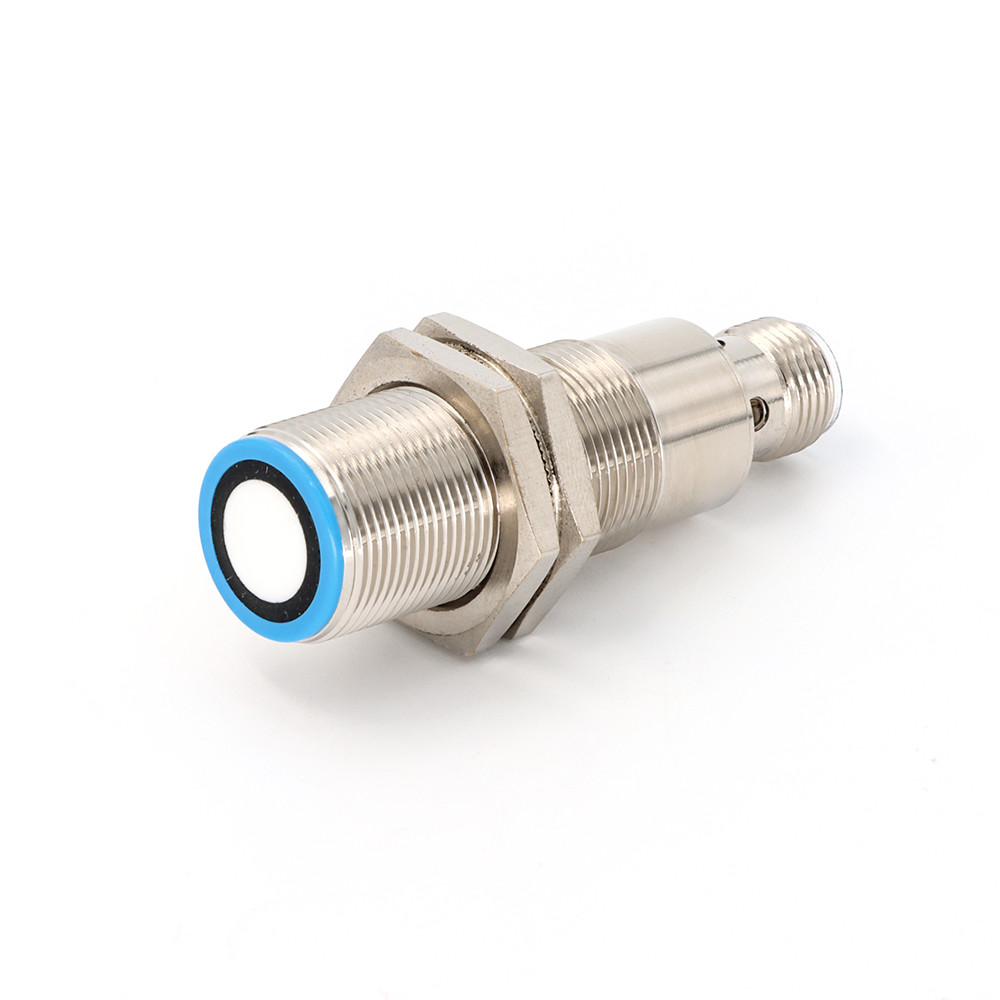

The Ultrasonic sensor U118-D500IT-R00A features a detection range of 50-500mm with supply voltage of 10-30VDC and reverse-polarity protection. It provides analog current output of 4-20mA up/down. Ultrasonic sensors use ultrasonic waves for detecting distance to objects, presence/absence of objects, and object movement.

Main Features
  • M18 mounting thread sleeve
  • Easy to install
Basic Features
  • Analog current output 4-20mA
  • Detection distance learning function through gray lines
  • Temperature compensation
  • Standard working voltage DC 10-30V
Technical Specifications
Model U18-D500IT-R00A
Detection range 50-500mm
Blind zone 0-50mm
Resolution 0.15mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 32ms
Initialization time < 500ms
Supply voltage 10-30V DC, reverse-polarity protected
Red LED no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection 200mA, Red LED and Green LED flashing simultaneously
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Input type teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67

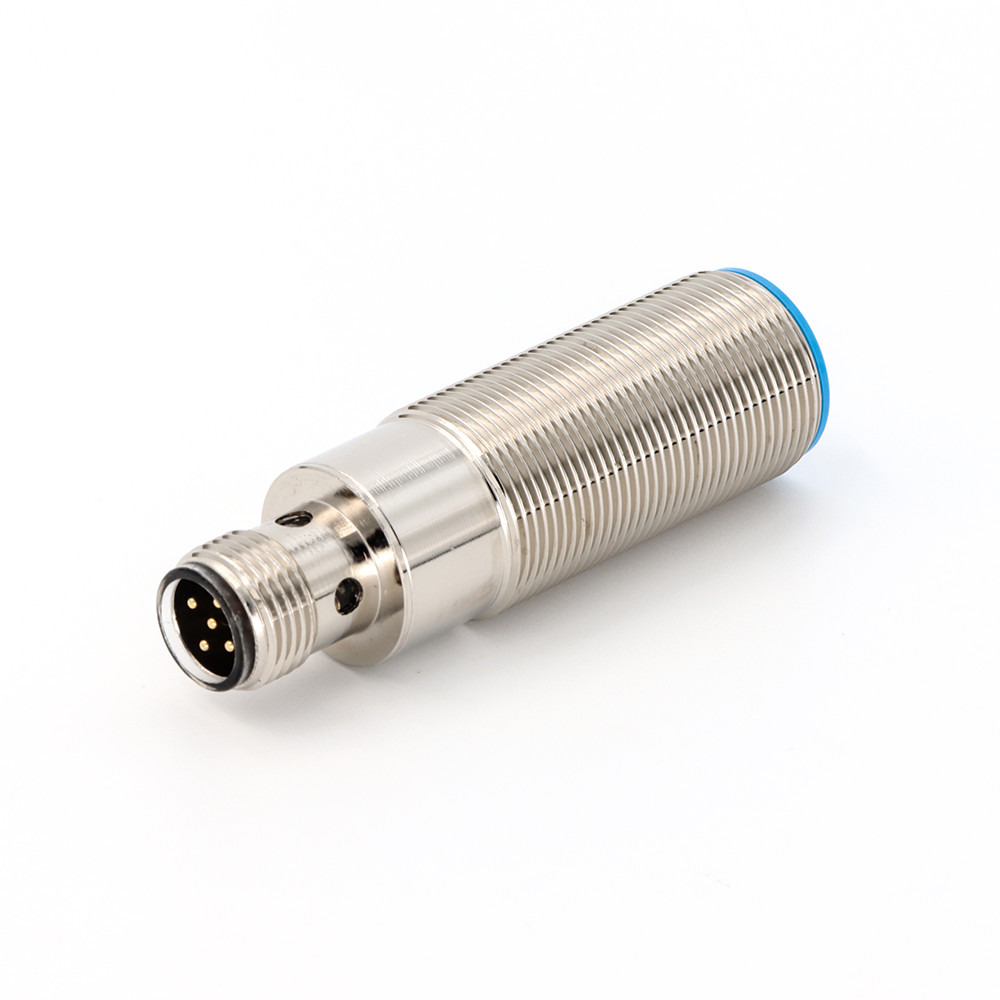

Connection type 5pin, M12 connector
Ambient temperature -25℃ ~ +70℃ (248~343K)
Storage temperature -40℃ ~ +85℃ (233~358K)
Weight 35g
Output type I: 1 analog current output 4-20mA Up/down
Dimensional Drawing
U18 Industrial Ultrasonic Sensors 50-500mm Detection Range 0-50mm Blind Zone 0
