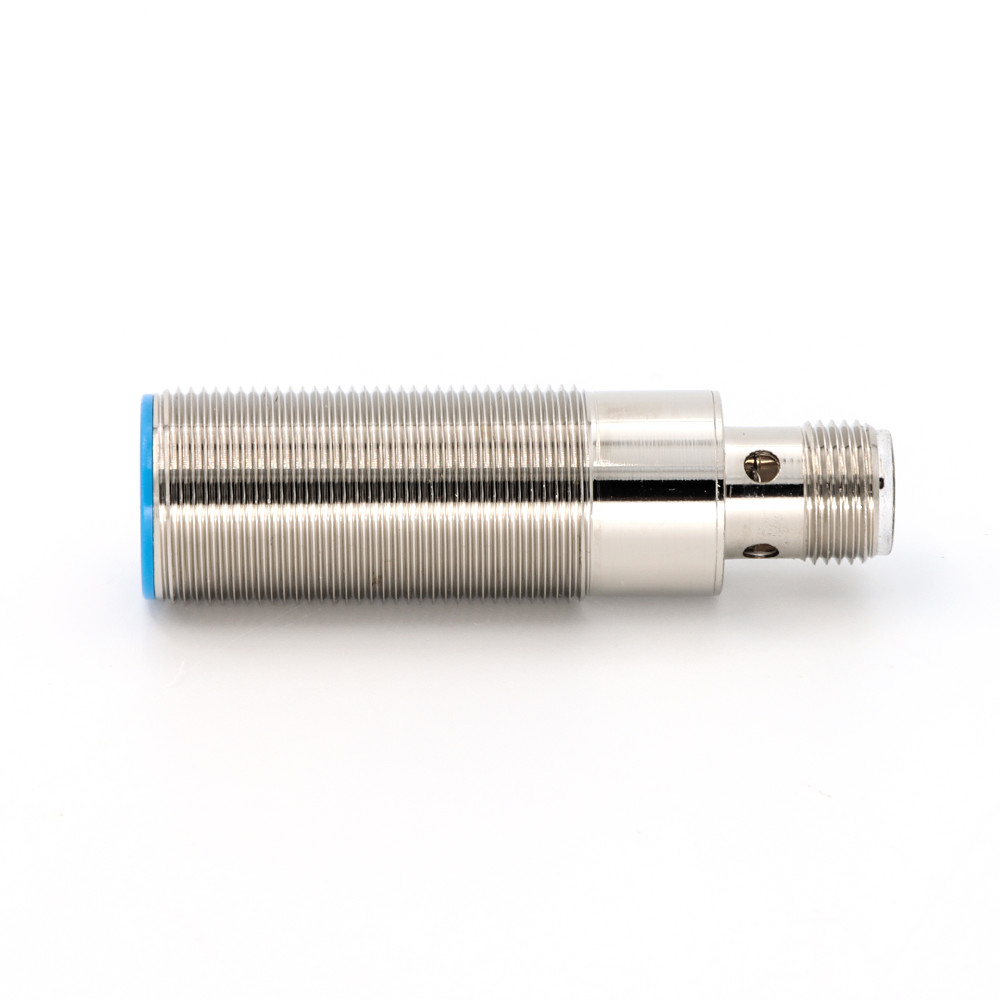

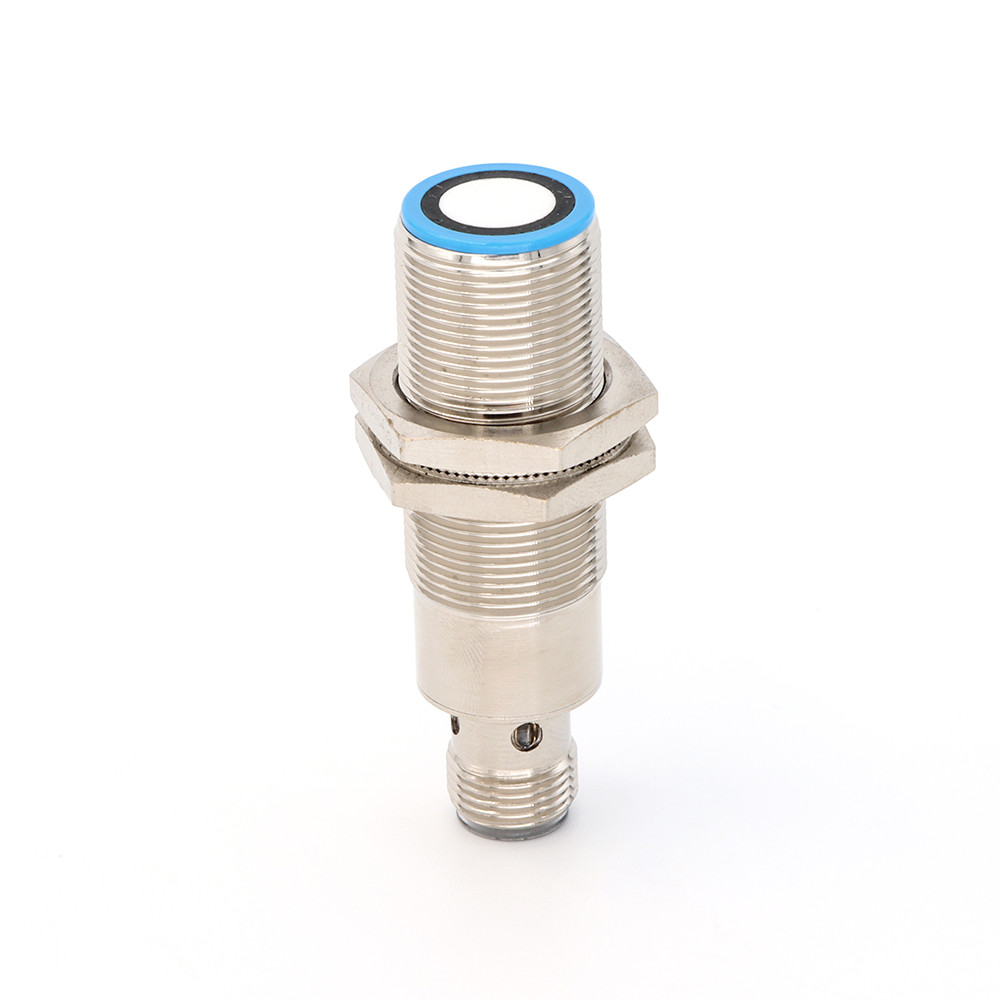

5pin U18 Ultrasonic Sensor Industrial Applications 0-50mm Blind Zone IP67

10 pieces
MOQ
Negotiable
Price
5pin U18 Ultrasonic Sensor Industrial Applications 0-50mm Blind Zone IP67
Features Gallery Product Description Request A Quote
Features
Specifications
Description: Ultrasonic Sensor
Enclosure Rating: IP67
Resolution: 0.15mm
Repeatability: ±0.15%F.S.
Accuracy: ±1%
No-load Current: ≤30mA
Input Type: Teach-in And Synchronization
Connection Type: 5pin, M12 Connector
Highlight:

U18 Ultrasonic Sensor

,

5pin Ultrasonic Sensor Industrial Applications

,

Ultrasonic Sensor Industrial Applications IP67
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Kronz
Certification: CE
Model Number: U18-D500UT-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
5pin U18 Ultrasonic Sensor Industrial Applications 0-50mm Blind Zone IP67
Product Attributes
Attribute Value
Description Ultrasonic Sensor
Enclosure Rating IP67
Resolution 0.15mm
Repeatability ±0.15%F.S.
Accuracy ±1%
No-load Current ≤30mA
Input Type Teach-in and synchronization
Connection Type 5pin, M12 connector
Product Description
Ultrasonic Sensor U18 Analog Voltage Output 0-10mA Up/down 0-50mm Blind Zone

Ultrasonic sensor U118-D500UT-R00A has detection range 50-500mm, it supply voltage 10-30VDC, reverse-polarity protection. Analog voltage output 0-10V, Up/down. Ultrasonic sensors use ultrasonic waves for things like detecting the distance to an object, detecting the presence or absence of objects, and detecting the movement of objects.

Main Features
  • M18 mounting thread sleeve
  • Easy to install
Basic Features
  • Analog voltage output 0-10V, Up/down
  • Detection distance learning function is realized through gray lines
  • Temperature compensation
  • Standard working voltage DC 10-30V
Technical Data
Model U18-D500UT-R00A
Detection range 50-500mm
Blind zone 0-50mm
Resolution 0.15mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 32ms
Initialization time ＜ 500ms
Supply voltage 10-30V DC, reverse-polarity protected
Red LED no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection 200mA, Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current ≤30mA
Input type teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~ +70℃(248~343K)
Storage temperature -40℃ ~ +85℃(233~358K)
Weight 35g
Output type U: 1 analog voltage output 0-10V, Up/down
Dimensional Drawing
5pin U18 Ultrasonic Sensor Industrial Applications 0-50mm Blind Zone IP67 0
