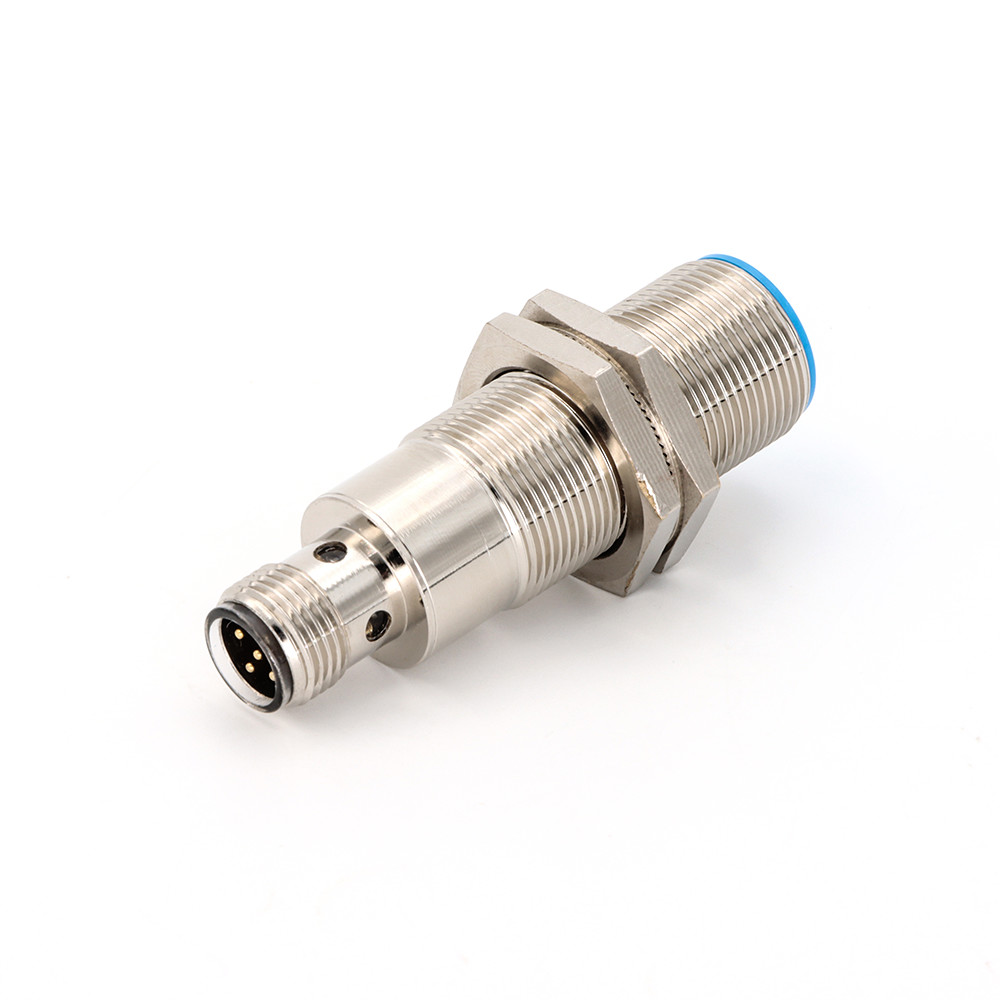

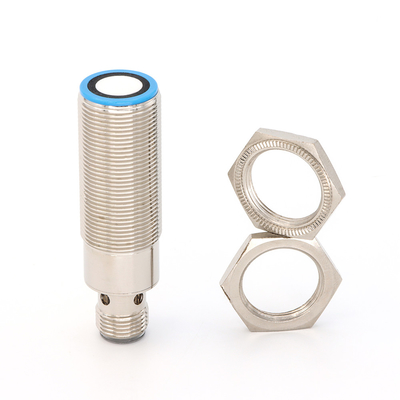

M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA

Brand Name:	Kronz
Model Number:	U18-D500UIT-R00A
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Production Name:

U18 Ultrasonic Sensor

Sopply Voltage:

10-30VDC

Blind Zone:

0-50mm

Resolution:

0.15mm

Response Time:

No-load Current:

≤30mA

Input Type:

Teach-in And Synchronization

Weight:

Supply Ability:

100000 pieces per month

Highlight:

M12 Connector Ultrasonic Sensor

M12 Connector Ultrasonic Sensor U18

20mA Ultrasonic Sensor U18

Product Description

M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA

Product Specifications

Attribute	Value
Production Name	U18 Ultrasonic Sensor
Supply Voltage	10-30VDC
Blind Zone	0-50mm
Resolution	0.15mm
Response Time	32ms
No-load Current	≤30mA
Input type	Teach-in and synchronization
Weight	35g

Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA Detection 50-500mm M12 Connector

The U18-D500UIT-R00A ultrasonic sensor features a detection range of 50-500mm with 10-30VDC supply voltage and reverse-polarity protection. This sensor provides both analog voltage output (0-10V) and analog current output (4-20mA) with up/down capability, making it ideal for precise distance measurement and object detection applications.

Key Features

M18 mounting thread sleeve for easy installation
Dual output: 0-10V analog voltage and 4-20mA analog current
Detection distance learning function via gray lines
Built-in temperature compensation
Standard working voltage DC 10-30V

Technical Specifications

Model	U18-D500UIT-R00A
Detection range	50-500mm
Blind zone	0-50mm
Resolution	0.15mm
Repeatability	±0.15%F.S.
Accuracy	±1% (with temperature compensation)
Response time	32ms
Initialization time	< 500ms
Supply voltage	10-30V DC, reverse-polarity protected
LED indicators	Red (no object detected), Green (object detected)
Overcurrent protection	200mA
Load impedance	I/ < 300 Ohm, U/ > 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~ +70℃
Storage temperature	-40℃ ~ +85℃
Weight	35g
Output type	1 analog voltage output 0-10V + 1 analog current output 4-20mA, up/down

Dimensional Drawing
