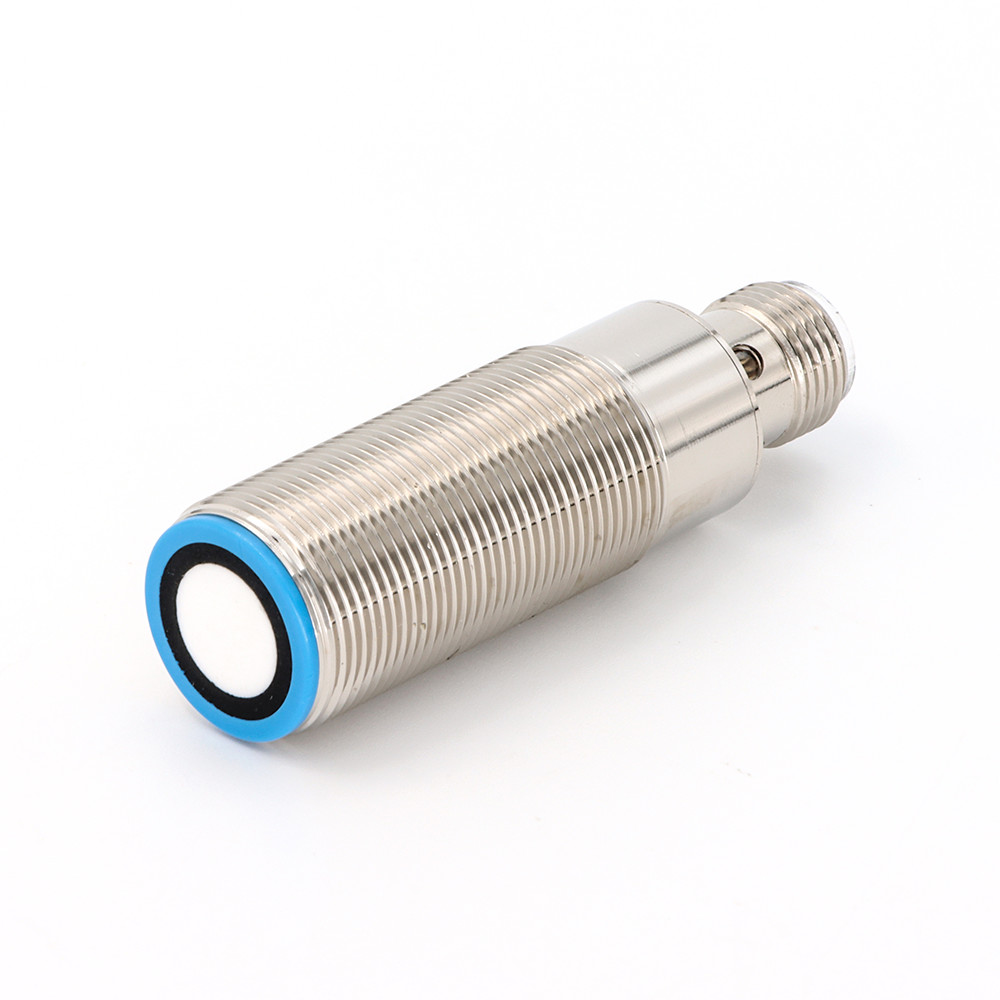

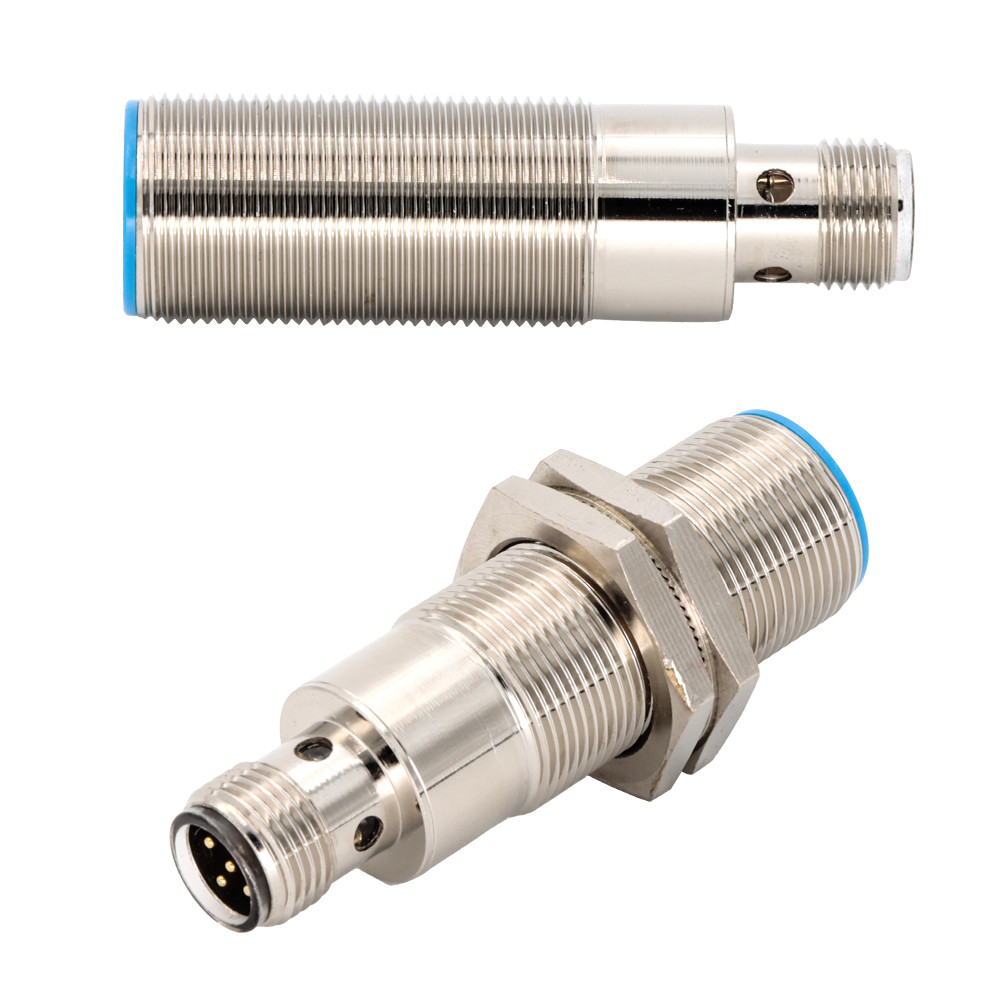

U18 Industrial Ultrasonic Sensors Analog Switching Output NPN 5pin M12 Connector

Brand Name: Kronz
Model Number: U18-D500N2IT-R00A
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Production Name:
U18 Ultrasonic Sensors
Sopply Voltage:
10-30VDC
Blind Zone:
0-50mm
Enclosure Rating:
IP67
Connection Type:
5pin, M12 Connector
No-load Current:
≤30mA
Ambient Temperature:
-25℃ ~+70℃（248~343K）
Storage Temperature:
-40℃ ~+85℃（233~358K）
Supply Ability:
100000 pieces per month
Highlight:

U18 Industrial Ultrasonic Sensors

,

5pin M12 Industrial Ultrasonic Sensors

,

Analog Switching Output NPN Ultrasonic Sensors

Product Description
U18 Industrial Ultrasonic Sensors Analog Switching Output NPN 5pin M12 Connector
Product Specifications
Attribute Value
Production Name U18 Ultrasonic Sensors
Supply Voltage 10-30VDC
Blind Zone 0-50mm
Enclosure rating IP67
Connection type 5pin, M12 connector
No-load Current ≤30mA
Ambient temperature -25℃ ~+70℃（248~343K）
Storage temperature -40℃ ~+85℃（233~358K）
Product Overview

Ultrasonic sensor U118-D500N2IT-R00A features a detection range of 50-500mm with 10-30VDC supply voltage and reverse-polarity protection. This sensor provides 1 analog current output (4-20mA) plus 1 switching output (NPN, Up/down, NO/NC). Ultrasonic sensors utilize ultrasonic waves for precise object detection, distance measurement, and movement tracking.

Key Features
  • M18 mounting thread sleeve for easy installation
  • Dual output: 1 analog current (4-20mA) + 1 switching output (NPN)
  • Distance learning function via gray lines
  • Built-in temperature compensation
  • Standard operating voltage: DC 10-30V
Technical Specifications
Parameter Specification
Model U18-D500N2IT-R00A
Detection range 50-500mm
Blind zone 0-50mm
Resolution 0.15mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with temperature drift compensation)
Response time 32ms
Initialization time < 500ms
LED indicators Red (no object), Green (object detected)
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Weight 35g
Dimensional Drawing
U18 Industrial Ultrasonic Sensors Analog Switching Output NPN 5pin M12 Connector 0
