Name: Copper Nickel Plated Ultrasonic Sensor U18 Analog Output 4-20mA NPN 10-30VDC
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: U18-D300N2IT-R00A
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Production Name: U18 Ultrasonic Sensors

Supply Voltage: 10-30VDC

Blind Zone: 0-30mm

Resolution: 0.1mm

LED: Red, Green

Material: Copper Nikel-plated

Enclosure Rating: IP67

Weight: 35g

Highlight:

Copper Nickel Plated Ultrasonic Sensor

Ultrasonic Sensor 30VDC

20mA NPN Ultrasonic Sensor

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Kronz

Certification: CE

Model Number: U18-D300N2IT-R00A

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

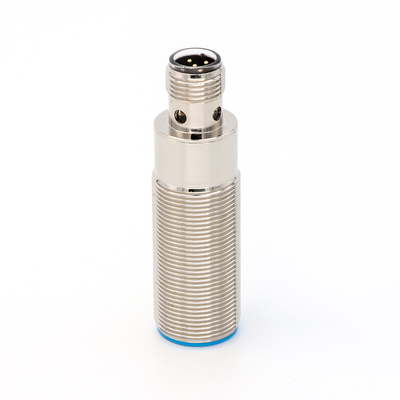

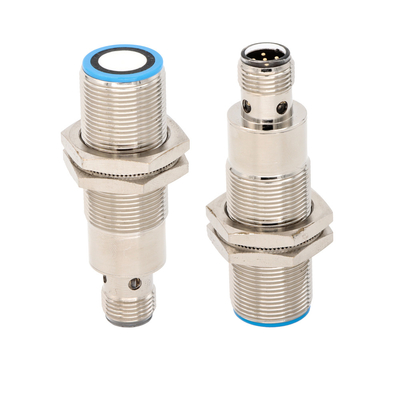

Copper Nickel Plated Ultrasonic Sensor U18 Analog Output 4-20mA NPN 10-30VDC

Product Description

Ultrasonic Sensor U18 Analog Output 4-20mA NPN 30-300mm IP67 Supply 10-30VDC

Product Description

Ultrasonic sensor U118-D300N2IT-R00A has detection range 30-300mm, it supply voltage 10-30VDC,reverse-polarity protection. Output type 1 analog current output 4-20mA +1 switching output npn, Up/down, NO/NC.Ultrasonic sensors use ultrasonic waves for things like detecting the distance to an object, detecting the presence or absence of objects, and detecting the movement of objects.

Main Feature

M18 mounting thread sleeve
Easy to install

Basic Feature

1 analog current output 4-20mA +1 switching output npn, Up/down, NO/NC
Detection distance learning function is realized throught gray lines
Temperature compensation
Standard working voltage DC 10-30V

Technical Data

Model	U18-D300N2IT-R00A
Dection range	30-300mm
Blind zone	0-30mm
Resolution	0.1mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	22ms
Initialization time	＜ 500ms
Supply voltage	10-30V DC, reverse-polarity protected
Red LED	no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED	object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection	200mA,Red LED and Green LED flashing at the same time
Load impedance	I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	35g
Output type	N2I: 1 analog current output 4-20mA +1 switching output npn, Up/down, NO/NC
Dimensional drawing
