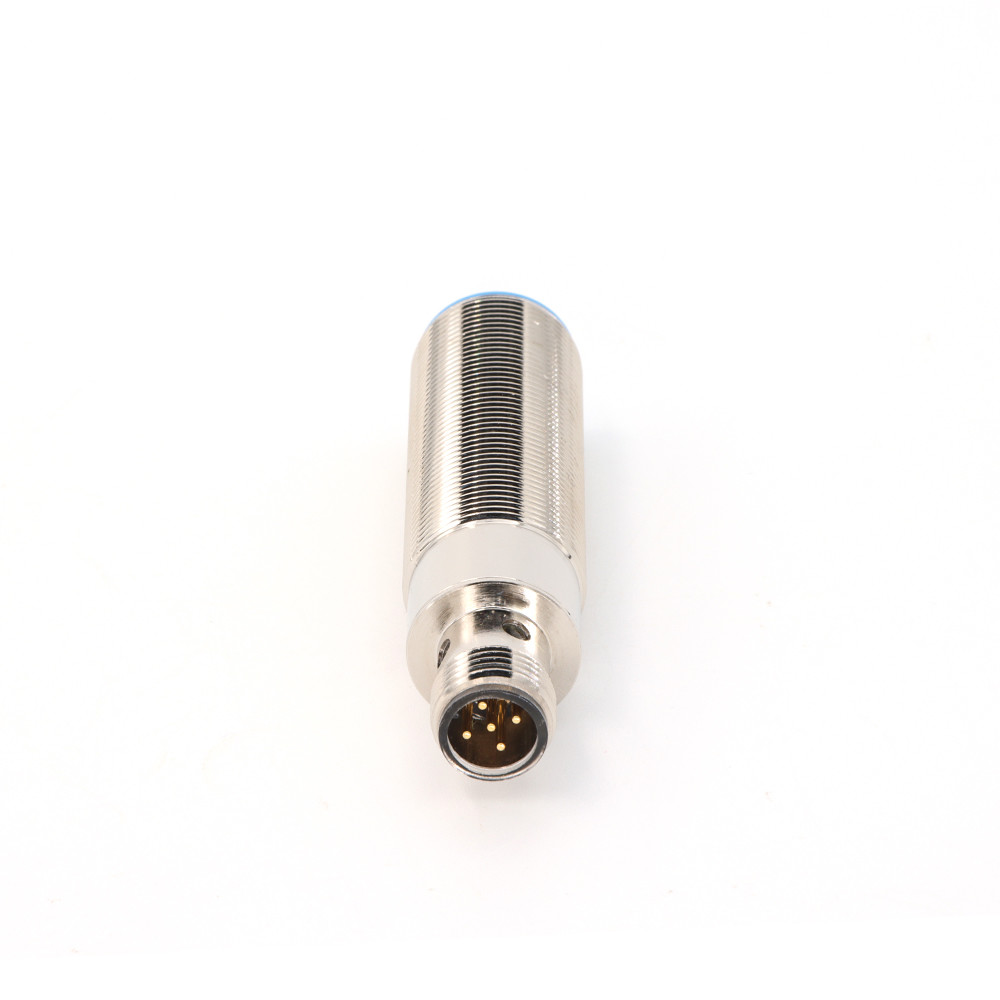

Analog Current Output Industrial Ultrasonic Sensors Detection Range 60-1000mm

Brand Name:	Kronz
Model Number:	U18-D1000IT-R00A
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Production Name:

U18 Ultrasonic Sensors

Detection Range:

60-1000mm

Blind Zone:

0-60mm

Resolution:

0.17mm

Response Time:

Output:

Analog Current

Connecting Type:

5pin, M12 Connector

Weight:

Supply Ability:

100000 pieces per month

Highlight:

Analog Current Industrial Ultrasonic Sensors

1000mm Detection Industrial Ultrasonic Sensors

Analog Current Output Ultrasonic Sensors

Product Description

Analog Current Output Industrial Ultrasonic Sensors Detection Range 60-1000mm

Product Specifications

Attribute	Value
Production Name	U18 Ultrasonic Sensors
Detection Range	60-1000mm
Blind Zone	0-60mm
Resolution	0.17mm
Response Time	52ms
Output	Analog Current
Connecting type	5pin, M12 connector
Weight	38g

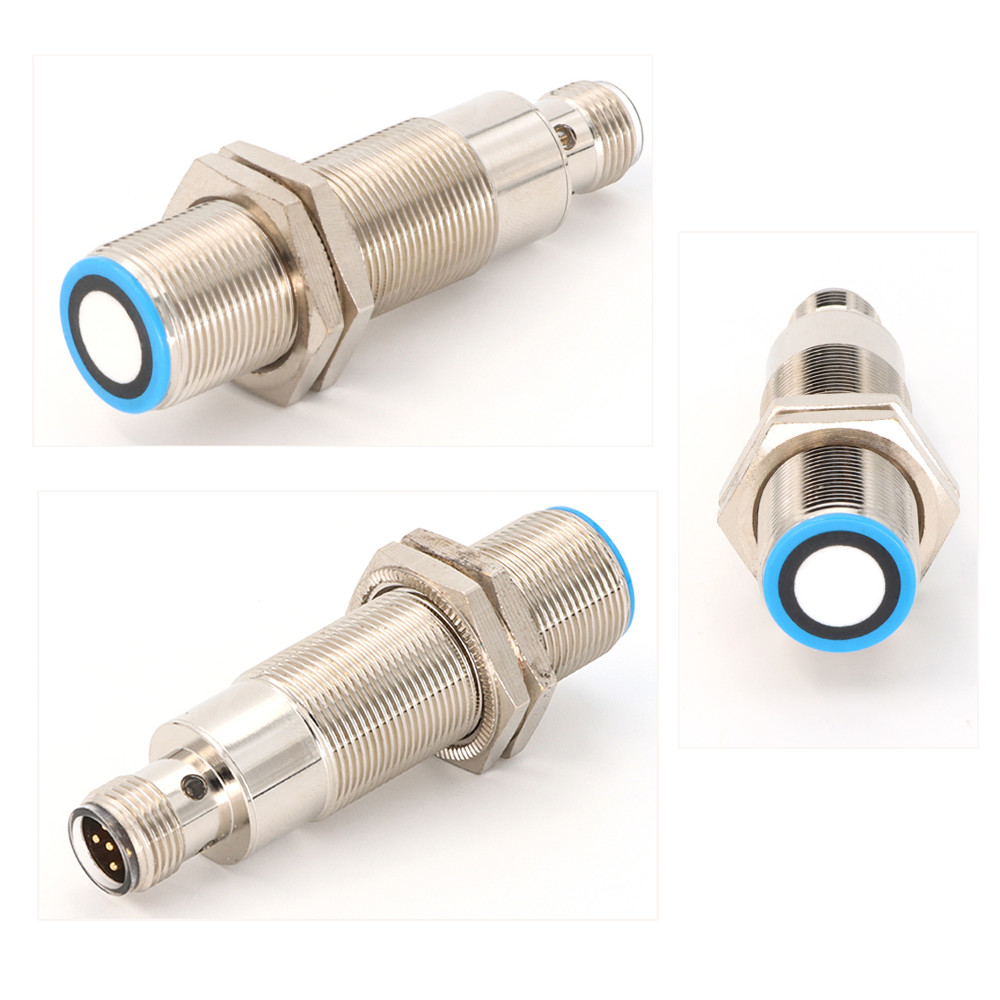

Ultrasonic Sensor U18 Analog Current Output 4-20mA Detection Range 60-1000mm

The U18-D1000IT-R00A ultrasonic sensor features a detection range of 60-1000mm with 10-30VDC supply voltage and reverse-polarity protection. This industrial-grade sensor utilizes ultrasonic waves for precise distance measurement, object detection, and movement tracking.

Key Features

M18 mounting thread sleeve for easy installation
Analog current output (4-20mA) with up/down configuration
Detection distance learning via gray lines
Built-in temperature compensation
Standard working voltage: DC 10-30V

Technical Specifications

Model	U18-D1000IT-R00A
Detection range	60-1000mm
Blind zone	0-60mm
Resolution	0.17mm
Repeatability	±0.15%F.S.
Accuracy	±1% (with temperature drift compensation)
Response time	52ms
Initialization time	< 500ms
Supply voltage	10-30V DC, reverse-polarity protected
LED indicators	Red (no object detected), Green (object detected)
Overcurrent protection	200mA
Load impedance	I/ < 300 Ohm, U/ > 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ to +70℃
Storage temperature	-40℃ to +85℃
Weight	38g
Output type	1 analog current output 4-20mA Up/down

Dimensional Drawing
