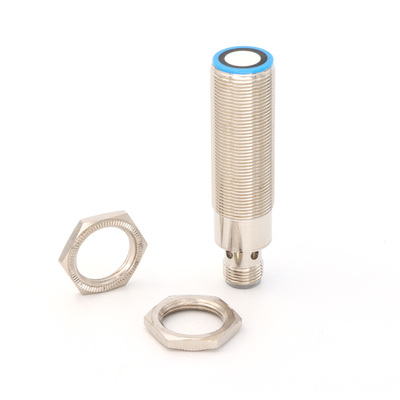

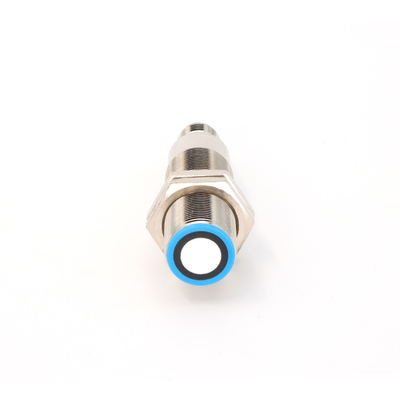

U18 Ultrasonic Sensors Analog Output Voltage 0-10V Up/Down 52ms Response Time

10 pieces
MOQ
Negotiable
Price
U18 Ultrasonic Sensors Analog Output Voltage 0-10V Up/Down 52ms Response Time
Features Gallery Product Description Request A Quote
Features
Specifications
Production Name: U18 Ultrasonic Sensors
Analog Output: Voltage 0-10V, Up/down
No-load Current: ≤30mA
Resolution: 0.17mm
Response Time: 52ms
Output: Analog Current
Connecting Type: 5pin, M12 Connector
Supply Voltage: 10-30VDC
Highlight:

U18 Ultrasonic Sensors

,

52ms Response Time Ultrasonic Sensors

,

Analog Output Voltage 10V Ultrasonic Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Kronz
Certification: CE
Model Number: U18-D1000UT-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
U18 Ultrasonic Sensors Analog Output Voltage 0-10V Up/Down 52ms Response Time
Product Attributes
Attribute Value
Production Name U18 Ultrasonic Sensors
Analog Output Voltage 0-10V, Up/down
No-load Current ≤30mA
Resolution 0.17mm
Response Time 52ms
Output Analog Current
Connecting type 5pin, M12 connector
Supply Voltage 10-30VDC
Product Overview

The U18-D1000UT-R00A ultrasonic sensor features a detection range of 60-1000mm with 10-30VDC supply voltage and reverse-polarity protection. This industrial-grade sensor provides precise 0-10V analog voltage output (up/down) with fast 52ms response time, making it ideal for distance measurement and object detection applications.

Key Features
  • M18 mounting thread sleeve for easy installation
  • Precision analog voltage output (0-10V up/down)
  • Detection distance learning via gray lines
  • Built-in temperature compensation
  • Standard working voltage DC 10-30V
  • Fast 52ms response time
  • High resolution (0.17mm)
  • IP67 rated enclosure for industrial environments
Technical Specifications
Model U18-D1000UT-R00A
Detection range 60-1000mm
Blind zone 0-60mm
Resolution 0.17mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with temperature compensation)
Response time 52ms
Initialization time < 500ms
Supply voltage 10-30V DC (reverse-polarity protected)
LED indicators Red (no object), Green (object detected)
Overcurrent protection 200mA
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ to +70℃
Storage temperature -40℃ to +85℃
Weight 38g
Dimensional Drawing
U18 Ultrasonic Sensors Analog Output Voltage 0-10V Up/Down 52ms Response Time 0
