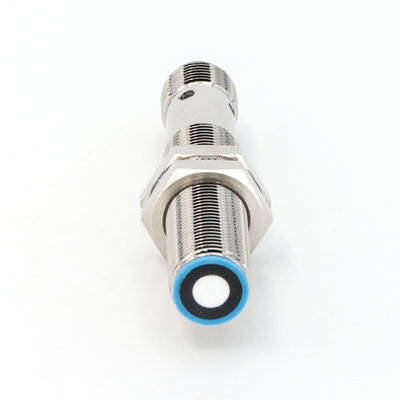

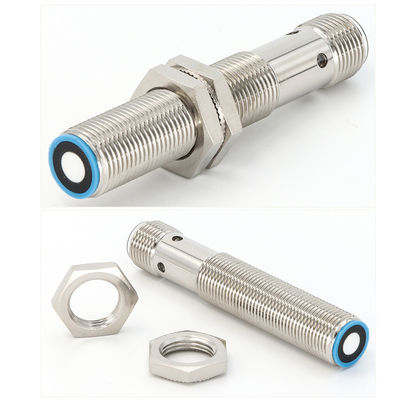

U12 Industrial Ultrasonic Sensors Switching Output NPN PNP NO/NC Supply 10-30VDC
  • Name
  • Name

U12 Industrial Ultrasonic Sensors Switching Output NPN PNP NO/NC Supply 10-30VDC

Brand Name: KRONZ
Model Number: U12-D120N(P)2T-R00A
MOQ: 5 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Features:
Easy To Instal
Description:
U12 Ultrasonic Sensors
Connection:
4 Pin, M12 Connector
Detection Range:
20-120mm
Blind Zone:
0-20mm
Resolution:
0.1mm
Initialization Time:
＜ 500ms
Switching Frequency:
55Hz
Supply Ability:
100000 pieces per month
Highlight:

Industrial Ultrasonic Sensors 30VDC

,

NPN Industrial Ultrasonic Sensors

,

PNP Industrial Ultrasonic Sensors

Product Description
U12 Industrial Ultrasonic Sensors Switching Output NPN PNP NO/NC Supply 10-30VDC
Key Features
  • Compact M12 threaded sleeve design with full length of only 57mm
  • Minimal blind zone and narrow sound cone for precise close-range detection
  • NPN or PNP switching output configuration
  • Distance learning function via white line detection
  • Built-in temperature compensation for stable performance
  • Standard operating voltage DC 10-30V with reverse-polarity protection

Technical Specifications
Model U12-D120N(P)2T-R00A
Detection Range 20-120mm
Blind Zone 0-20mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with temperature compensation)
Response Time 18ms
Switching Hysteresis 1mm
Switching Frequency 55Hz
Initialization Time < 500ms
Supply Voltage 10-30V DC with reverse-polarity protection
LED Indicators Red LED: Lights when no object detected, flashes during teaching-in
Green LED: Lights when object detected, flashes during teaching-in
Protection Overcurrent protection at 200mA (LEDs flash simultaneously)
Load Impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load Current ≤30mA
Input Type Teach-in and synchronization
Construction Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure Rating IP67
Connection 4-pin M12 connector
Operating Temperature -25℃ to +70℃
Storage Temperature -40℃ to +85℃
Weight 16g
Output Options N2: 1 NPN switching output NO/NC
P2: 1 PNP switching output NO/NC
Dimensional Drawing
U12 Industrial Ultrasonic Sensors Switching Output NPN PNP NO/NC Supply 10-30VDC 0
