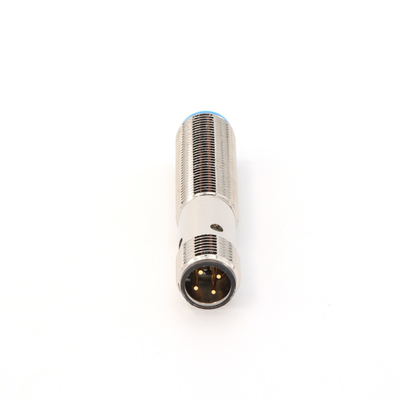

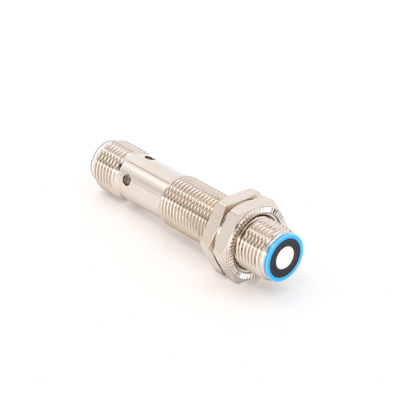

U12 Ultrasonic Sensor Detection Range 20-200mm NPN PNP Switching Output NO/NC

5 pieces
MOQ
Negotiable
Price
U12 Ultrasonic Sensor Detection Range 20-200mm NPN PNP Switching Output NO/NC
Features Gallery Product Description Request A Quote
Features
Specifications
Description: Ultrasonic Sensors 20-200mm
Inpuy Type: Teach-in And Synchronization
Connection: 4 Pin, M12 Connector
Load Impedance: I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
Blind Zone: 0-20mm
Resolution: 0.1mm
Initialization Time: ＜ 500ms
Ambient Temperature: -25℃ ~+70℃（248~343K）
Highlight:

U12 Ultrasonic Sensor NPN

,

U12 Ultrasonic Sensor PNP

,

200mm Detection Range Ultrasonic Sensor
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U12-D200N(P)1T-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
U12 Ultrasonic Sensor Detection Range 20-200mm NPN PNP Switching Output NO/NC
Key Specifications
Attribute Value
Description Ultrasonic Sensors 20-200mm
Input Type Teach-in and Synchronization
Connection 4 pin, M12 connector
Load Impedance I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
Blind zone 0-20mm
Resolution 0.1mm
Initialization time ＜ 500ms
Ambient Temperature -25℃ ~ +70℃ (248~343K)
Product Features
  • Compact design: M12 installation threaded sleeve with full length of only 57mm
  • Precision detection: Small blind zone and sound cone for close-range fine detection
  • Flexible output: 1 NPN or PNP switching output (NO/NC)
  • Smart functionality: Detection distance learning through white lines
  • Temperature compensation: Ensures stable performance across operating range
Technical Specifications
Parameter Value
Model U12-D200N(P)1T-R00A
Detection range 20-200mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with temperature drift compensation)
Response time 22ms
Switching frequency 45Hz
Supply voltage 10-30V DC with reverse-polarity protection
LED indicators Red (no object), Green (object detected)
Protection 200mA overcurrent protection
No-load current ≤30mA
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Storage temperature -40℃ ~ +85℃ (233~358K)
Weight 20g
Output Configuration
  • N2: 1 NPN switching output (NO/NC)
  • P2: 1 PNP switching output (NO/NC)
Dimensional Drawing
U12 Ultrasonic Sensor Detection Range 20-200mm NPN PNP Switching Output NO/NC 0
