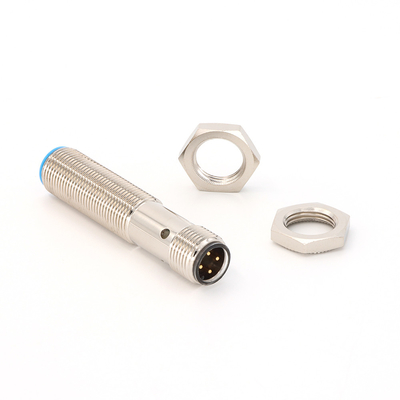

M12 Connector Industrial Ultrasonic Sensors U12 Detection 20-200mm 4 Pin

5 pieces
MOQ
Negotiable
Price
M12 Connector Industrial Ultrasonic Sensors U12 Detection 20-200mm 4 Pin
Features Gallery Product Description Request A Quote
Features
Specifications
Description: Ultrasonic Sensors 20-200mm
Switching Frequency: 45hz
Supply Voltage: 10-30V DC
LED Color: Green, Red
Blind Zone: 0-20mm
Resolution: 0.1mm
No-load Current: ≤30mA
Weight: 20g
Highlight:

200mm Detection Industrial Ultrasonic Sensors

,

M12 Connector Industrial Ultrasonic Sensors U12

,

Industrial Ultrasonic Sensors U12 4 Pin
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U12-D200N(P)2T-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M12 Connector Industrial Ultrasonic Sensors U12 Detection 20-200mm 4 Pin
Key Specifications
Attribute Value
Description Ultrasonic Sensors 20-200mm
Switching frequency 45Hz
Supply voltage 10-30V DC
LED Color Green, Red
Blind zone 0-20mm
Resolution 0.1mm
No-load Current ≤30mA
Weight 20g

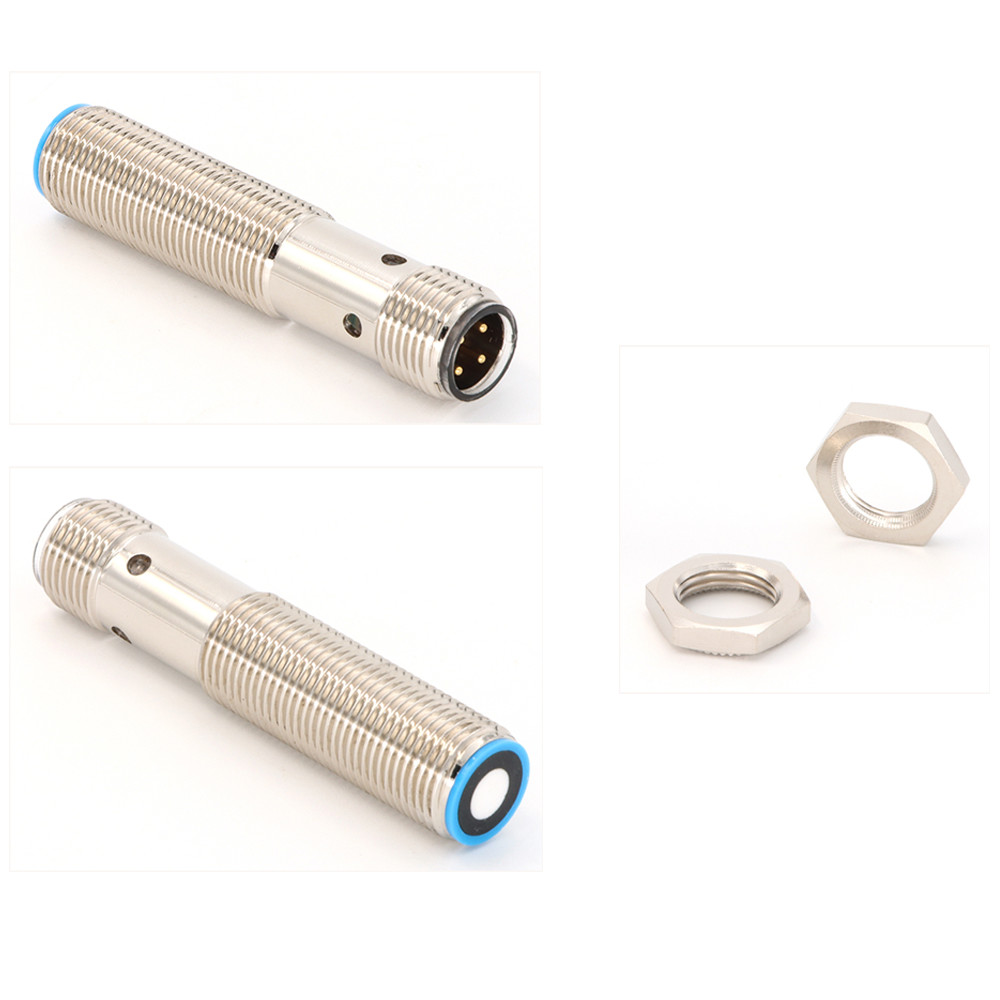

Ultrasonic Sensor U12 Detection 20-200mm Switching Output 4 Pin M12 Connector
Main Features
  • M12 installation threaded sleeve, the shortest full length is only 57mm
  • Small blind zone, small sound cone, suitable for close-range fine detection
Basic Features
  • 1 pc npn or pnp switching output
  • Realize detection distance learning function through white lines
  • Temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model U12-D200N(P)2T-R00A
Detection range 20-200mm
Blind zone 0-20mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 22ms
Switching hysteresis 1mm
Switching frequency 45Hz
Initialization time ＜ 500ms
Supply voltage 10-30V DC, reverse-polarity protection
Red LED No object detected: Lights up, teaching-in when no object detected: Flashes
Green LED Object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection 200mA, Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current ≤30mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 4pin, M12 connector
Ambient temperature -25℃ ~ +70℃ (248~343K)
Storage temperature -40℃ ~ +85℃ (233~358K)
Weight 20g
Output type N2: 1 npn switching output NO/NC
P2: 1 pnp switching output NO/NC
Dimensional Drawing
M12 Connector Industrial Ultrasonic Sensors U12 Detection 20-200mm 4 Pin 0
