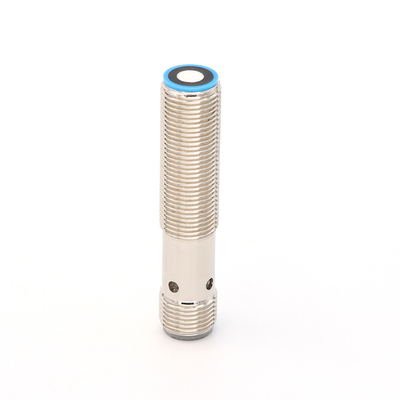

U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67

5 pieces
MOQ
Negotiable
Price
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
Features Gallery Product Description Request A Quote
Features
Specifications
Description: U12 Ultrasonic Sensors 20-200mm
Detection Range: 20-200mm
Output: Analog Current Output 4-20mA
Supply Voltage: 10-30V DC,reverse-polarity Protection
Blind Zone: 0-20mm
Repeatability: ±0.15% F.S.
Response Time: 22ms
No-load Current: ≤30mA
Highlight:

U12 Industrial Ultrasonic Sensor

,

Industrial Ultrasonic Sensor 4 Pin

,

Industrial Ultrasonic Sensor IP67
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U12-D200IT-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
Key Specifications
Attribute Value
Description U12 Ultrasonic Sensors 20-200mm
Detection Range 20-200mm
Output Analog current output 4-20mA
Supply Voltage 10-30V DC, reverse-polarity protection
Blind zone 0-20mm
Repeatability ±0.15% F.S.
Response Time 22ms
No-load Current ≤30mA
Product Overview

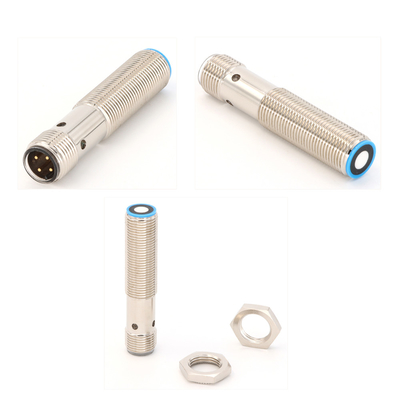

The U12 Ultrasonic Sensor features a 20-200mm detection range with 4-pin M12 connector and IP67 enclosure rating, making it ideal for industrial applications requiring precise close-range detection.

Main Features
  • M12 installation threaded sleeve with compact 57mm length
  • Minimal blind zone and narrow sound cone for fine detection
  • Analog current output (4-20mA)
  • Distance learning function via white lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model U12-D200IT-R00A
Detection range 20-200mm
Blind zone 0-20mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with temperature drift compensation)
Response time 22ms
Initialization time < 500ms
Supply voltage 10-30V DC, reverse-polarity protection
LED Indicators Red: No object detected (Lights up), Green: Object detected (Lights up)
Overcurrent protection 200mA (LEDs flash simultaneously)
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 4-pin M12 connector
Ambient temperature -25℃ to +70℃ (248~343K)
Storage temperature -40℃ to +85℃ (233~358K)
Weight 20g
Output type I: 1 analog current output 0-10V
Dimensional Drawing
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67 0
