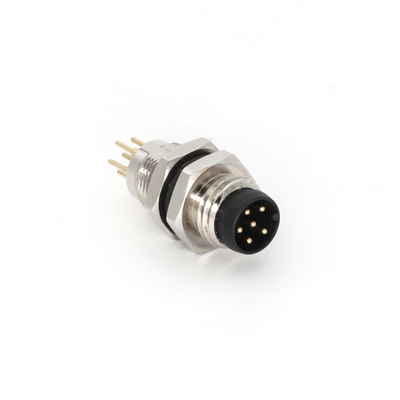

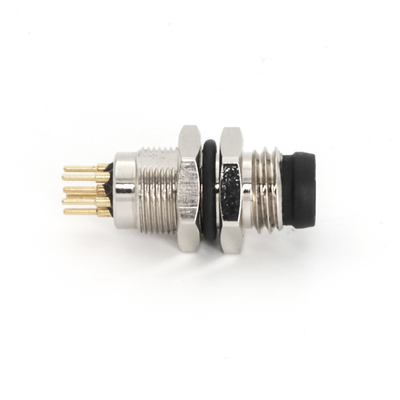

Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight

50 pieces
MOQ
Negotiable
Price
Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight
Features Gallery Product Description Chat Now
Features
Specifications
Description: M8 Connector
Mounting Type: Rear
Housing Material: Brass,nickel-plated
Material: Brass,gold-plated
Contact Resistance: ≤5mΩ
Degree Of Protection: IP67
Highlight:

Panel Mount M8 Connector 6 Pin

,

Rear Mounting M8 Connector 6 Pin

,

PCB M8 6 Pin Male Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: F0806M-PR/M8
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight
Product Attributes
Attribute Value
Description M8 connector
Mounting Type Rear
Housing Material Brass, nickel-plated
Material Brass, gold-plated
Contact Resistance ≤5mΩ
Degree of Protection IP67
Product Description

M8 Panel Mount Connector 6 Pin Male A Code Rear Mounting PCB Version Straight

In security monitoring applications, M8 flange connectors provide critical performance advantages. Their compact design meets space requirements while offering excellent interference resistance, ensuring stable connections between cameras, monitors, and other equipment for high-quality image and data transmission.

Key applications include:

  • Outdoor monitoring equipment - withstands harsh weather conditions while maintaining stable connections
  • Complex electromagnetic environments - effectively resists interference for clear, continuous monitoring signals
Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight 0
Technical Specifications
Specification Value
Standard IEC 61076-2-104
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Model No.
Panel Mount M8 Connector 6 Pin Male A Code Rear Mounting PCB Version Straight 1 Rear mounting A 3A 60V Straight PCB version M0806M-PF/M8
