Attribute | Value |
---|---|
Description | M8 connector |
Cable Outlet | Straight |
Material | PA, black |
Pin Option | 3/4/5/6/8 Pin |
Pollution Degree | 3 |
Standard | IEC 61076-2-104 |

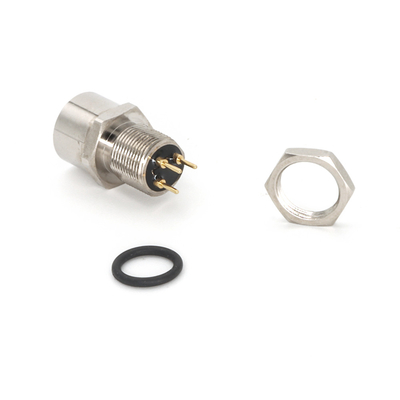

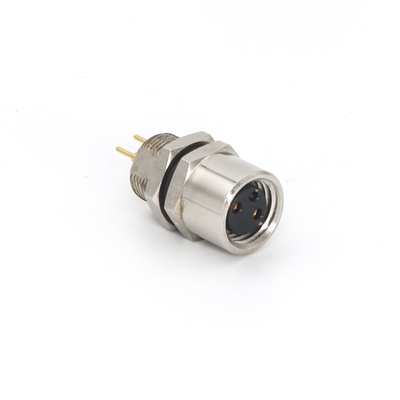

M8 Panel Mount Connector IEC 61076-2-104 Female Rear Mounting PCB M8 x 0.5
In demanding industrial environments like steel smelting, our M8 panel mount connectors withstand extreme conditions including high temperatures, strong corrosion, and heavy vibration. Key features include:
Applications include steel-making furnace control systems where stable high-temperature operation and precise signal transmission are critical, and pickling processes where chemical resistance ensures reliable equipment performance.
Specification | Value |
---|---|
Standard | IEC 61076-2-104 |
Contact nut material | Brass, nickel-plated |
Contact surface material | Brass, gold-plated |
Contact carrier material | PA, black |
Housing material | Brass, nickel-plated |
Seal material | FPM/FKM |
Insulation resistance | ≥100MΩ |
Contact resistance | ≤5mΩ |
Pollution degree | 3 |
Ambient temperature | -25~+85℃ |
Mating cycles | >100 |
Degree of protection | IP67 |
Pin Assignment | Mounting Type | Coding | Rated Current | Voltage | Cable Outlet | Contacts Termination | Model No. |
---|---|---|---|---|---|---|---|
![]() |
Rear mounting | A | 3A | 60V | Straight | PCB version | M0803F-PR/M8 |
