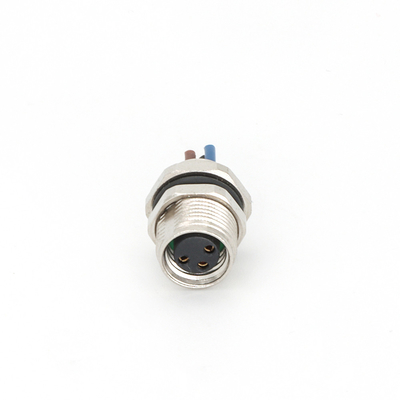

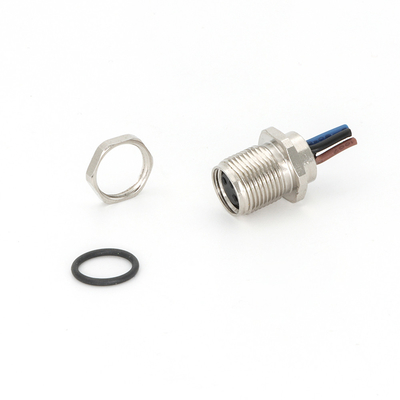

M8 Panel Mount Connector 0.5m Pre-Wired Female Front Mounting Straight 3 Pin A Code

50 pieces
MOQ
Negotiable
Price
M8 Panel Mount Connector 0.5m Pre-Wired Female Front Mounting Straight 3 Pin A Code
Features Gallery Product Description Request A Quote
Features
Specifications
Description: M8 Panel Mount Connector
Contacts: 0.5m Pre-wired
Type: Front Mounting
Standard: IEC 61076-2-104
Coding: A
Material: Brass,nickel-plated
Highlight:

M8 Panel Mount Connector

,

Female M8 Panel Mount Connector

,

0.5m Pre Wired M8 Female Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: F0803F-0.5F/M8
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M8 Panel Mount Connector 0.5m Pre-Wired Female Front Mounting Straight 3 Pin A Code
Product Specifications
Attribute Value
Description M8 panel mount connector
Contacts 0.5m pre-wired
Type Front mounting
Standard IEC 61076-2-104
Coding A
Material Brass, nickel-plated
Product Overview

The M8 Panel Mount Connector is engineered for diverse industrial applications with its robust construction and reliable performance. This 0.5m pre-wired female connector features front mounting configuration and straight cable outlet for convenient installation.

Industry Applications

This connector serves critical functions across multiple industries:

  • Automotive: High temperature, pressure, and vibration resistance
  • Industrial Automation: Superior interference protection and quick connection
  • Medical Equipment: Exceptional reliability and hygiene compliance
  • Security Monitoring: Compact design with interference resistance
  • Steel Smelting: High temperature and corrosion resistance
Technical Specifications
Parameter Specification
Standard IEC 61076-2-104
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin Assignment Mounting Type Coding Rated Current Voltage Cable Outlet Contacts Termination Model No.
M8 Panel Mount Connector 0.5m Pre-Wired Female Front Mounting Straight 3 Pin A Code 0 Front mounting A 3A 60V Straight 0.5m Pre-wired M0803F-0.5F/M8
