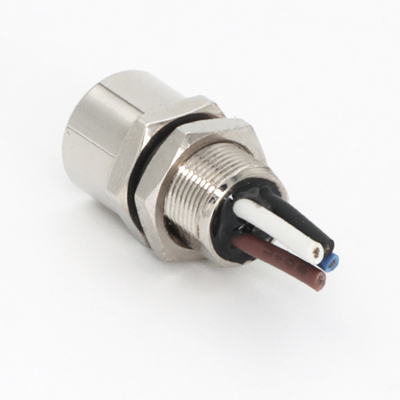

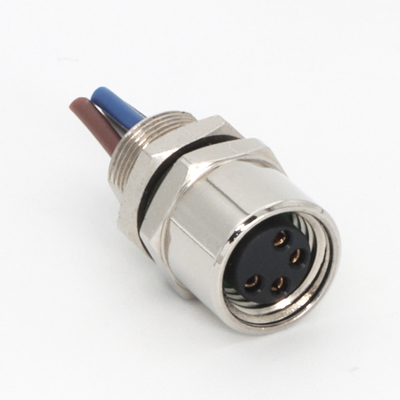

Flange M8 4 Pin Connector Rear Mounting Straight IP67 Pre-Wired IEC 61076-2-104
  • Name
  • Name

Flange M8 4 Pin Connector Rear Mounting Straight IP67 Pre-Wired IEC 61076-2-104

Brand Name: KRONZ
Model Number: F0804F-0.5R/M8
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Standard:
IEC 61076-2-104
Name:
M8 Flange Connector
Contact Resistance:
≤5mΩ
Housing Material:
Brass,gold-plated
Seal Material:
FPM/FKM
Ambient Temperature:
-25~+85℃
Supply Ability:
100000 pieces per month
Highlight:

Flange M8 4 Pin Connector

,

Rear Mounting M8 4 Pin Connector

,

IP67 M8 4 Pin Connector

Product Description
Flange M8 4 Pin Connector Rear Mounting Straight IP67 Pre-Wired IEC 61076-2-104
Product Attributes
Attribute Value
Standard IEC 61076-2-104
Name M8 flange connector
Contact Resistance ≤5mΩ
Housing Material Brass, gold-plated
Seal Material FPM/FKM
Ambient Temperature -25~+85℃
Product Description
M8 Flange Connector Rear Mounting Straight IP67 4 Pin Pre-wired IEC 61076-2-104
  • Panel mount connector widely used in sensor and actuator connections (photoelectric, proximity, pressure, temperature sensors, etc.)
  • Designed for excellent stability and reliable signal transmission accuracy during long-term operation
  • Withstands vibrations and shocks while maintaining performance
  • High protection rating (IP67) prevents dust and moisture ingress
  • Available in multiple pin configurations (3/4/6/8pin) for various signal transmission requirements
Flange M8 4 Pin Connector Rear Mounting Straight IP67 Pre-Wired IEC 61076-2-104 0
Technical Specifications
Standard IEC 61076-2-104
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Model No.
Flange M8 4 Pin Connector Rear Mounting Straight IP67 Pre-Wired IEC 61076-2-104 1 Rear mounting A 3A 60V Straight 0.5m Pre-wired M0804F-0.5R/M8
