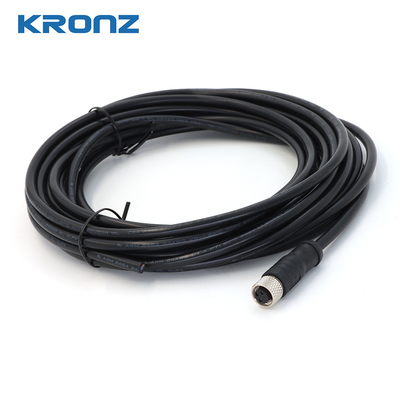

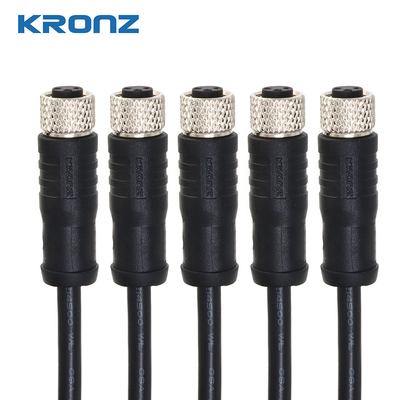

FPM/FKM Sealed TPU Black M8 Connector with IEC 61076-2-104 Certification

Brand Name:	KRONZ
Model Number:	M0803F-1/P00K
MOQ:	50
Price:	TBC
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Seal Material:

FPM/FKM

Housing Material:

TPU, Black

Standard:

IEC 61076-2-104

Contact Resistance:

Contact Nut Material:

Brass, Nickle-plated

Insulation Resistance:

≥100MΩ

Ambient Temperature:

-25~+85℃

Contact Surface Material:

Brass, Gold-plated

Supply Ability:

100000 pieces per month

Highlight:

iec 61076-2-104 m8 connector

iec 61076-2-104 m8 male connector

Product Description

FPM/FKM Sealed TPU Black M8 Connector with IEC 61076-2-104 Certification

Key Specifications

Seal material	FPM/FKM
Housing material	TPU, Black
Standard	IEC 61076-2-104
Contact resistance	≤5mΩ
Contact nut material	Brass, Nickle-plated
Insulation resistance	≥100MΩ
Ambient temperature	-25~+85℃
Contact surface material	Brass, Gold-plated

Product Overview

The M8 Connector features low contact resistance (≤5mΩ) for stable, reliable connections in precision measurement applications. With an IP67 rating, it provides complete protection against dust and water ingress, making it ideal for harsh environments.

The FPM/FKM seal material offers excellent chemical resistance against oils, fuels, and acids, ensuring long-term reliability. Manufactured to IEC 61076-2-104 standards, this connector guarantees compatibility with industry systems.

Applications

Automation Systems: Secure sensor connections in tight spaces
Robotics: Durable connections for motors and sensors
Industrial Networking: Reliable equipment connections
Medical Devices: Chemical-resistant sensor connections
Renewable Energy: Weatherproof connections for solar/wind systems

Technical Specifications

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Assignment

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 3=BU 4=BK	A	3A	60V	3x0.25 (3x24AWG) PVC,black	Straight	1M	M0803F-1/P00K

Customization Options

KRONZ offers customization services for the M8 Connector (Model: M0803F-1/P00K). This circular connector is suitable for sensor and locking applications with the following specifications:

Manufactured in Guangdong, China with CE certification
Minimum order quantity: 50 pieces
Packaging: Polybag
Delivery time: 5-8 working days
Payment terms: T/T, Western Union, MoneyGram
Monthly production capacity: 100,000 pieces
