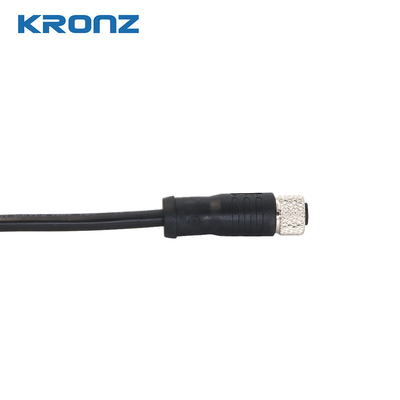

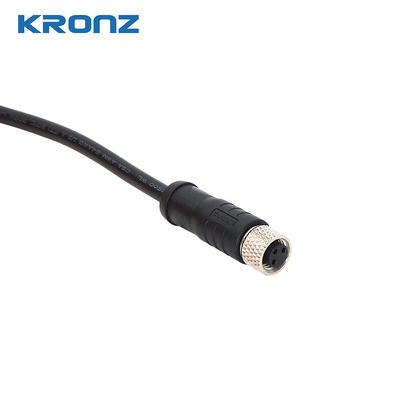

M8 Connector with Standard IEC 61076-2-104 M8 5M Pri-assembled Cable Connector

50
MOQ
TBC
Price
M8 Connector with Standard IEC 61076-2-104 M8 5M Pri-assembled Cable Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Mating Cycles: >100
Ambient Temperature: -25~+85℃
Pollution Degree: 3
Contact Nut Material: Brass, Nickle-plated
Standard: IEC 61076-2-104
Seal Material: FPM/FKM
Contact Carrier Material: PA, Black
Contact Resistance: ≤5mΩ
Highlight:

iec 61076-2-104 m8 connector

,

iec 61076-2-104 m8 male connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M0803F-5/P00K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M8 Connector with Standard IEC 61076-2-104 M8 5M Pri-assembled Cable Connector
Product Specifications
Attribute Value
Mating cycles >100
Ambient temperature -25~+85℃
Pollution degree 3
Contact nut material Brass, Nickle-plated
Standard IEC 61076-2-104
Seal material FPM/FKM
Contact carrier material PA, Black
Contact resistance ≤5mΩ
Product Overview

The M8 Connector meets IEC 61076-2-104 standards, offering durable performance with over 100 mating cycles. Ideal for applications requiring frequent connections, its FPM/FKM seal material provides excellent chemical resistance and protection against moisture and dust.

M8 Connector with Standard IEC 61076-2-104 M8 5M Pri-assembled Cable Connector 0
Technical Details
Feature Specification
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Connector with Standard IEC 61076-2-104 M8 5M Pri-assembled Cable Connector 1 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC,black Straight 5M M0803F-5/P00K
Applications

The KRONZ M8 Connector (Model M0803F-1/P00K) is widely used in industrial automation, measurement, and control systems. Its rugged design makes it suitable for:

  • Sensor and actuator connections in harsh environments
  • Machinery, robotics, and automation systems
  • Indoor and outdoor applications with IP67 protection
  • Power distribution systems requiring high insulation resistance (≥100MΩ)
Support & Services
  • Expert technical support for installation and troubleshooting
  • Comprehensive product documentation and user manuals
  • Online resources including FAQs and knowledge base
  • Product repair and replacement services
  • Customized product design services
  • Training and certification programs
