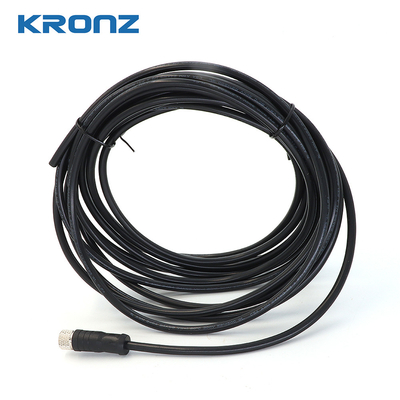

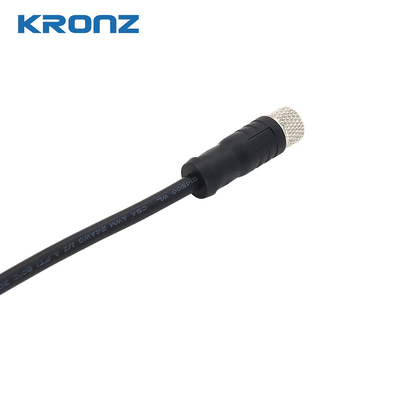

M8 Connector IEC 61076-2-104 Circular Connector 3 Pin Sensors with PVC Wire Cable

Brand Name:	KRONZ
Model Number:	M0803F-3/P00K
MOQ:	50
Price:	TBC
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Contact Resistance:

≤5mΩ

Insulation Resistance:

≥100MΩ

Contact Surface Material:

Brass, Gold-plated

Housing Material:

TPU, Black

Ambient Temperature:

-25~+85℃

Seal Material:

FPM/FKM

Standard:

IEC 61076-2-104

Contact Nut Material:

Brass, Nickle-plated

Supply Ability:

100000 pieces per month

Highlight:

m8 connector iec 61076-2-104

iec 61076-2-104 m8 male connector

Product Description

M8 Connector IEC 61076-2-104 Circular Connector 3 Pin Sensors with PVC Wire Cable

Product Specifications

Attribute	Value
Contact resistance	≤5mΩ
Insulation resistance	≥100MΩ
Contact surface material	Brass, Gold-plated
Housing material	TPU, Black
Ambient temperature	-25~+85℃
Seal material	FPM/FKM
Standard	IEC 61076-2-104
Contact nut material	Brass, Nickel-plated

Product Overview

The M8 Connector features a robust design with brass, nickel-plated contact nuts for enhanced durability and gold-plated contact surfaces for optimal conductivity. Engineered to perform in demanding industrial environments, it offers:

Wide operating temperature range (-25~+85℃)
Pollution degree 3 rating for moderate contamination environments
High mating cycle durability (>100 cycles)
Excellent chemical resistance with FPM/FKM seals
IP67 protection rating for dust and water resistance

Technical Specifications

Standard	IEC 61076-2-104
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

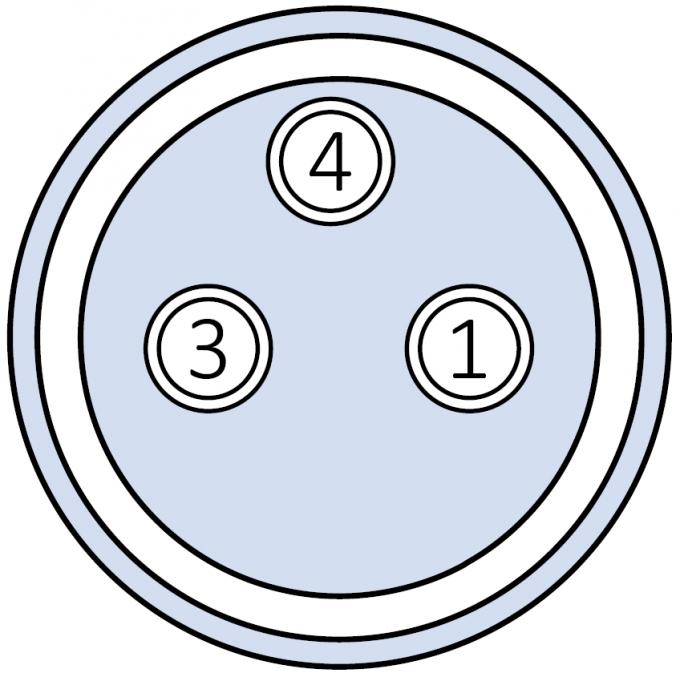

Pin Configuration

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1=BN 3=BU 4=BK	A	3A	60V	3x0.25 (3x24AWG) PVC,black	Straight	3M	M0803F-3/P00K

Applications

This versatile M8 Connector is ideal for industrial automation, robotics, and other demanding applications requiring reliable connectivity in harsh environments:

Sensor and actuator connections in manufacturing
Automotive and transportation systems
Medical and aerospace equipment
Consumer electronics requiring robust connections

Ordering Information

Minimum Order Quantity: 50 pieces
Delivery Time: 5-8 working days
Packaging: Polybag
Payment Terms: T/T, Western Union, MoneyGram
Supply Capacity: 100,000 pieces/month

Support & Services

Our comprehensive support package includes:

Technical installation support
Maintenance and repair services
Product training and education
Customization and modification services

Contact our technical team for any product-related queries or support requirements.
