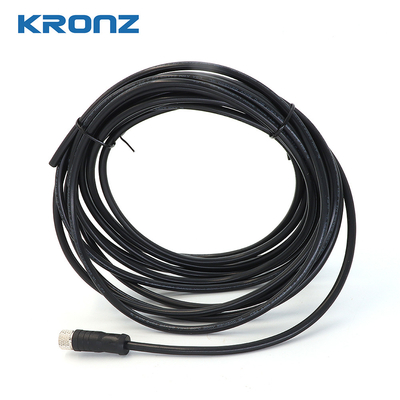

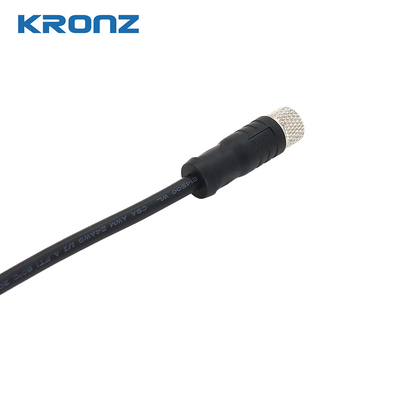

M8 Circular Sensor Connector 3 Pin PVC Cable IEC 61076-2-104 Straight Outlet Brass Contact Nut
  • Name
  • Name

M8 Circular Sensor Connector 3 Pin PVC Cable IEC 61076-2-104 Straight Outlet Brass Contact Nut

Brand Name: KRONZ
Model Number: M0803F-10/P00K
MOQ: 50
Price: TBC
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Contact Resistance:
≤5mΩ
Cable Outlet:
Straight
Contact Nut Material:
Brass, Nickle-plated
Cable Length:
10m, 15m
Contact Carrier Material:
PA, Black
Voltage:
60V
Wire Gauge:
3×0.25 (3×24AWG) PVC, Black
Seal Material:
FPM/FKM
Supply Ability:
100000 pieces per month
Highlight:

3 Pin M8 Circular Sensor Connector

,

M8 Circular Sensor Connector

Product Description
M8 Circular Sensor Connector 3 Pin PVC Cable IEC 61076-2-104 Straight Outlet Brass Contact Nut
Product Specifications
Attribute Value
Contact resistance ≤5mΩ
Cable outlet Straight
Contact nut material Brass, Nickle-plated
Cable length 10m, 15m
Contact carrier material PA, Black
Voltage 60V
Wire gauge 3×0.25 (3×24AWG) PVC, Black
Seal material FPM/FKM
Product Overview

The M8 Circular Connector is designed for sensor applications with PVC wire cable, meeting IEC 61076-2-104 standards. This 3-pin connector features a durable construction ideal for industrial environments.

M8 Circular Sensor Connector 3 Pin PVC Cable IEC 61076-2-104 Straight Outlet Brass Contact Nut 0
Key Features
  • Durable PA contact carrier material in black finish
  • Straight cable outlet for easy installation in tight spaces
  • Pollution degree rating of 3 for industrial environments
  • High insulation resistance (≥100MΩ) for electrical safety
  • Compliant with IEC 61076-2-104 standards
  • Brass, nickel-plated contact nut for corrosion resistance
  • IP67 protection rating for dust and water resistance
Technical Specifications
Standard: IEC 61076-2-104
Contact surface material: Brass, gold-plated
Housing material: TPU, black
Ambient temperature range: -25°C to +85°C
Mating cycles: >100
Degree of protection: IP67
Pin Configuration
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Circular Sensor Connector 3 Pin PVC Cable IEC 61076-2-104 Straight Outlet Brass Contact Nut 1 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC,black Straight 10M M0803F-10/P00K
Applications

This M8 connector is ideal for harsh industrial environments, including:

  • Industrial automation systems
  • Sensor and actuator connections
  • Robotics and machine tools
  • Medical equipment
  • Outdoor applications with exposure to weather conditions
Customization Options
Minimum order quantity: 50 pieces
Packaging: Polybag
Delivery time: 5-8 working days
Payment terms: T/T, Western Union, MoneyGram
Monthly production capacity: 100,000 pieces
Certification: CE

Customization options include cable length, connector type, and coding configuration to meet specific application requirements.
