Home /Products/M8 Connectors/M8 Connector With Customized Cable Length 60V 3 Pin Male Industrial Automation Connector

M8 Connector With Customized Cable Length 60V 3 Pin Male Industrial Automation Connector

50
MOQ
Negotiable
Price
M8 Connector With Customized Cable Length 60V 3 Pin Male Industrial Automation Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Cable Outlet: Straight
Cable Meterial: PVC
Mating Cycles: >100
Application: Sensor
Rated Current: 3A
Contact Carrier Material: PA, Black
Seal Material: FPM/FKM
Insulation Resistance: ≥100MΩ
Highlight:

60V M8 Connector

,

Industrial Automation M8 Connector

,

3 Pin M8 Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M0803M-2/P00K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M8 Connector With Customized Cable Length 60V 3 Pin Male Industrial Automation Connector
Product Attributes
Attribute Value
Cable outlet Straight
Cable material PVC
Mating cycles >100
Application Sensor
Rated current 3A
Contact carrier material PA, Black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Product Description

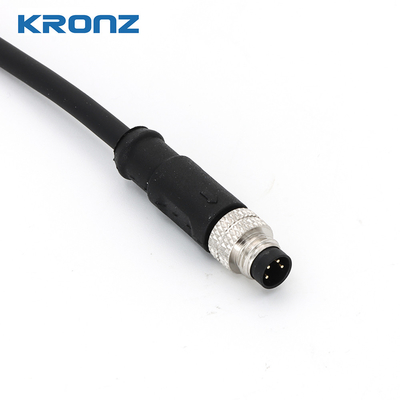

The M8 Connector features a straight cable outlet for easy device connections. With IP67 protection rating, it's resistant to dust and water ingress, making it ideal for harsh environments.

M8 Connector With Customized Cable Length 60V 3 Pin Male Industrial Automation Connector 0
Key Features
  • A-coded for compatibility with matching connectors
  • Available in both male and female versions
  • Secure locking mechanism for high-vibration environments
  • Ideal for industrial automation, robotics, and automotive systems
  • Versatile and reliable for wide range of applications
Technical Specifications
Specification Value
Standard IEC 61076-2-104
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Housing material TPU, black
Pollution degree 3
Ambient temperature -25~+85℃
Degree of protection IP67
Pin Configuration
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Connector With Customized Cable Length 60V 3 Pin Male Industrial Automation Connector 1 1=WH
3=BU
4=BK		 A 3A 60V 3×0.25 (3×24AWG)
PVC, black		 Straight 2M M0803M-2/P00K
Applications

The KRONZ M8 Connector is a versatile solution for industrial automation, sensor connections, and data acquisition systems. With over 100 mating cycles capability, it's ideal for applications requiring frequent connections.

Order Information:
Minimum order quantity: 50 pieces
Packaging: Polybag
Delivery time: 5-8 working days
Payment terms: T/T, Western Union, MoneyGram
Supply capacity: Up to 100,000 pieces/month

Get in touch today to learn more about pricing and customization options.
