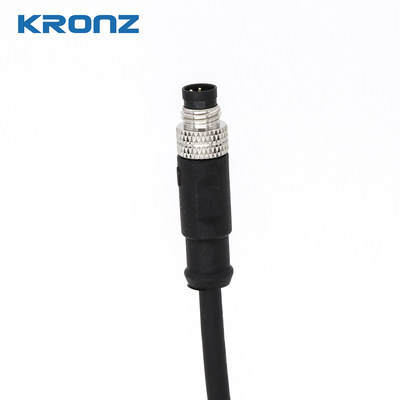

M8 Circular Connectors IEC 61076-2-104 With 15m PVC Cable Waterproof IP67 Male Connector

50
MOQ
Negotiable
Price
M8 Circular Connectors IEC 61076-2-104 With 15m PVC Cable Waterproof IP67 Male Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: IEC 61076-2-104
Degree Of Protection: IP67
Wire Color: 1=BN,3=BU,4=BK
Cable Outlet: Straight
Seal Material: FPM/FKM
Wire Gauge: 3×0.25 (3×24AWG) PVC, Black
Ambient Temperature: -25~+85℃
Contact Resistance: ≤5mΩ
Highlight:

M8 Circular Connectors IP67

,

15m PVC Cable M8 Circular Connectors

,

M8 Circular Connectors Waterproof
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M0803M-15/P00K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M8 Circular Connectors IEC 61076-2-104 With 15m PVC Cable Waterproof IP67 Male Connector
Key Specifications
Standard IEC 61076-2-104
Degree of protection IP67
Wire color 1=BN, 3=BU, 4=BK
Cable outlet Straight
Seal material FPM/FKM
Wire gauge 3×0.25 (3×24AWG) PVC, Black
Ambient temperature -25~+85℃
Contact resistance ≤5mΩ
Product Overview
The M8 Connector features 3×0.25 (3×24AWG) PVC black wires, ideal for low-power applications including sensors and actuators. The black PVC insulation provides durable protection during installation and operation.
With an insulation resistance of ≥100MΩ, this connector safely withstands high voltages without current leakage, protecting your equipment from electrical damage.
M8 Circular Connectors IEC 61076-2-104 With 15m PVC Cable Waterproof IP67 Male Connector 0
Technical Specifications
Standard IEC 61076-2-104
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Circular Connectors IEC 61076-2-104 With 15m PVC Cable Waterproof IP67 Male Connector 1 1=WH
3=BU
4=BK		 A 3A 60V 3×0.25 (3×24AWG) PVC, black Straight 15M M0803M-15/P00K
Applications
The IP67-rated M8 Connector is designed for harsh environments across multiple industries:
  • Industrial automation in manufacturing plants and warehouses
  • Outdoor applications including construction and agriculture
  • Marine environments due to waterproof capabilities
  • Automotive manufacturing and repair facilities
  • Robotics and sensor networks
The threaded design ensures secure, stable connections that withstand high temperatures, humidity, and chemical exposure.
Customization Options
KRONZ offers customization services for industrial connectors including M8, M12, and RJ45 variants. Our products are CE-certified and manufactured in Guangdong, China.
Customization available: We can produce connectors according to your design specifications. Contact our sales team at sales02@kronz.cn for inquiries.
