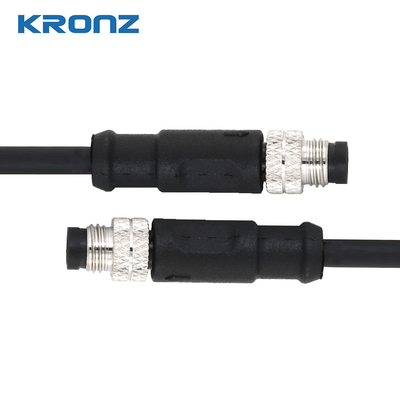

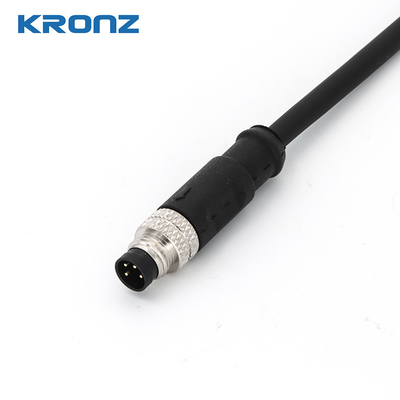

M8 Industrial Connector Sensor with 10m PVC Cable 3 Pin Male Circular Connectors

50
MOQ
Negotiable
Price
M8 Industrial Connector Sensor with 10m PVC Cable 3 Pin Male Circular Connectors
Features Gallery Product Description Chat Now
Features
Specifications
Rated Current: 3A
Cable Outlet: Straight
Mating Cycles: >100
Standard: IEC 61076-2-104
Cable Length: Customized
Seal Material: FPM/FKM
Application: Sensor
Coding: A
Highlight:

PVC Cable M8 Industrial Connector

,

3 Pin M8 Industrial Connector

,

10m M8 Industrial Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M0803M-10/P00K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M8 Industrial Connector Sensor with 10m PVC Cable 3 Pin Male Circular Connectors
Key Features
  • Low contact resistance (≤5mΩ) for minimal signal loss
  • Durable PA contact carrier material withstands harsh conditions
  • IP67 protection rating - dust-tight and waterproof to 1 meter
  • IEC 61076-2-104 standard compliant
  • High-quality TPU housing material
  • Reliable performance with >100 mating cycles
M8 Industrial Connector Sensor with 10m PVC Cable 3 Pin Male Circular Connectors 0
Technical Specifications
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Industrial Connector Sensor with 10m PVC Cable 3 Pin Male Circular Connectors 1 1=WH
3=BU
4=BK		 A 3A 60V 3×0.25 (3×24AWG) PVC, black Straight 10M M0803M-10/P00K
Customization Options
KRONZ offers customization services for the M8 Connector (Model: M0803M-10/P00K). This industrial locking connector features:
  • Wire gauge: 3×0.25 (3×24AWG) PVC, black
  • IP67 protection rating
  • Contact resistance ≤5mΩ
  • TPU housing material (black)
  • IEC 61076-2-104 standard compliant
  • CE certified
Order Information: Minimum order quantity: 50 pieces. Packaging: Polybag. Delivery time: 5-8 working days. Supply capacity: 100,000 pieces/month. Payment terms: T/T, Western Union, MoneyGram. Price negotiable.
