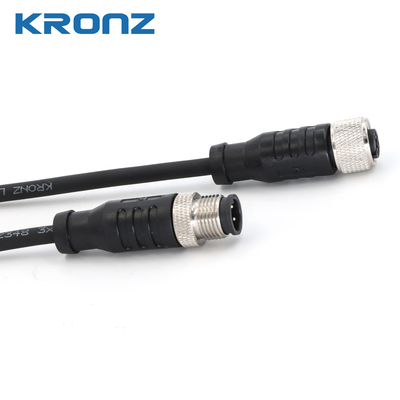

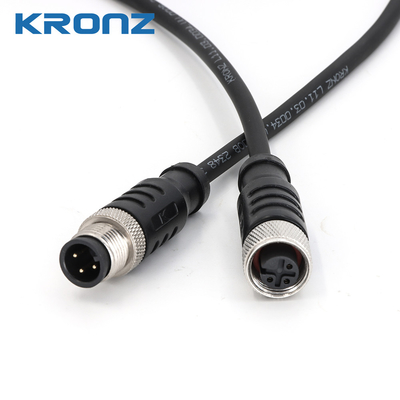

M12 Connector with Pre-molded Cable 250V IP67 Gold-plated Contact for Automation Sensors

Brand Name:	KRONZ
Model Number:	M1204M-1/P00K
MOQ:	80
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Wire Color:

1=BN 2=WH 3=BU 4=BK

Rated Current:

Degree Of Protection:

IP67

Housing Material:

TPU, Black

Ambient Temperature:

-25~+85℃

Contact Surface Material:

Brass, Gold-plated

Mating Cycles:

>100

Seal Material:

FPM/FKM

Supply Ability:

100000 pieces per month

Highlight:

ip67 m12 connector

ip67 m12 female connector

molded cable m12 connector

Product Description

M12 Connector with Pre-molded Cable 250V IP67 Automation Sensor Connectors

Product Overview

The M12 Connector is engineered with high-quality materials to deliver exceptional durability and performance in demanding industrial environments. Featuring a PA contact carrier in black for impact resistance, and FPM/FKM seals for superior chemical resistance against oils and fuels.

The connector utilizes brass contact surfaces with gold plating to ensure reliable, low-resistance electrical connections. The nickel-plated brass contact nuts provide excellent corrosion and wear resistance.

Designed for rigorous industrial applications, this connector offers high ingress protection (IP67) against dust and water, along with a high mating cycle rating for frequent connection and disconnection without performance degradation.

Technical Specifications

Standard	IEC 61076-2-101
Contact Nut Material	Brass, nickel-plated
Contact Surface Material	Brass, gold-plated
Contact Carrier Material	PA, black
Housing Material	TPU, black
Seal Material	FPM/FKM
Insulation Resistance	≥100MΩ
Contact Resistance	≤5mΩ
Pollution Degree	3
Ambient Temperature	-25~+85℃
Mating Cycles	>100
Degree of Protection	IP67

Pin Assignment	Connection Method	Coding	Rated Current	Voltage	Wire Gauge	Cable Outlet	Length	Model No.
	1=BN 2=WH 3=BU 4=BK	A	4A	250V	4×0.34 (4×22AWG) PVC, black	Straight	1M	M1204M-1/P00K

Customization Options

The M12 Connector with Pre-molded Cable is a male connector compliant with IEC 61076-2-101 standard, rated for 4A current and 250V voltage. Constructed with TPU housing material in black and designed for over 100 mating cycles.

For custom specifications and requirements, please contact our sales team to discuss your specific application needs.

Technical Support & Services

Expert technical assistance for product selection and configuration
Installation guidance and support
Troubleshooting and issue resolution
Product warranty and repair services
Training and education resources
Customized solutions for unique application needs
