High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations

Brand Name: KRONZ
Model Number: KRF800-A50F03B
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Paper box packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ROHS
Document:
Product Brochure PDF
Standard Resistance:
50Ω
Substrate Material:
AlN
Resistance Tolerance:
±5 %
Power Rating:
800W
Frequency:
DC–1GHz
VSWR:
≤ 1.25 :1
Operating Temperature:
-55 To +150℃
Temperature Coefficient:
±150ppm/℃
Supply Ability:
500 pieces per month
Highlight:

800W Flange Mount Terminations

,

50 Ohm Flange Mount Terminations

,

High Power Flange Mount Terminations

Product Description
High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations
Technical Specifications
Attribute Value
Standard Resistance 50Ω
Substrate Material AlN
Resistance Tolerance ±5 %
Power Rating 800W
Frequency DC–1GHz
VSWR ≤ 1.25 :1
Operating Temperature -55 to +150℃
Temperature Coefficient ±150ppm/℃
Product Features
  • High power 50Ω RF termination solution
  • Flange mount design for secure installation
  • Aluminum Nitride (AlN) substrate for superior thermal performance
  • Wide frequency range from DC to 1GHz
  • Excellent VSWR characteristics (≤1.25:1)
  • Broad operating temperature range (-55°C to +150°C)
  • RoHS compliant construction

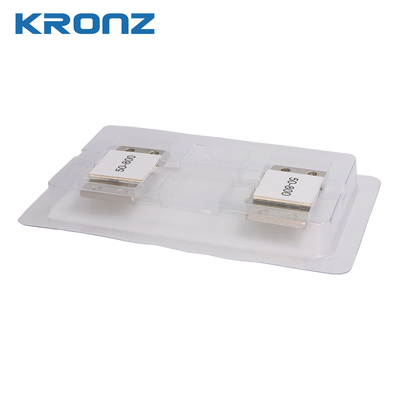

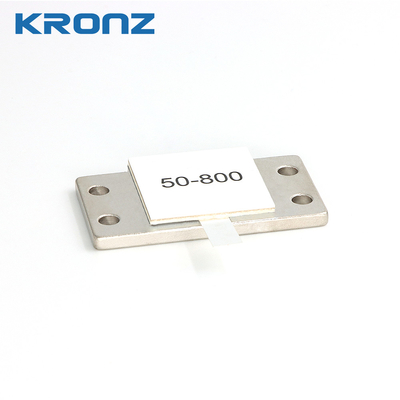

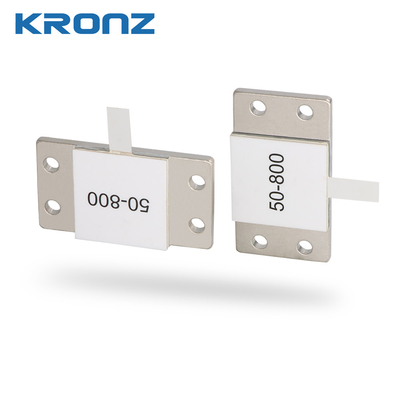

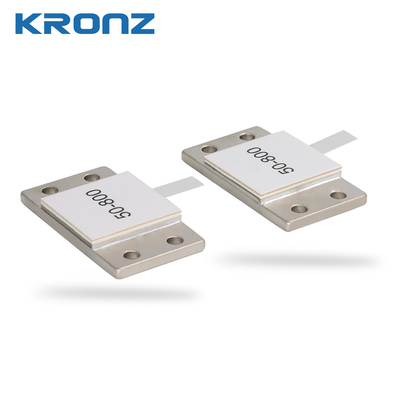

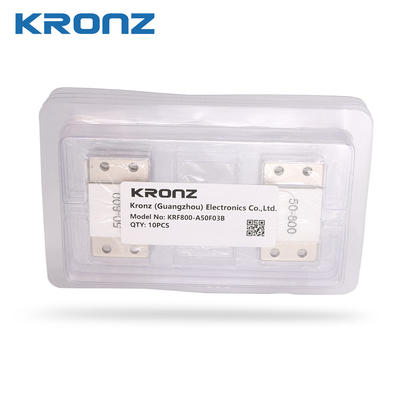

Product Images
High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 0 High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 1 High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 2 High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 3 High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 4 High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 5
Company Profile
High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 6 High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 7 High Power Terminals 50 Ohm RF Chip Resistor Flange RIG 800W Flange Mount Terminations 8
