Home /Products/Ultrasonic Sensors/Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K

Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K

1
MOQ
Negotiable
Price
Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K
Features Gallery Product Description Request A Quote
Features
Specifications
Overcurrent Protection: 200mA,Red LED And Green LED Flashing At The Same Time
Ambient Temperature: -25℃ ~+70℃（248~343K）
Analog Voltage Output: 0-10V Up/down
Output Type U: 1 Analog Current Output 4-20mA + 1 Switching Output NPN, Up/down, NO/NC
Initialization Time: ＜ 500ms
Response Time: 52ms
Voltage: 10-30V DC
Material: Copper
Highlight:

Temperature Ultrasonic Sensors

,

343K Ultrasonic Sensors

,

Analog Switching Output Ultrasonic Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U18-D1000N2IT-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K
Product Attributes
Attribute Value
Overcurrent protection 200mA, Red LED And Green LED Flashing At The Same Time
Ambient Temperature -25℃ ~+70℃（248~343K）
Analog Voltage Output 0-10V Up/down
Output Type U 1 Analog Current Output 4-20mA + 1 Switching Output NPN, Up/down, NO/NC
Initialization time ＜ 500ms
Response Time 52ms
Voltage 10-30V DC
Material Copper
Product Description
The Industrial Ultrasonic Sensors are a versatile and reliable solution for various industrial applications. With an enclosure rating of IP67, these sensors are designed to withstand harsh environments, making them ideal for industrial settings where durability is essential.
Weighing only 38g, these sensors are lightweight and easy to install while offering high performance and accuracy. The analog voltage output (0-10V) provides precise real-time data for seamless system integration, with up/down capability enhancing versatility.
These sensors achieve ±1% accuracy through built-in temperature drift compensation, ensuring reliable performance in challenging conditions. The dual output configuration (analog voltage and switching output) provides comprehensive data collection and control capabilities.
Key Features
  • Product Name: Industrial Ultrasonic Sensors
  • Connection Type: 5pin, M12 Connector
  • Load impedance: I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
  • Accuracy: ±1% (built-in Temperature Drift Compensation)
  • Input type: Teach-in And Synchronization
  • Resolution: 0.17mm

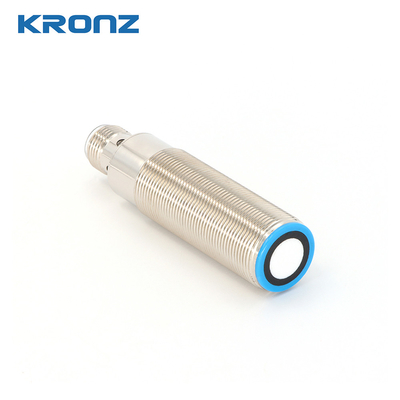

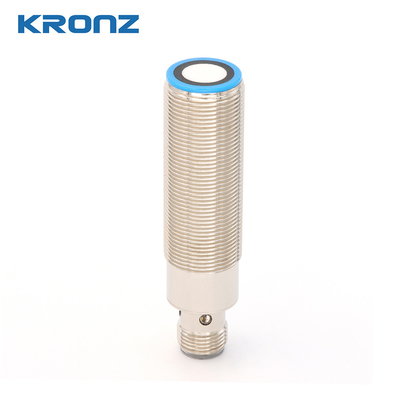

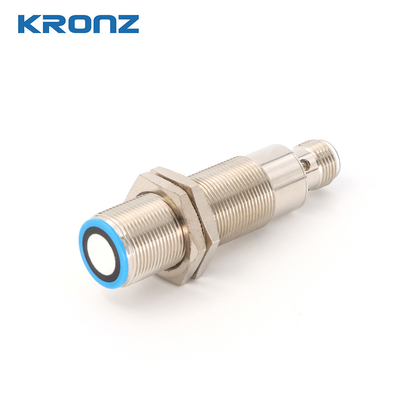

Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K 0 Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K 1 Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K 2
Technical Parameters
Parameter Specification
Output Type UI 1 Analog Current Output 4-20mA + 1 Switching Output Up/down, NO/NC
Connection Type 5pin, M12 Connector, M18 Ultrasonic Sensor
Accuracy ±1% (built-in Temperature Drift Compensation)
Red LED No Object Detected: Lights Up, Teaching-in When No Object Detected: Flashes
Analog Voltage Output 0-10V Up/down
Input Type Teach-in And Synchronization
Enclosure Rating IP67
Applications
KRONZ Industrial Ultrasonic Sensors are versatile devices suitable for various industries. With a supply voltage of 10-30V DC and analog voltage output, they provide precise distance measurements for industrial automation applications.
These CE-certified sensors feature reverse-polarity protection, a blind zone of 0-60mm, and detection range of 60-1000mm, making them ideal for proximity sensing and object detection in manufacturing plants, automotive assembly lines, and warehouse facilities.
Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K 3 Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K 4 Ultrasonic Sensors Analog Switching Output Sensor Within Temperature -25C 70C 248-343K 5
