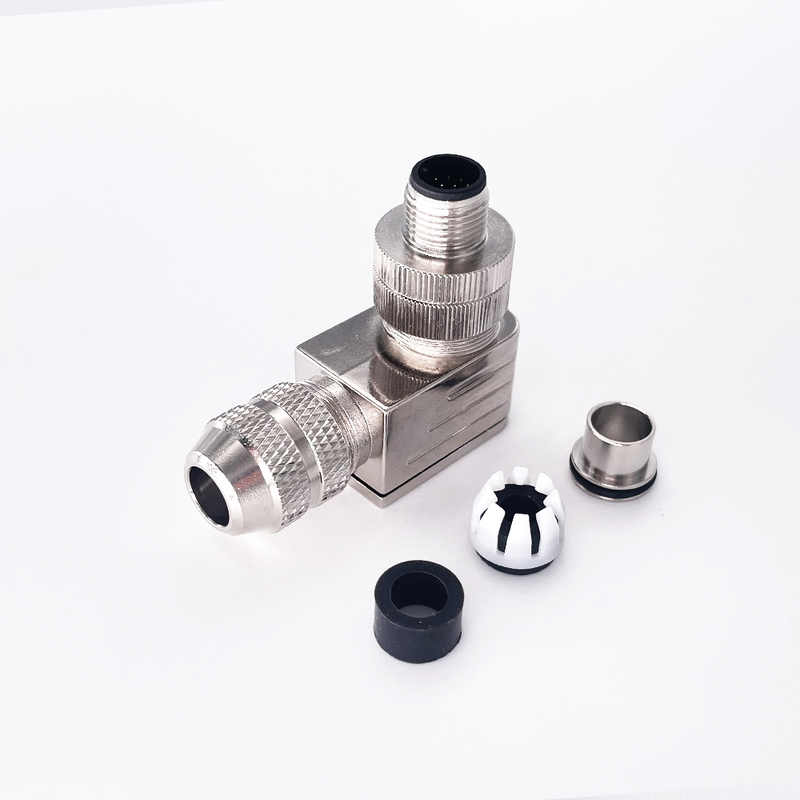

M12 12 Pin A-Code Field Wireable Connector Male with IP67 Protection

Brand Name:	KRONZ
Model Number:	H1212MAV-0
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Insulation Resistance:

≥100 MΩ

Sealing Material:

FPM / FKM

Number Of Contacts:

12 Pin

Coding:

A-Code

Connector Type:

M12 Field Wireable Connector

Gender:

Male

Supply Ability:

100000 pieces per month

Product Description

M12 12 Pin A-Code Field Wireable Connector Male

The M12 12 Pin A-Code Field Wireable Connector Male is designed for reliable on-site cable assembly in industrial automation systems. Featuring a rugged nickel-plated brass housing, gold-plated contacts, and IP67 protection, this connector ensures secure signal transmission in demanding environments. The screw terminal design allows quick field installation and easy maintenance without requiring pre-molded cables.

Key Features

12 Pin A-Code M12 male connector
Field wireable screw terminal design
IP67 waterproof and dustproof protection
Nickel-plated brass housing
Gold-plated copper alloy contacts
Supports custom cable lengths
Reliable vibration-resistant connection
Suitable for industrial automation applications
Easy on-site installation and maintenance
Compatible with standard IEC 61076-2-101 interfaces

Technical Specifications

Specification	Details
Connector Type	M12 Field Wireable Connector
Gender	Male
Coding	A-Code
Number of Contacts	12 Pin
Connection Method	Screw Terminal
Rated Voltage	30 V AC/DC
Rated Current	1.5 A
Contact Material	Copper Alloy, Gold Plated
Housing Material	Nickel-Plated Brass
Insulator Material	PA Engineering Plastic
Sealing Material	FPM / FKM
Cable Outlet Diameter	4-8 mm
Thread	M12 × 1
Protection Rating	IP67
Insulation Resistance	≥100 MΩ
Contact Resistance	≤5 mΩ
Operating Temperature	-25°C to +85°C
Mechanical Life	≥100 Mating Cycles
Standard	IEC 61076-2-101

Product Advantages

Reliable Industrial Performance

Designed for long-term industrial operation, the connector provides stable electrical performance even under continuous vibration and mechanical stress.

Easy On-Site Wiring

The screw terminal design eliminates the need for factory-assembled cables, allowing installers to quickly connect cables directly in the field.

Reduced installation time
Lower maintenance costs
Flexible cable length selection
Easy replacement

IP67 Environmental Protection

The sealing structure effectively prevents dust and water ingress, making the connector suitable for outdoor and harsh factory environments.

Premium Contact Quality

Gold-plated contacts minimize contact resistance while improving corrosion resistance and ensuring stable signal transmission over long operating periods.

Rugged Metal Housing

The nickel-plated brass housing offers excellent resistance to corrosion, impact, and vibration, ensuring reliable performance in demanding industrial applications.

Typical Applications

Industrial Automation
Factory Equipment
PLC Control Systems
Industrial Sensors
Servo Systems
Robotics
CNC Machines
Packaging Machinery
Conveyor Systems
Process Automation
Assembly Lines
Machine Vision Systems

Frequently Asked Questions

What is a field wireable connector?

A field wireable connector allows users to assemble and terminate cables directly at the installation site without requiring factory-molded cable assemblies.

Is this connector waterproof?

Yes. It provides an IP67 protection rating when properly assembled and connected.

What cable diameter is supported?

The connector accepts cables with an outer diameter of 4-8 mm.

What industries commonly use this connector?

It is widely used in factory automation, robotics, packaging machinery, CNC equipment, industrial sensing, and process control systems.

Is the connector compliant with international standards?

Yes. It conforms to IEC 61076-2-101, ensuring compatibility with standard M12 interfaces.

Can the connector be reused?

Yes. The screw terminal structure allows repeated assembly and maintenance, making it suitable for field servicing.

Need a reliable M12 12 Pin field wireable connector for your automation system?

Contact our engineering team for product selection, OEM customization, and volume pricing. We provide industrial-grade M12 connectivity solutions designed for long-term reliability in demanding applications.
