M12 12-Pin Female Field Wireable Assembly, Angled A-Code IP67 | Kronz

Industrial-grade right-angle M12 female connector for field assembly. Rugged nickel-plated metal housing, screw clamp terminals, and IP67 sealing for factory automation, sensors, and industrial networks.

1. IP67-Rated Field Assembly Connector — Sealed metal housing protects against dust, water, and vibration in harsh industrial environments.
2. 12-Pin A-Code M12 Female Receptacle — Standard IEC 61076-2-101 pin layout, compatible with M12 12-pin male sensors and cables.
3. Angled / Right-Angle Metal Housing — 90° form factor saves space in tight panels and reduces cable strain.
4. Screw Terminal Connection — Tool-free field wiring for 4–8mm cables; quick installation, reliable retention, and easy maintenance.
5. Rated 1.5A / 30V with Gold-Plated Contacts — Stable signal transmission, low contact resistance (≤5mΩ), and >100 mating cycles durability.

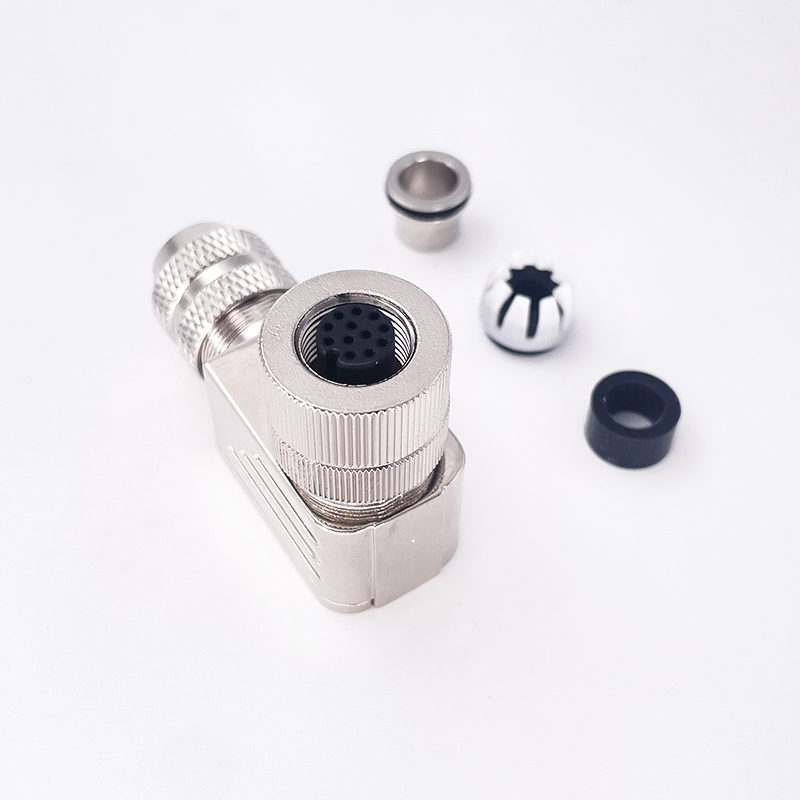

The H1212FAV-0 is a heavy-duty M12 12-pin female field wireable assembly built for industrial automation and control systems. With its angled / 90-degree nickel-plated metal shell and A-code keying, this connector delivers reliable, vibration-resistant connections in factory floor, sensor, actuator, and machine-vision applications.

Designed to IEC 61076-2-101, the connector uses a screw terminal clamp system that accepts cable diameters from 4 to 8 mm. Installation requires no crimping tools; simply strip the cable, insert the conductors, and tighten the screws. The rugged metal housing provides IP67 protection against dust and temporary water immersion, while the gold-plated brass contacts ensure stable electrical performance over more than 100 mating cycles.

Electrical ratings are 1.5A current and 30V voltage, with an insulation resistance of ≥100MΩ and contact resistance of ≤5mΩ. The operating temperature range spans -25°C to +85°C, making it suitable for outdoor cabinets, conveyor systems, robotics, and process control equipment.

Whether you are building a custom M12 sensor cable, repairing a field harness, or upgrading an automation panel, the H1212FAV-0 angled 12-pin M12 field connector offers the durability, compatibility, and ease of installation that industrial engineers need.

Common applications:

• Factory automation and PLC wiring
• Industrial sensors and actuators
• Machine vision and motion control
• Robotics and conveyor systems
• Field-replaceable cable assemblies
