7/8" Connector Field-wireable Assembly Connector 5 Pin A Code Male
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Guangdong, China
Brand Name:
KRONZ
Certification:
CE
Model Number:
H7805M-9/R
Minimum Order Quantity:
50 pieces
Price:
Negotiable
Packaging Details:
Polybag packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
7/8" Connector Field-wireable Assembly Connector 5 Pin A Code Male
Product Specification
Product Name:
7/8" Field Wirable Assembly Connector
Contact Nut Material:
Zinc Alloy, Nickle-plated
Thread Type:
7/8”-16UN
Endurance(shell):
>100 Cycles
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Connector Type:
Screw Locking
Highlight:

Field Wireable 7/8" Connector

,

5 Pin 7/8" Connector

,

7/8 Male Connector 5 Pin

7/8" Connector Field-wireable Assembly Connector 5 Pin A Code Male
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description

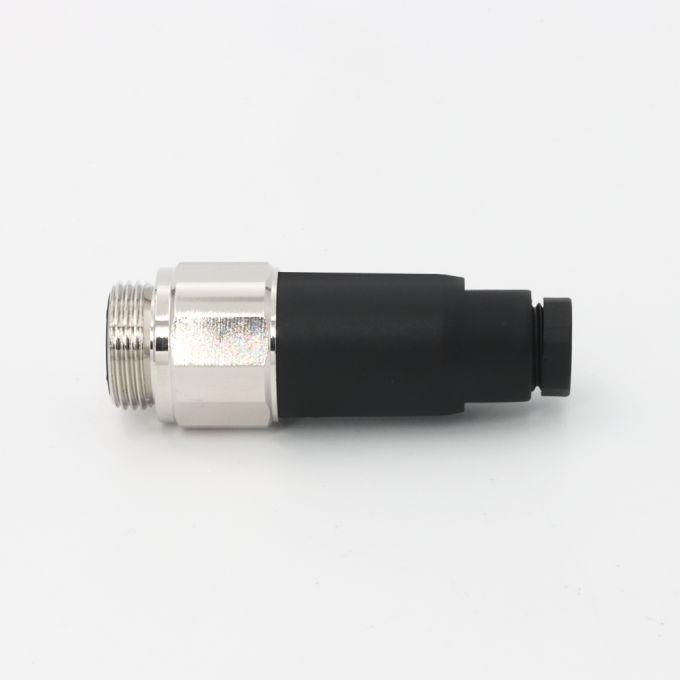

7/8" Connector Field-wireable Assembly Connector 5 Pin A Code Male



Product Description



The 7/8" field-wireable assembly connector is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. ‌This kind of connector is usually used in situations where high electrical performance and reliable connection are required, ‌such as industrial automation, ‌machinery manufacturing and other fields.

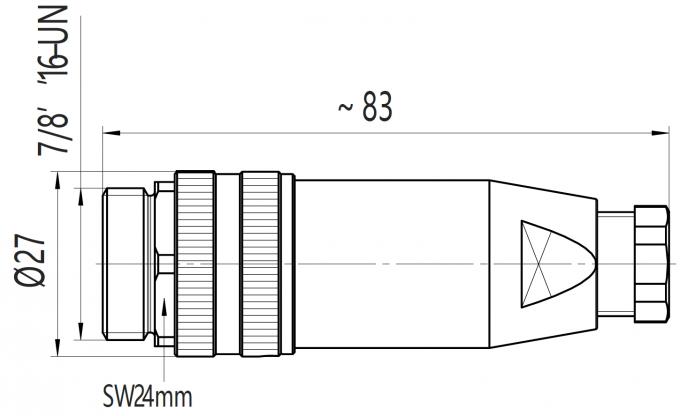

Technical Data



Thread type 7/8”-16UN
Contact nut material Zinc alloy, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

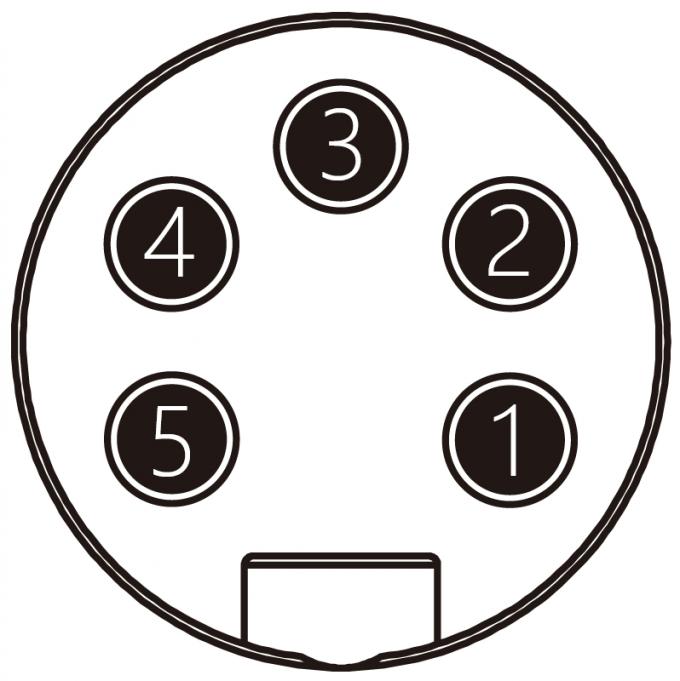

Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Screw connection A 8A 600V Straight 6-8mm H7805M-9/R
