7/8" Circular Connector Female 3 Pin Waterproof 16UN PVC Cable Connector
Our Product Introduction
for more products please visit us on connector-industrial.com
Basic Information
Place of Origin:
Guangdong, China
Brand Name:
KRONZ
Certification:
CE
Model Number:
M7803F-2/P00R
Minimum Order Quantity:
50 pieces
Price:
Negotiable
Packaging Details:
Polybag packing
Delivery Time:
5-8 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
100000 pieces per month
Product Specification
Product Name:
Field-wireable Connector
Thread Type:
7/8”-16UN
Cable Outlet:
Straight
Code:
A
Pollution Degree:
3
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Voltage:
600V
Highlight:
7/8" Circular Connector
,Waterproof 7/8" Circular Connector
,7/8" Female Connector 3 Pin
Our Product Introduction
for more products please visit us on connector-industrial.com
Product Description
7/8" Circular Connector Female 3 Pin Waterproof 16UN PVC Cable Connector
Product Description
Between the equipment in the automated production line, the 7/8" field connector helps to achieve quick connection and disassembly, facilitating equipment maintenance and replacement. When equipment in a certain production link fails, this connector can quickly disconnect Open the connection, remove the faulty equipment and replace it with spare equipment, which greatly reduces the downtime of the production line and improves production efficiency. For example, in the automobile manufacturing assembly line, if there is a problem with the engine assembly equipment, the 7/8" field connector can be used. Quickly replace equipment to ensure continuous operation of the production line.
Technical Data
| Thread type | 7/8”-16UN |
| Contact nut material | Zinc alloy, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | PBT/PA, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |

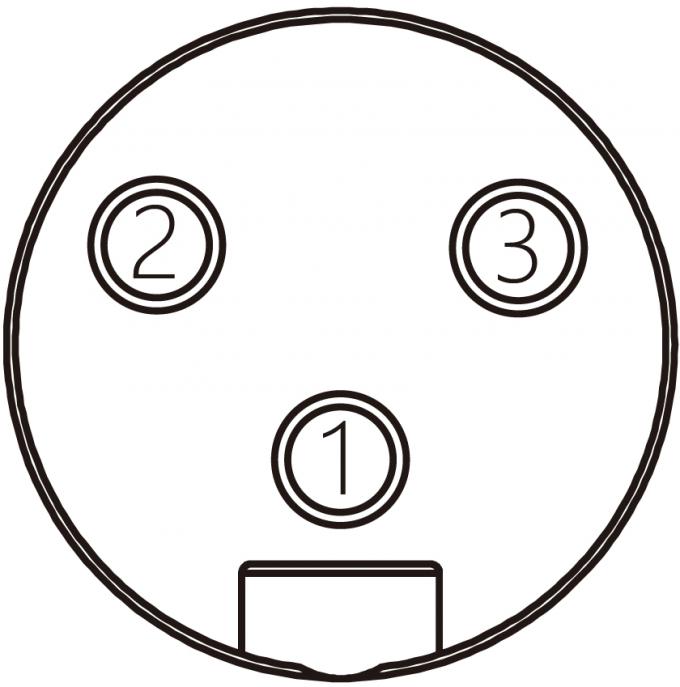

| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
 |
1=GN/YE 2=BN 3=BU |
A | 8A | 600V | 3×0.15 (3×16AWG) PVC, black |
Straight | 2M | M7803F-2/P00R |
| 5M | M7803F-5/P00R | |||||||
| 10M | M7803F-10/P00R |
*Cable length:2/5/10m,other cable lengths are available on request! Freely selectable cable material(P00R:black,PVC ,P01R:black,PUR)
