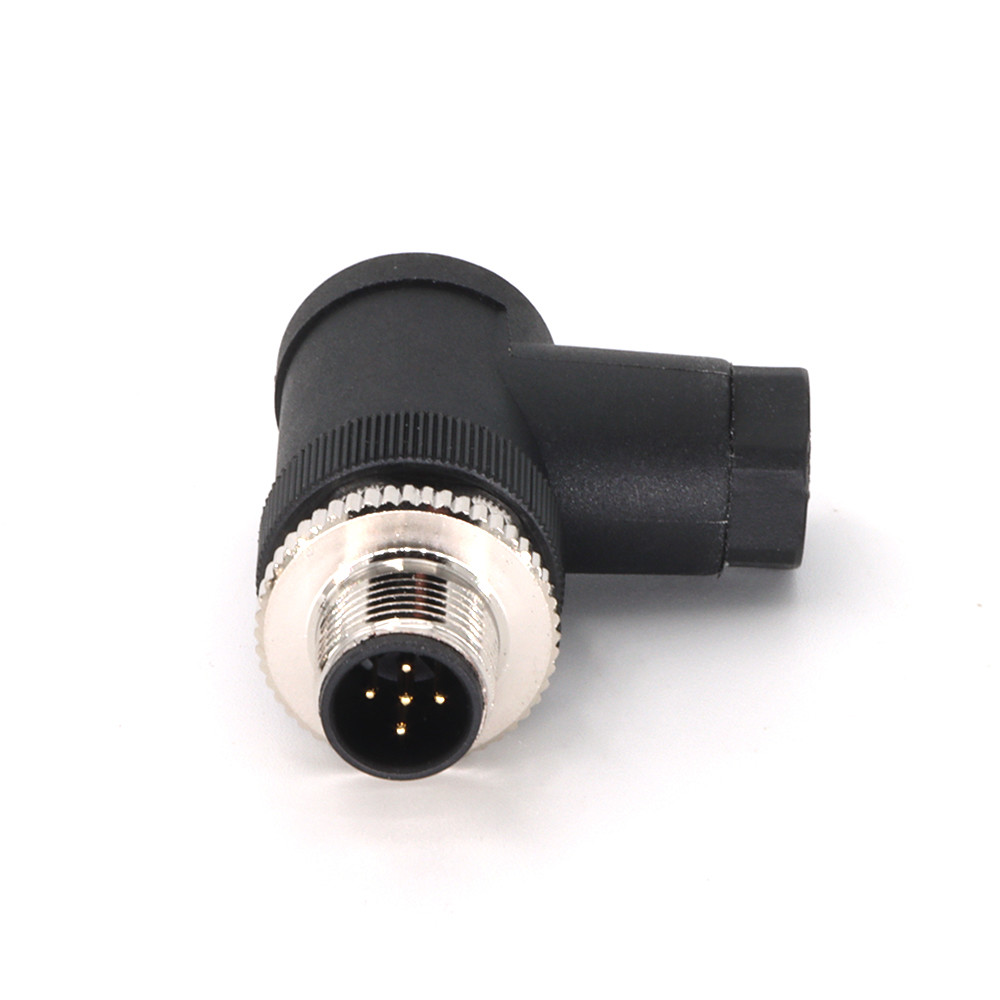

Angled Circular M12 Connector 5 Pin IP67 Male

50 pieces
MOQ
Negotiable
Price
Angled Circular M12 Connector 5 Pin IP67 Male
Features Gallery Product Description Request A Quote
Features
Specifications

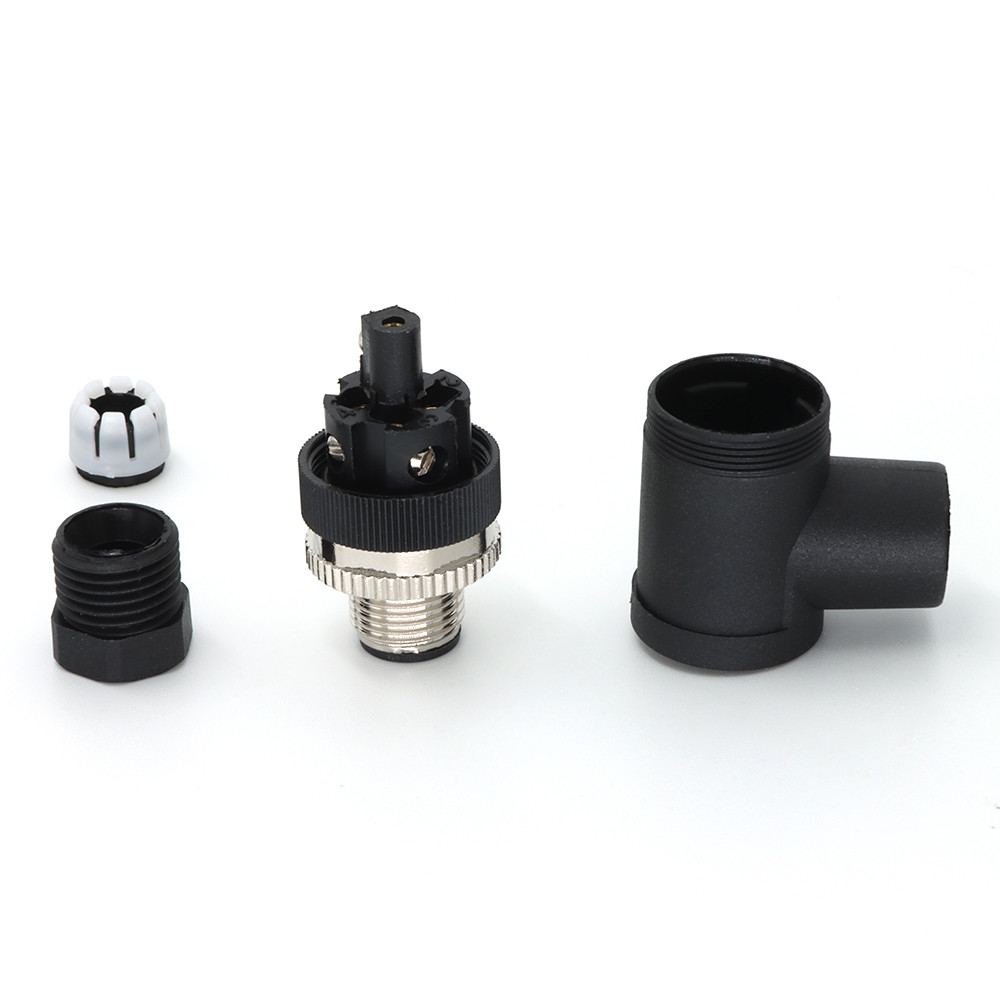

Description: Field-wireable Assembly Connector
Standard: IEC 61076-2-101
Coding: A
Voltage: 250V
Cable Outlet: Angled
External Cable Diameter: 4-6mm(PG7),6-8mm(PG9)
Ambient Temperature: -25~+85℃
Rated Current: 4A
Highlight:

Angled M12 Connector 5 Pin

,

Circular M12 Connector 5 Pin

,

IP67 M12 Male Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H1205MA-7 /H1205MA-9
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Connector 5 Pin Angled Circular Connectors A Code Waterproof IP67 Male ​



Product Description

The M12 connector is a circular connector widely used in industrial automation, machinery, and robotics for connecting sensors, actuators, and fieldbus devices. Its design ensures reliable and robust connections in harsh environments, making it an essential component in many industrial applications.



Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Angled Circular M12 Connector 5 Pin IP67 Male 0

Screw connection



 A 4A 60V Angled 4-6mm(PG7) M1205MA-7
6-8mm(PG9) M1205MA-9
