M12 Circular Connector 5 Pin A Code Screw Locking Plug Female ​Angled

Brand Name: KRONZ
Model Number: H1205FA-7/H1205FA-9
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
M12 Field-wireable Assembly Connector
Color:
Black
IP Rate:
IP67
Endurance(shell):
>100
Insulation Resistance:
≥ 100MΩ
Outlet:
Angled
Connector Type:
Screw Locking
Supply Ability:
100000 pieces per month
Highlight:

Circular M12 Female Connector 5 Pin

,

Angled M12 Female Connector 5 Pin

,

Screw Locking M12 Female Connector

Product Description
M12 Circular Connector 5 Pin A Code Screw Locking Plug Female Angled
Product Attributes
Attribute Value
Description M12 Field-wireable Assembly Connector
Color Black
IP rate IP67
Endurance(shell) >100
Insulation Resistance ≥ 100MΩ
Outlet Angled
Connector type Screw Locking
Product Description
M12 connectors are available as molded cable assemblies, offering pre-configured solutions with different cable lengths and specifications. Cable specifications and sizes can be customized according to customer requirements.

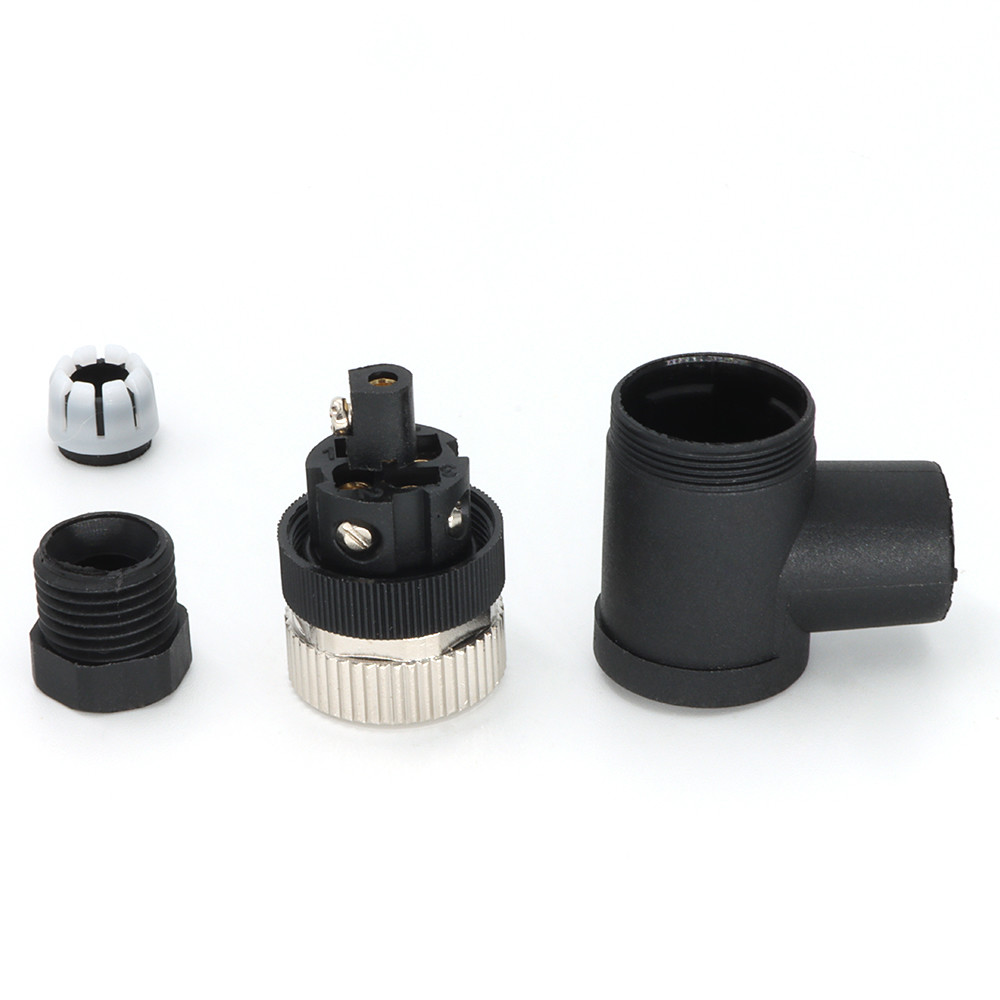

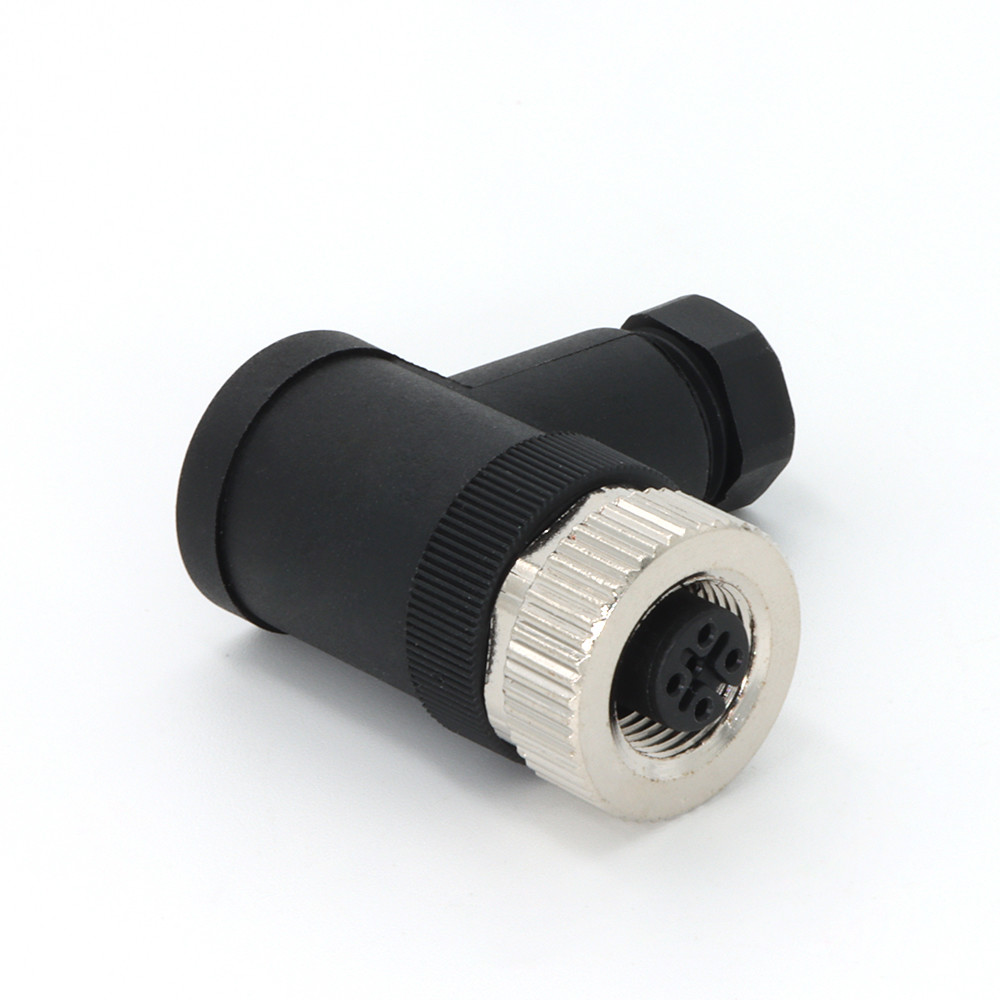

M12 Circular Connector angled view M12 Circular Connector side view M12 Circular Connector technical diagram
Technical Data
Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Specifications
M12 Circular Connector pin assignment diagram
Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Screw connection A 4A 60V Angled 4-6mm (PG7) M1205FA-7
Screw connection A 4A 60V Angled 6-8mm (PG9) M1205FA-9
