M12 Male Conector Panel Mounting 12 Pin A Code Circular Connectors for PCB Mounting

Brand Name:	KRONZ
Model Number:	F1212M-PM/M16
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Description:

Panel Mount M12 Male Connector

Series:

M12

Color:

Siliver

Material:

Brass,gold-plated

IP Rate:

IP67

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Connects Termination:

PCB Version

Supply Ability:

100000 pieces per month

Highlight:

circular m12 connector

circular m12 female connector

pcb m12 connector

Product Description

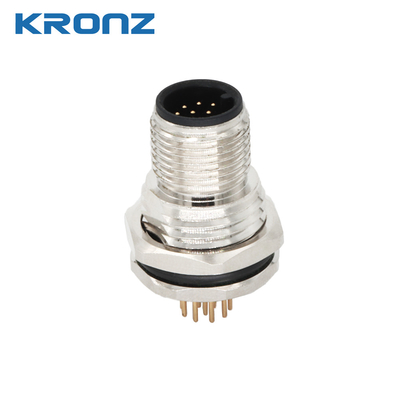

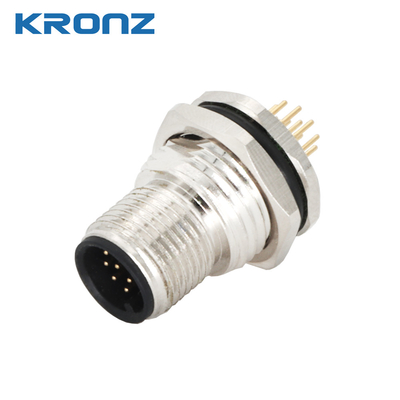

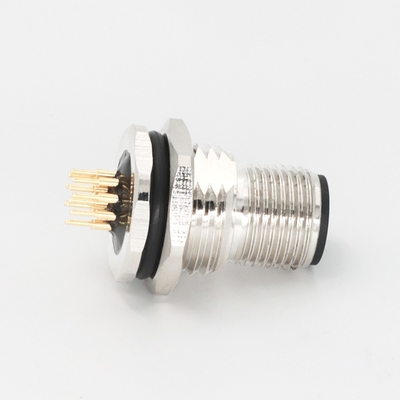

M12 Male Connector Panel Mounting 12 Pin A Code Circular Connectors for PCB Mounting

Product Overview

Panel Mount M12 Male Connector with 12-pin A coding, designed for reliable PCB mounting in industrial applications.

Attribute	Value
Description	Panel Mount M12 Male Connector
Series	M12
Color	Silver
Material	Brass, gold-plated
IP Rating	IP67
Contact Resistance	≤ 5mΩ
Ambient Temperature	-25~+85℃
Connects Termination	PCB Version

Product Features

M12 Field Wireable Connector with A Code, 12-pin configuration
Professional high quality black nylon plastic for insulation and flame retardancy
Thread locking mechanism with anti-vibration design (12mm thread joint)
All-copper nickel-plated metal screw sleeve with pure copper gold-plated contacts

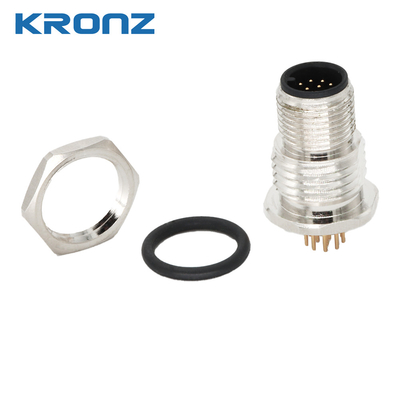

IP67 waterproof rating with high elastic rubber ring and clamping nuts
Robust and corrosion-resistant construction for durable performance

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Brass, nickel-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Pollution degree	3
Mating cycles	>100

Pin Assignment & Configuration

Pin assignment	Mounting type	Coding	Rated current	Voltage	Cable outlet	Contacts termination	Part No.
	Front mounting	A	1..5A	30V	Straight	PCB version	F1212M-PF/M16

Applications

Industrial Automation: Control panels, sensors, and actuators in automation systems
Machine Vision Systems: Industrial imaging and inspection systems
Robotics: Durable connections in high vibration environments
Control Systems: Secure data and power transmission between components

Manufacturer Information

Kronz is a manufacturing enterprise located in Guangzhou, specializing in industrial automation solutions and related products. With complete processing equipment and a professional team, we offer both standard and customized products to meet diverse industrial needs.

Frequently Asked Questions

Q1: Are you a manufacturer?

A1: Yes, we are an experienced manufacturer with our own R&D, production lines, and testing facilities.

Q2: Do you accept sample orders?

A2: Yes, we welcome sample orders to test our product quality and services.

Q3: Can you produce customized products?

A3: Yes, we can produce based on customer samples or technical drawings, including custom logos and packaging.
