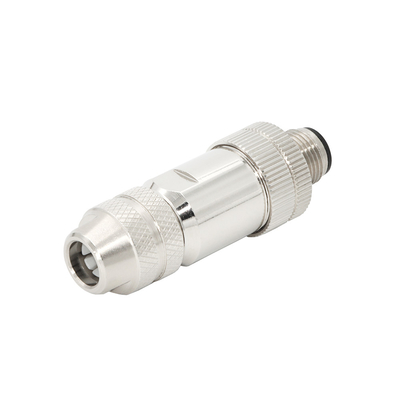

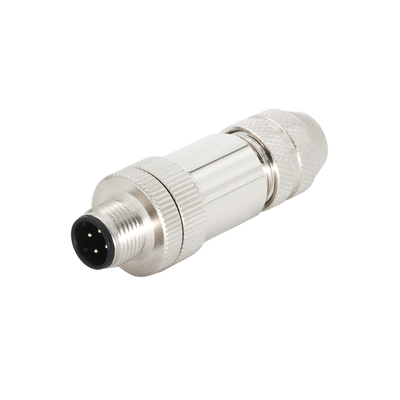

Gold Plated M12 Connector 4 Pin IP67 For Signal And Power Connections

Brand Name: KRONZ
Model Number: H1204MV-0
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
M12 Male Field-wirable Assembly Connector
Color:
Siliver
Material:
Brass,gold-plated
IP Rate:
IP67
Endurance(shell):
>100 Cycles
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
External Cable Diameter:
4-8mm
Supply Ability:
100000 pieces per month
Highlight:

Gold Plated M12 Connector 4 Pin

,

M12 Connector 4 Pin IP67

,

Gold Plated M12 Connector

Product Description
Gold Plated M12 Connector 4 Pin IP67 For Signal And Power Connections
Product Attributes
Attribute Value
Description M12 Male Field-wirable Assembly Connector
Color Silver
Material Brass, gold-plated
IP rate IP67
Endurance(shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact Resistance ≤ 5mΩ
External cable diameter 4-8mm
M12 Connector 4 Pin Gold-plated and Durable for Heavy-duty Applications
In robotic systems, M12 connectors are used for signal and power connections. Their compact size and secure locking mechanism make them ideal for applications requiring reliable and stable connections.
Gold Plated M12 Connector 4 Pin
Technical Data
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Zinc alloy, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment Specifications
M12 Connector Pin Assignment Diagram
Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Screw connection A 4A 250V Straight 4-8mm H1204MV-0
