M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector

50 pieces
MOQ
Negotiable
Price
M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Description: M12 Female Field-wirable Assembly Connector
Color: Siliver
Material: Brass,gold-plated
IP Rate: IP67
Endurance(shell): >100 Cycles
Contact Resistance: ≤ 5mΩ
Ambient Temperature: -25~+85℃
Connection Method: Screw Connection
Highlight:

Metal M12 8 Pin Female Connector

,

Field Assembled M12 Female Connector

,

M12 8 Pin IEC 61076-2-101
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H1208FV-0
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector
Product Overview

This M12 Female Field-wirable Assembly Connector is designed for demanding industrial applications, particularly in transportation systems where reliable performance under harsh conditions is essential.

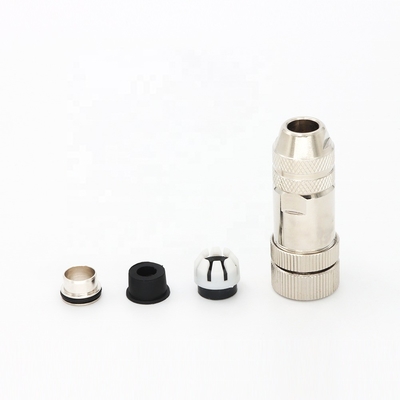

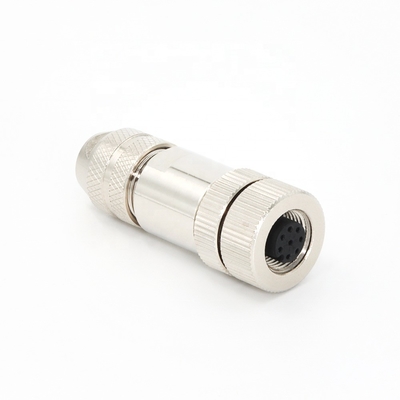

M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector 0 M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector 1 M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector 2
Key Specifications
Attribute Value
Description M12 Female Field-wirable Assembly Connector
Color Silver
Material Brass, gold-plated
IP Rating IP67
Endurance (shell) >100 cycles
Contact Resistance ≤ 5mΩ
Ambient Temperature -25~+85℃
Connection Method Screw Connection
Technical Data
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Zinc alloy, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Pollution degree 3
Mating cycles >100
Degree of protection IP67
Pin Configuration
M12 Metal Connectors IEC 61076-2-101 Standard 8 Pin Female Field-assembled Connector 3
Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
See diagram Screw connection A 2A 30V Straight 4-8mm H1208FV-0
Applications

Ideal for transportation systems including trains and buses, where robust control and communication connectors are required to withstand harsh environmental conditions while maintaining reliable performance.
