Home /Products/M12 Connectors/Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial

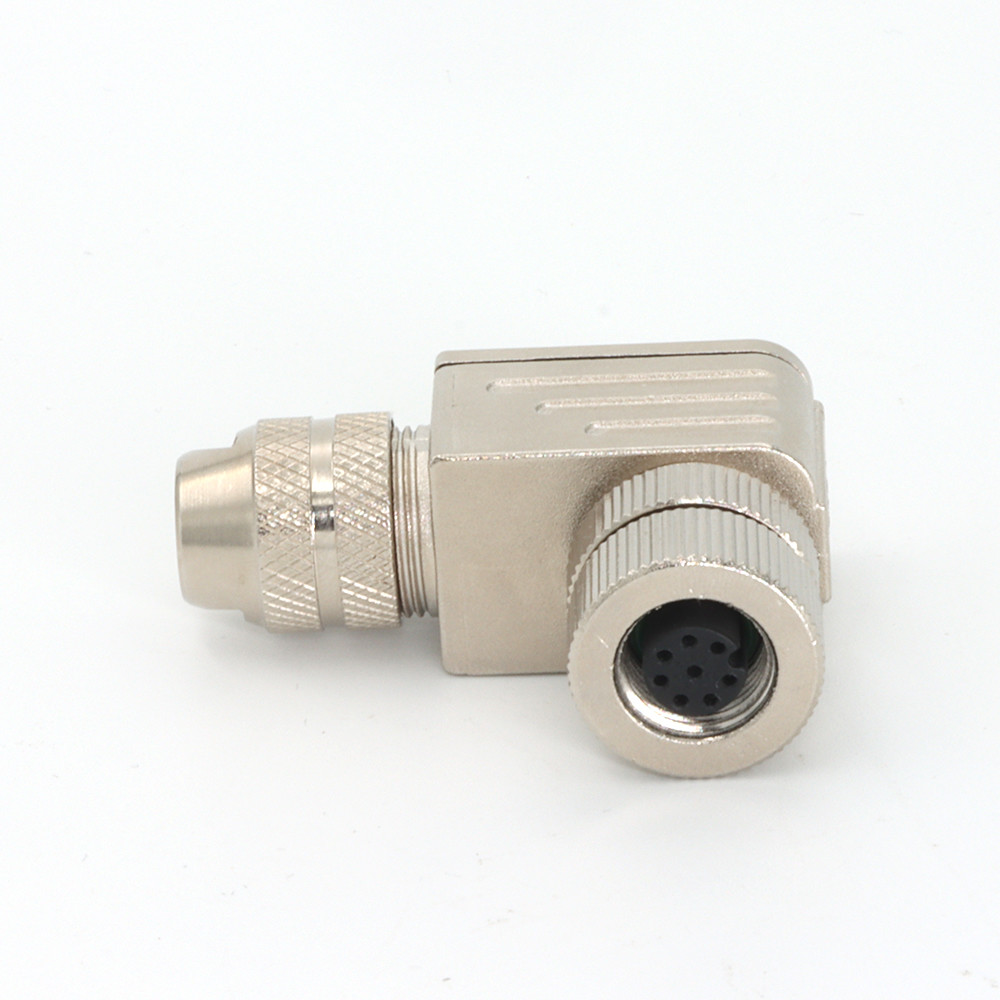

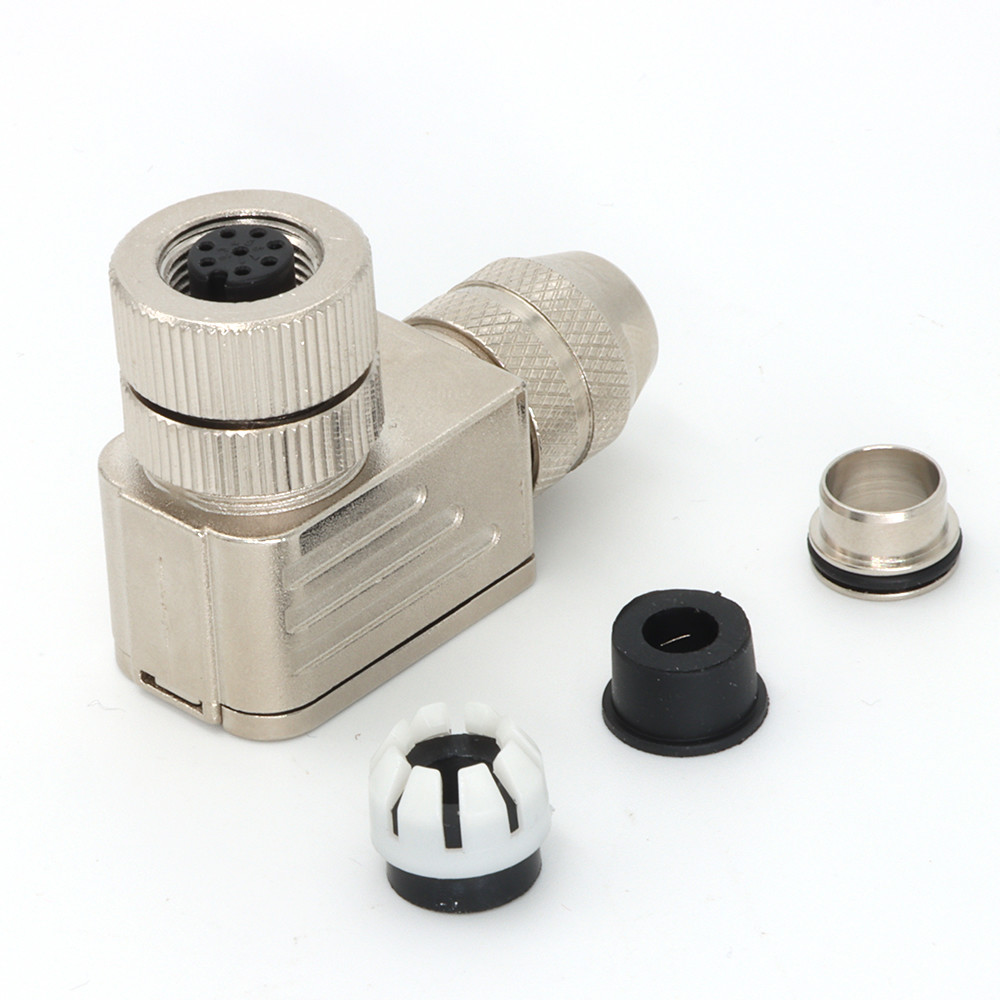

Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial

50 pieces
MOQ
Negotiable
Price
Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Description: Full Metal Connector
Color: Siliver
Standard: IEC 61076-2-101
IP Rate: IP67
Endurance(shell): >100 Cycles
Insulation Resistance: ≥ 100MΩ
Contact Resistance: ≤ 5mΩ
Connector Type: Screw Locking
Highlight:

Metal M12 Connector 8 Pin Female

,

IP67 M12 Connector 8 Pin Female

,

Field Wireable Assembly M12 Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H1208FAV-0
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial
Product Attributes
Attribute Value
Description Full Metal Connector
Color Silver
Standard IEC 61076-2-101
IP rate IP67
Endurance(shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Connector type Screw Locking
Product Description

M12 Field Wirable Assembly Connector IP67 Female 8 Pin Metal Industrial Connector

M12 connectors are used in wind turbines and solar power systems to connect sensors and control units, ensuring reliable operation in outdoor environments.

Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial 0
Technical Data
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Zinc alloy, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin assignment: Field Wireable Assembly M12 Connector 8 Pin Female Metal IP67 Industrial 1
Connection method: Screw connection
Coding: A
Rated current: 2A
Voltage: 30V
Cable outlet: Angled
External cable diameter: 4-8mm
Model No.: H1208FAV-0
