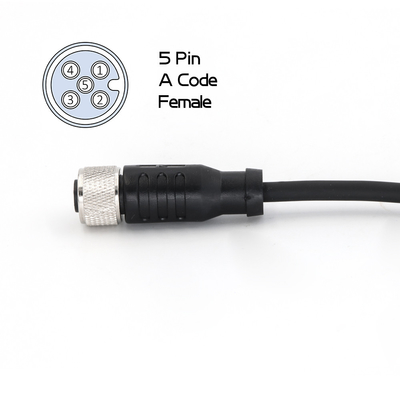

PVC M12 5 Pin Female Connector With Molded Cable Straight Pre Assembled Cable
  • Name
  • Name

PVC M12 5 Pin Female Connector With Molded Cable Straight Pre Assembled Cable

Brand Name: KRONZ
Model Number: M1205F-5/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
M12 Pre-assembled Cable Connector
Material:
Brass, Nickle-plated
IP Rate:
IP67
Endurance(shell):
>100 Cycles
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Pin:
5
Supply Ability:
100000 pieces per month
Highlight:

PVC M12 5 Pin Female Connector

,

Molded Cable M12 Female Connector

,

Pre Assembled Cable M12 Female Connector

Product Description
PVC M12 5 Pin Female Connector With Molded Cable Straight Pre Assembled Cable
Product Attributes
Attribute Value
Description M12 Pre-assembled Cable Connector
Material Brass, Nickle-plated
IP rate IP67
Endurance(shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Ambient temperature -25~+85℃
Pin 5
Product Description

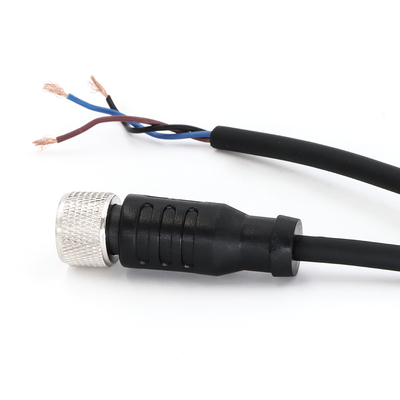

M12 Connectors with Molded Cable 5 Pin Female Straight PVC Pre-assembled cable

M12 connectors are also available as molded cable assemblies, offering pre-configured solutions with different cable lengths and specifications. Cable specifications and sizes can be customized according to customer requirements.
PVC M12 5 Pin Female Connector With Molded Cable Straight Pre Assembled Cable 0
Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Specifications
PVC M12 5 Pin Female Connector With Molded Cable Straight Pre Assembled Cable 1
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
  1=BN 2=WH 3=BU 4=BK 5=GY A 4A 60V 5x0.34 (5x22AWG) PVC, black Straight 2M M1205F-2/P00R
5M M1205F-5/P00R
10M M1205F-10/P00R
Note: Cable length: 2/5/10m, other cable lengths are available on request! Freely selectable cable material (P00R: black PVC, P01R: black PUR).
