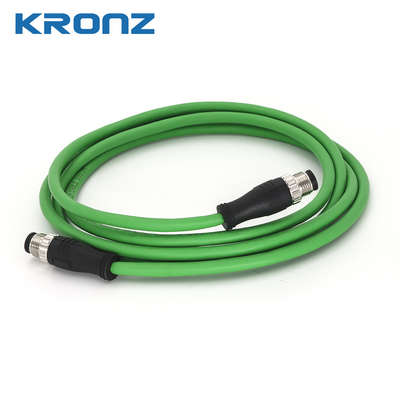

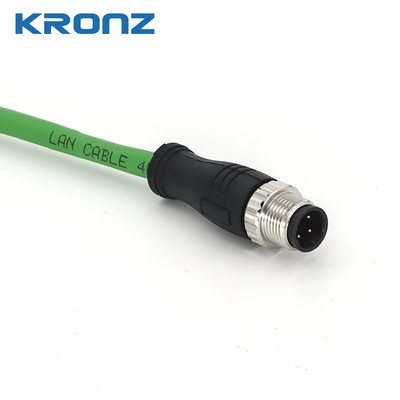

M12 Connector Pre-assembled IE Cable for Ethernet/IP Shielded 4/8 Pin D Coding

M12 Connector Pre-assembled IE Cable for Ethernet/IP Shielded 4/8 Pin D Coding

Brand Name:	KRONZ
Model Number:	M1204DM-2-M1204DM/E301
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Description:

IE Connecting Cable M12 Connector

Color:

Green

IP Rate:

IP67

Endurance(shell):

>100 Cycles

Insulation Resistance:

≥ 100MΩ

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Connector Type:

Screw Locking

Pin:

4 / 8

Supply Ability:

100000 pieces per month

Highlight:

ip67 m12 connector

,

ip67 m12 female connector

,

screw locking m12 connector

Product Description

M12 Connector Pre-assembled IE Cable for Ethernet/IP Shielded 4/8 Pin D Coding

Product Attributes

Attribute	Value
Description	IE Connecting Cable M12 Connector
Color	Green
IP rate	IP67
Endurance(shell)	>100 cycles
Insulation Resistance	≥ 100MΩ
Contact resistance	≤ 5mΩ
Ambient temperature	-25~+85℃
Connector type	Screw Locking
Pin	4 / 8

Product Description

High-Quality M12 Connector Cable - Pre-assembled for convenience with 4 or 8 pins, ideal for Ethernet/IP applications with D/A/X coding options.

M12 Connector Pre-assembled IE Cable for Ethernet/IP Shielded 4/8 Pin D Coding 0

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Assignment

M12 Connector Pre-assembled IE Cable for Ethernet/IP Shielded 4/8 Pin D Coding 1

Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1 = WH/OR(+tx) 2 = WH/GH(+rx) 3 = OR(-tx) 4 = GN(-rx)	D	2A	60V	2×2×0.25,shielded (2×2×24AWG) Blueish green, PVC, OD=5.6	Straight	2M	M1204DM-2/E301

Applications

Precision Assembly Lines - Ensures reliable Ethernet/IP communication across robotic arms and conveyor systems.
Automotive Paint Shops - Shielding maintains stable data flow in high-voltage environments.
Food and Beverage Processing - Hygienic design ensures smooth data transfer for automated bottling lines.
Industrial Welding Stations - Withstands high temperatures and interference for safety and productivity.
Smart Agriculture Systems - Provides dependable Ethernet/IP connectivity for farming applications.
Pharmaceutical Cleanrooms - Secure, shielded design supports strict environmental control.
Solar Panel Arrays - Resistant to harsh weather conditions for stable monitoring connections.
Packaging Automation - Ensures fast, reliable communication between sorting equipment.
Airport Baggage Handling - Essential for reliable data transfer in automated sorting systems.
CNC Machine Centers - Robust design ensures uninterrupted connections for precision machining.

M12 Connector Pre-assembled IE Cable for Ethernet/IP Shielded 4/8 Pin D Coding 2

Packing and Shipping

Product Packaging:

80 pcs M12 connectors per carton
Each connector is individually packaged
Packaging material is eco-friendly and recyclable

Shipping:

Ships within 5-8 business days
Shipping options include standard and expedited
Shipping rates calculated at checkout based on location and weight

M12 Connector Pre-assembled IE Cable for Ethernet/IP Shielded 4/8 Pin D Coding 3

FAQ

Q: Where is this product manufactured?

A: This product is manufactured in Guangdong, China.

Q: Does this product have any certifications?

A: Yes, this product is CE certified.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 80.

Q: Is the price of this product negotiable?

A: Yes, we will offer different price according the quantity.

Q: How is this product packaged?

A: This product is packaged in polybag packing, export carton.

Q: What is the delivery time for this product?

A: The delivery time for this product is 5-8 working days for MOQ 80pcs, if more quantity, please contact with seller.

Q: What payment terms are accepted for this product?

A: The payment terms accepted for this product are T/T, Western Union, and MoneyGram.

Q: What is the supply ability of this product?

A: The supply ability of this product is 100000 pieces per month.
